Outbound Messaging Overview

Outbound Messaging is the delivery engine of ASAPIO: it listens to SAP business changes, builds payloads, and dispatches events to your configured target platform with enterprise-grade control over retries, sequencing, and transformation.

Concept

Every outbound process follows the same conceptual chain, regardless of connector or event type:

Guided Step-by-Step

Configuration Paths: SAP GUI and Event Studio

ASAPIO supports both implementation styles. They use the same backend object model and can coexist in one landscape.

On this page: SAP GUI = classic SAP GUI transactions only  ·  Event Studio = available in Event Studio's UI  ·  both pills together = supported in either, with any differences called out in the text.

Minimal Setup

The smallest set of steps to get one outbound object delivering messages end to end. Everything in Advanced / Optional Configuration further down is a refinement you can add later if you need it.

Trigger Categories SAP GUIEvent Studio

Available trigger categories include SAP Business Object (BOR) events, RAP events, BTEs, Change Documents, IDoc events, and custom ABAP trigger calls.

Normal event linkages to BOR and RAP events can easily be set up in Event Studio's Events page — see the RAP Events guide for the full list of predefined RAP events. Filtering logic such as Check FM or BAdI-based filtering (see Filtering Events) still requires SAP GUI.

SAP Business Object Events SAP GUI

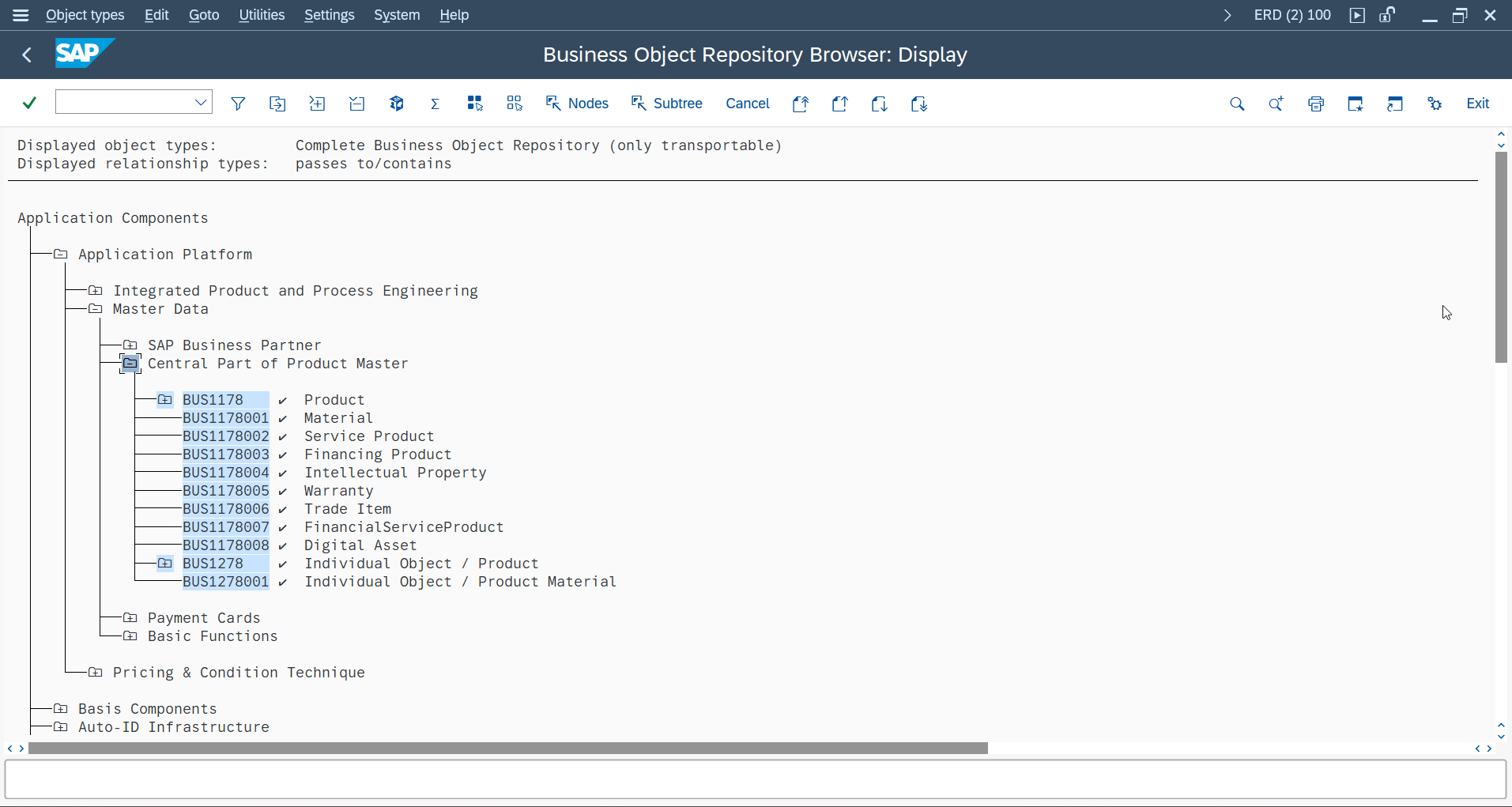

Use transaction SWO3 to inspect available objects and events. Typical objects:

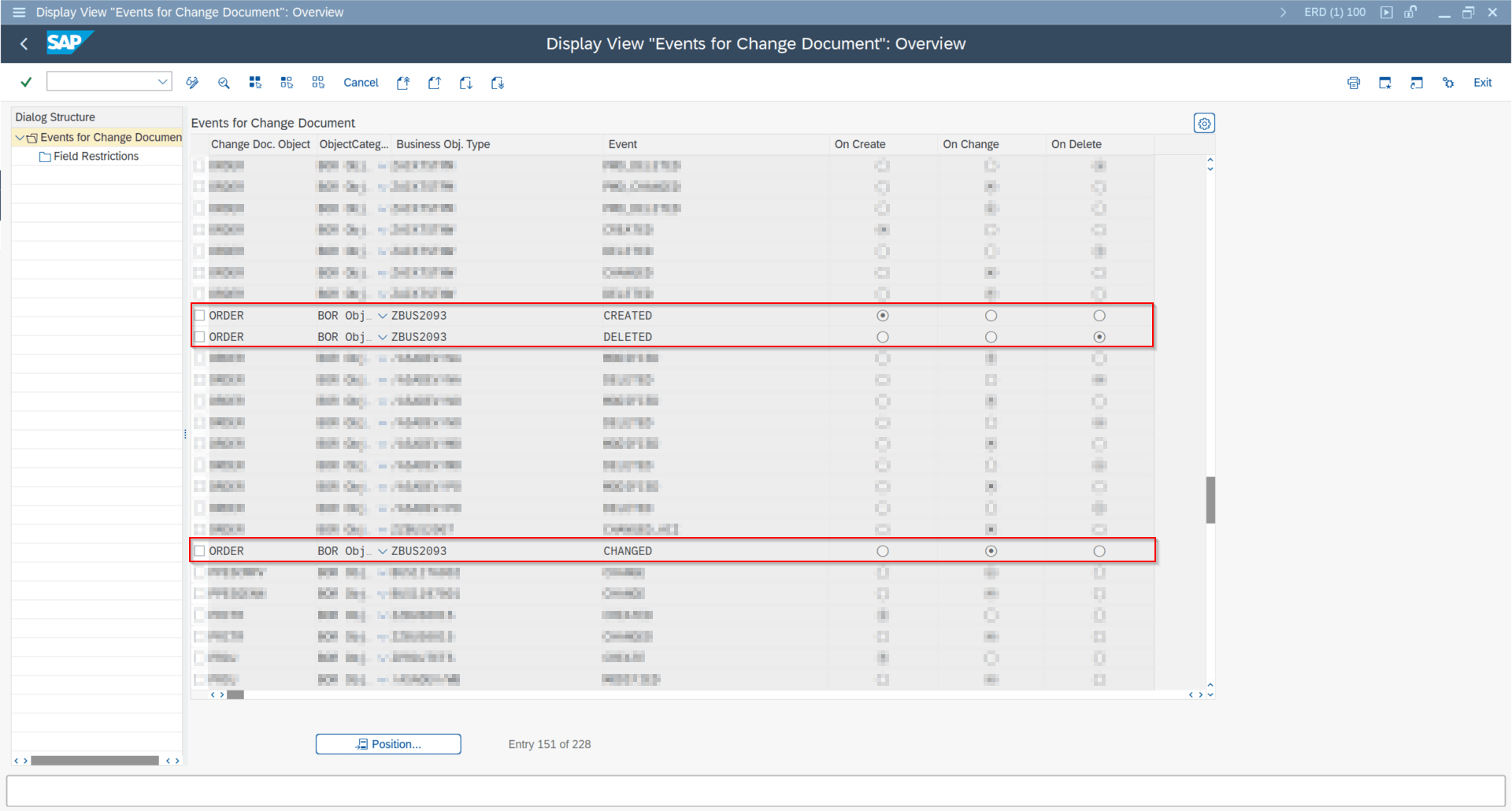

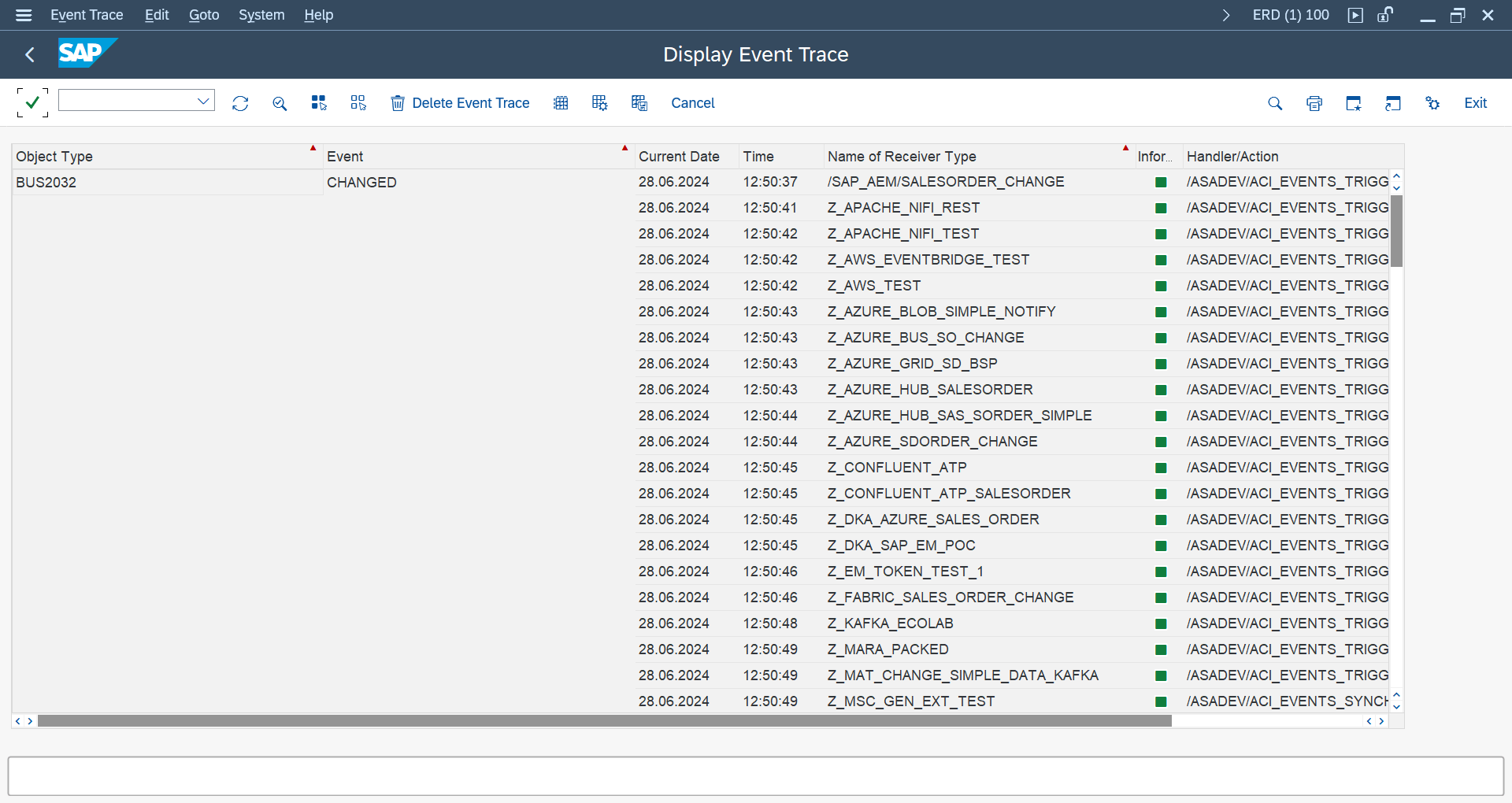

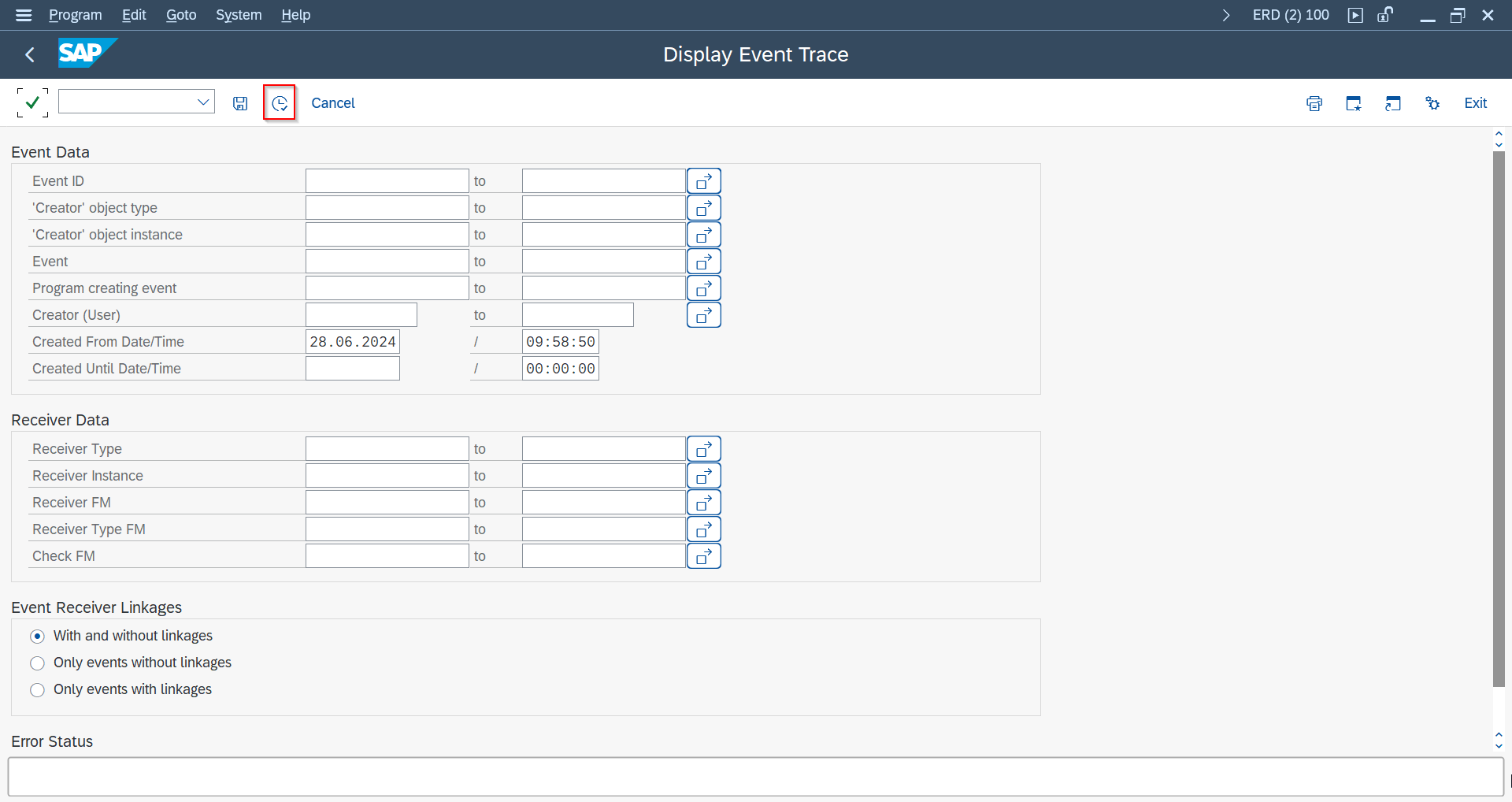

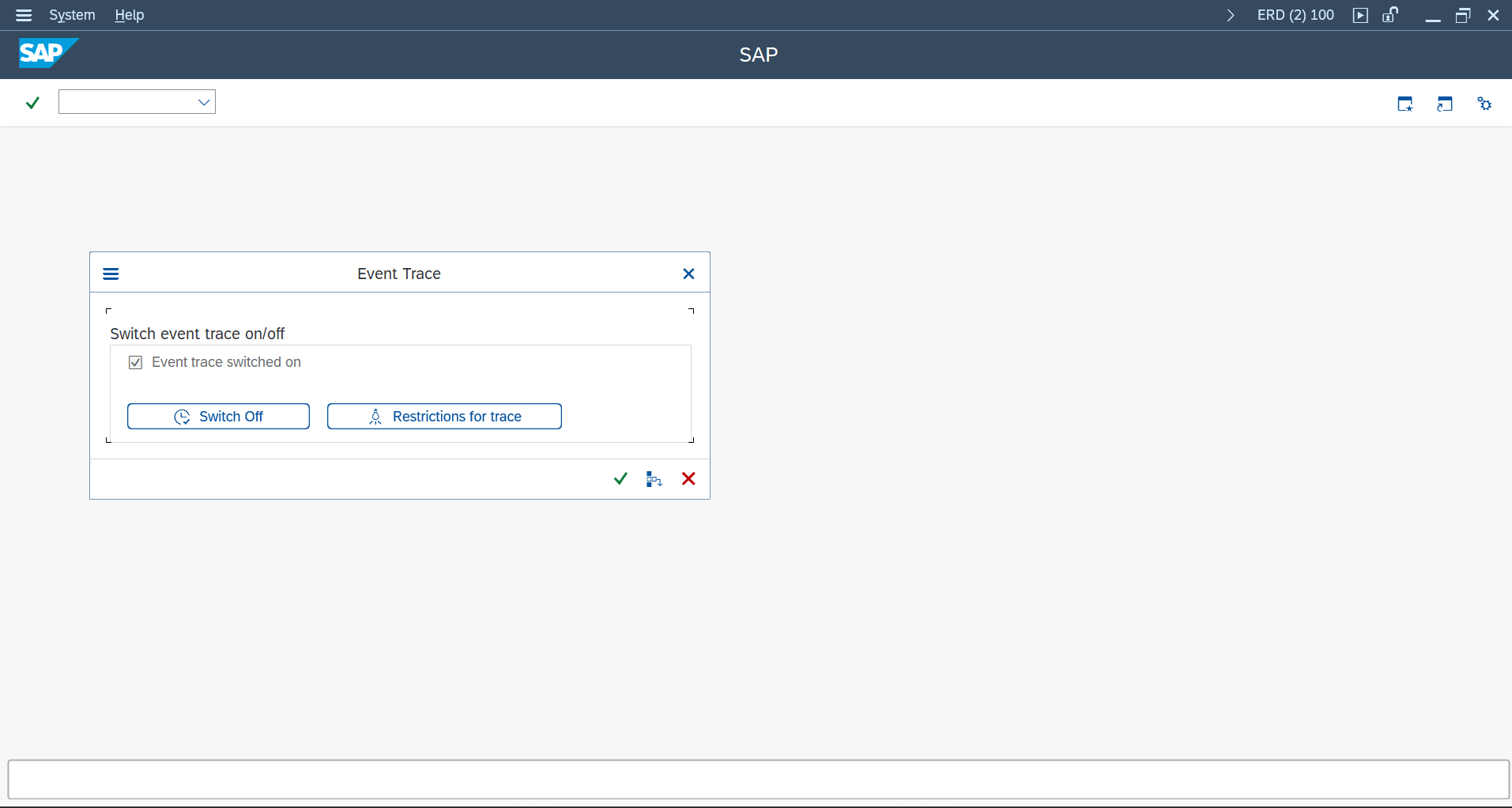

To discover event triggers, enable traces in SWELS and inspect events in SWEL after executing representative business transactions.

1. SWELS 2. SWEL trace 3. SWEL detail

← Prev Next →

Once you've identified the Business Object and event here, set up the actual event linkage in Event Studio's Events page or via SWE2 (see Simple Notifications below) — see Trigger Categories above.

Create Message Type SAP GUI

Only needed for classic ALE message-type-based distribution (for example certain IDoc scenarios). Simple Notifications and Message Builder below don't require this step.

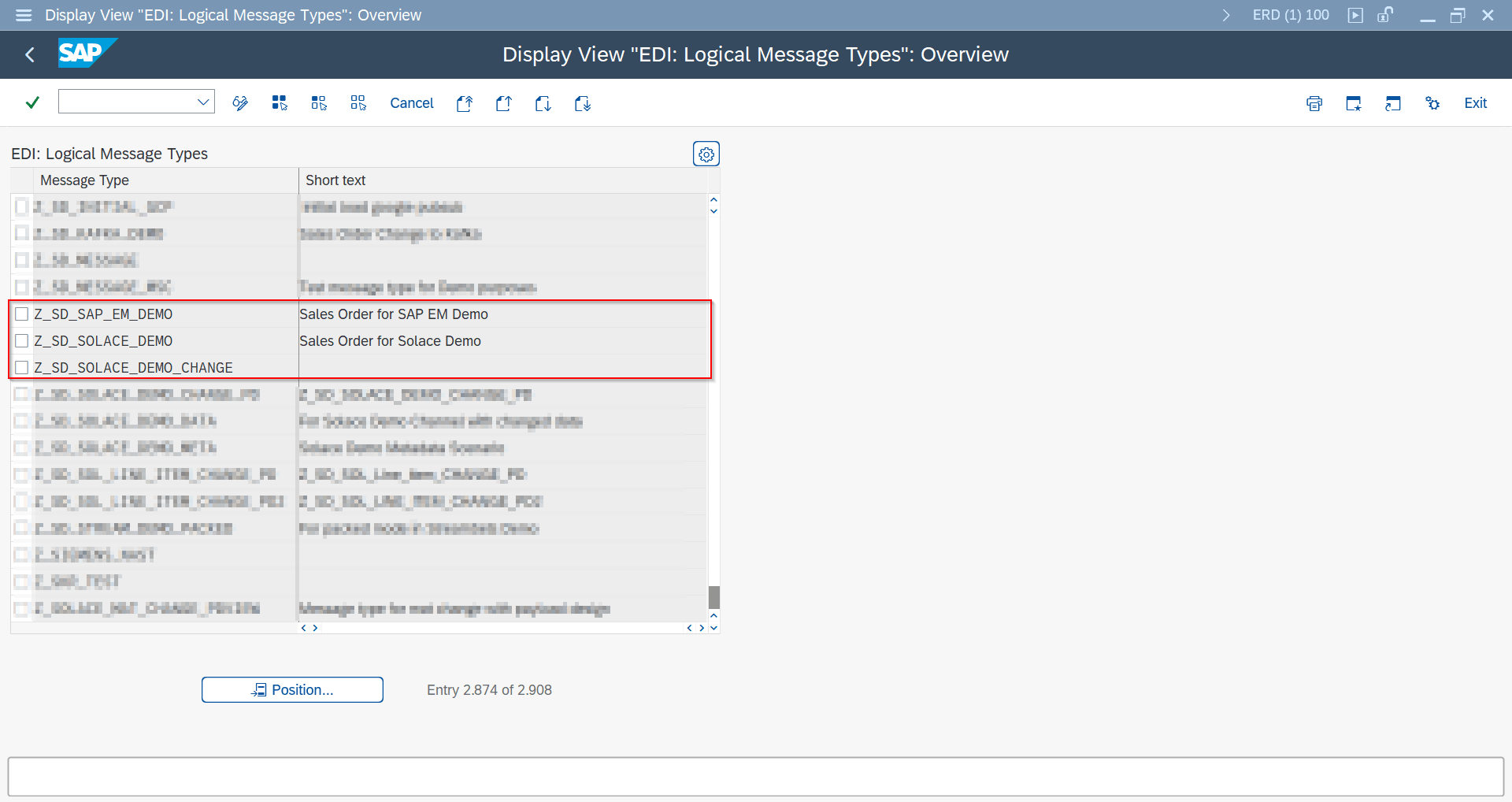

1. Create message type in WE81.

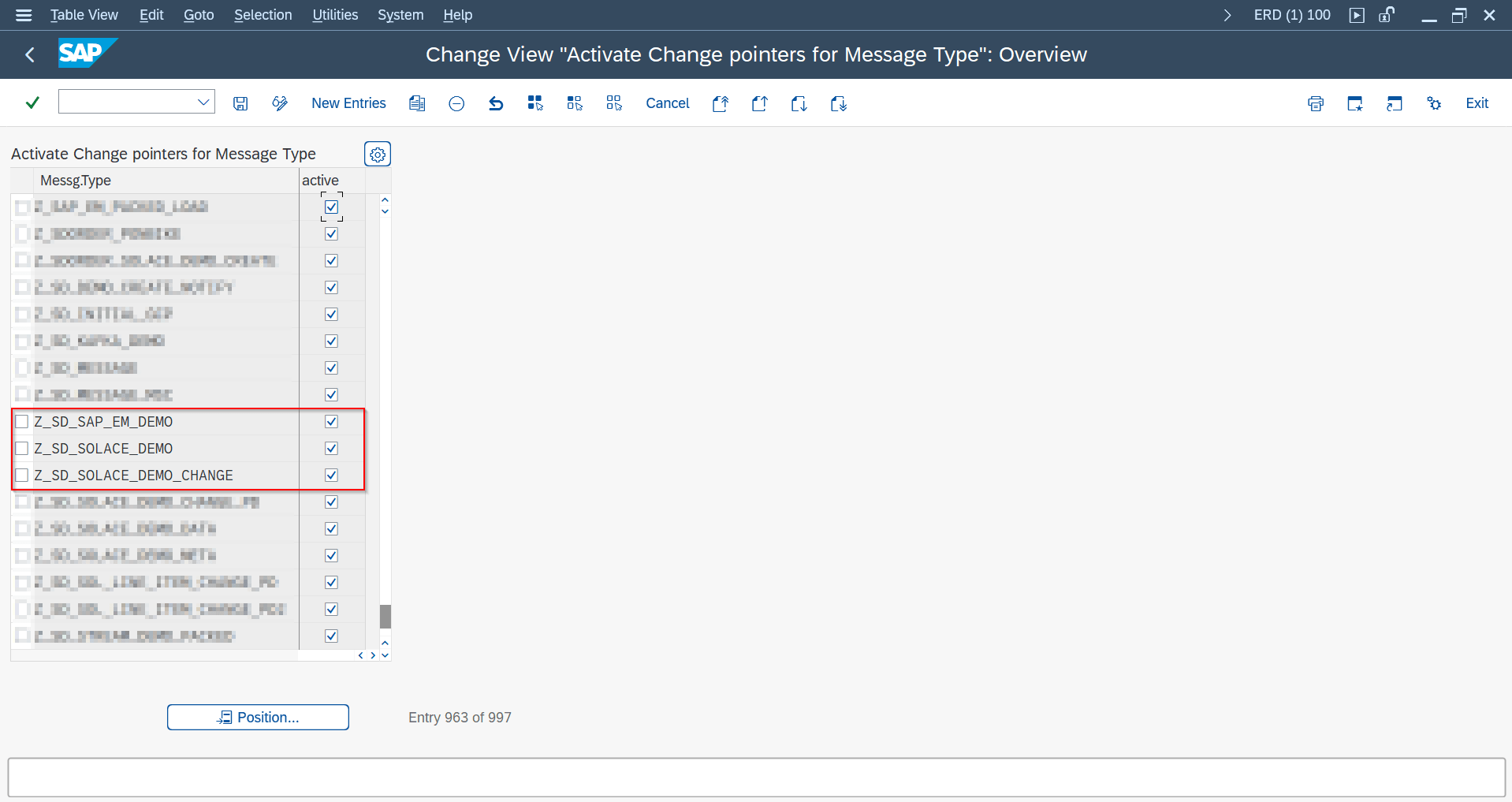

2. Activate message type in BD50.

1. WE81 2. BD50

← Prev Next →

Simple Notifications SAP GUI

The simplest way to notify a target platform that a business event happened, without building a structured payload.

1. Create outbound object in /ASADEV/ACI_SETTINGS with extraction FM /ASADEV/ACI_SIMPLE_NOTIFY.

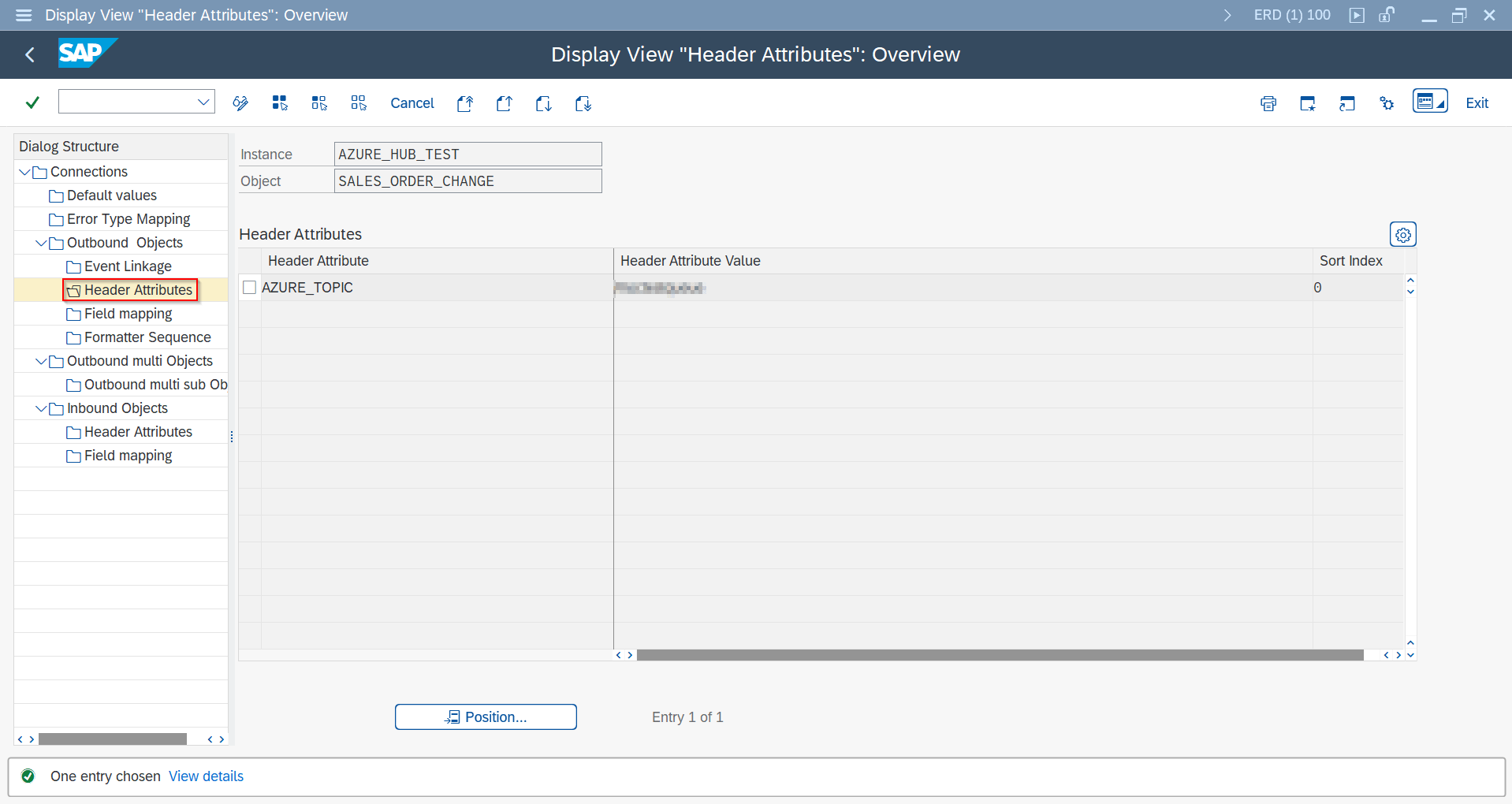

2. Set endpoint header attribute (for example AZURE_TOPIC).

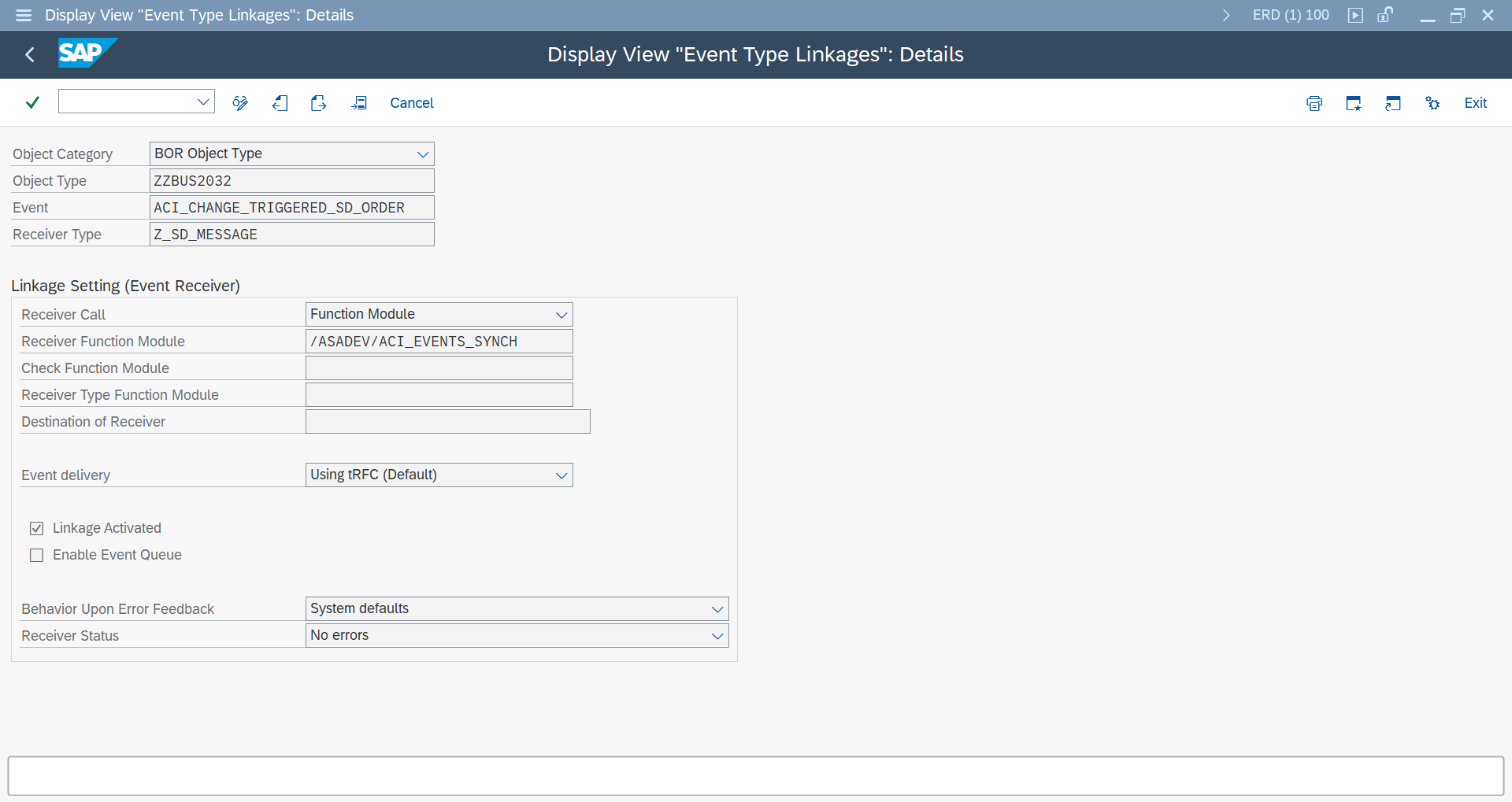

3. Create SWE2 linkage to /ASADEV/ACI_EVENTS_TRIGGER.

Assigning the /ASADEV/ACI_SIMPLE_NOTIFY extraction FM is what defines this recipe, and that assignment is only possible in SAP GUI today — see Creating Objects in Event Studio below for the Event-Studio-native alternative.

1. Outbound object 2. Header attribute 3. SWE2 linkage

← Prev Next →

Message Builder (DB/CDS View Payload) SAP GUI

For a structured payload sourced from a database or CDS view.

1. Create extraction view in SE11 or CDS tooling.

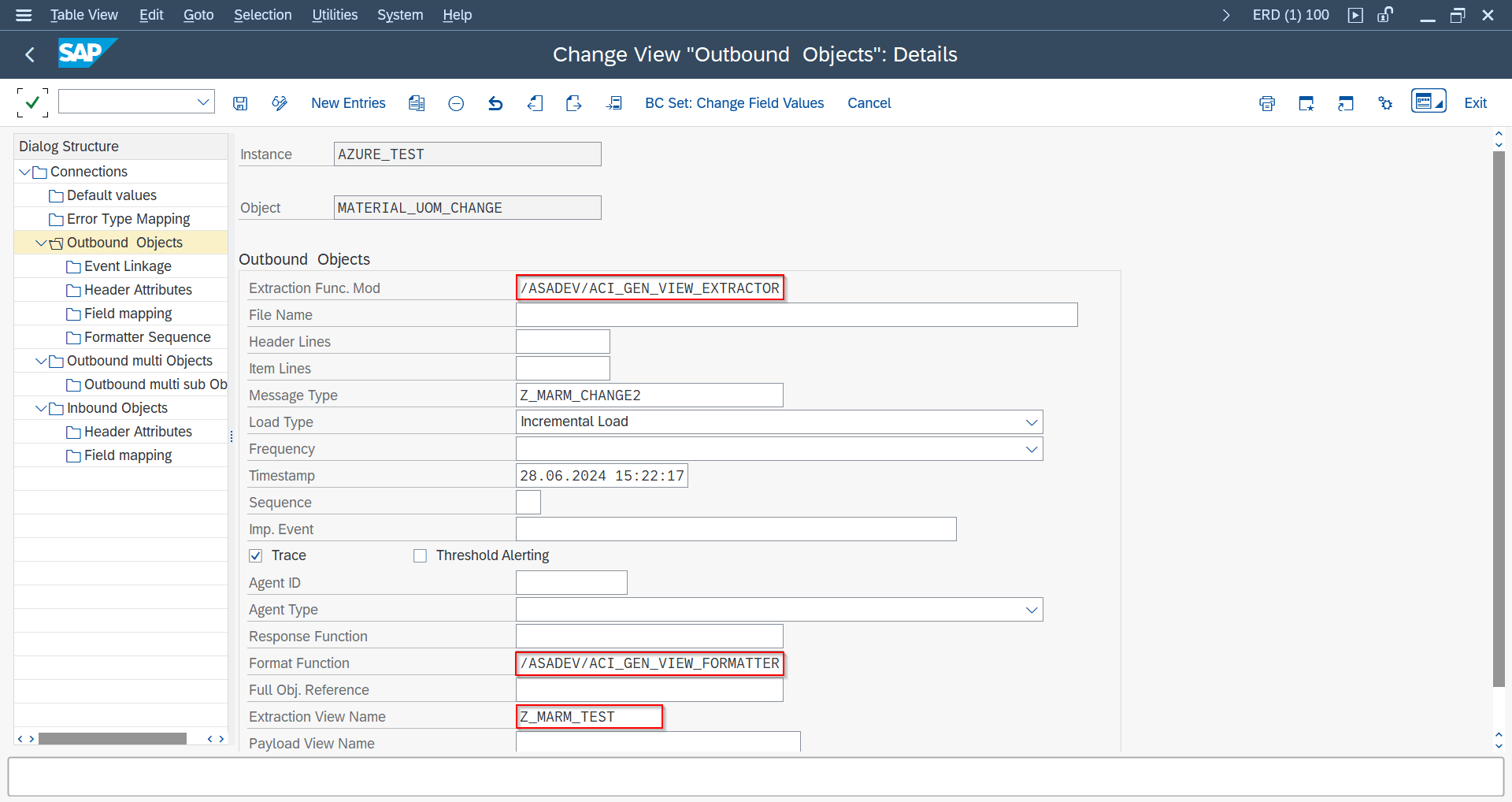

2. Configure outbound object with /ASADEV/ACI_GEN_VIEW_EXTRACTOR and /ASADEV/ACI_GEN_VIEW_FORM_CB.
3. Maintain connector-specific and optional global header attributes.

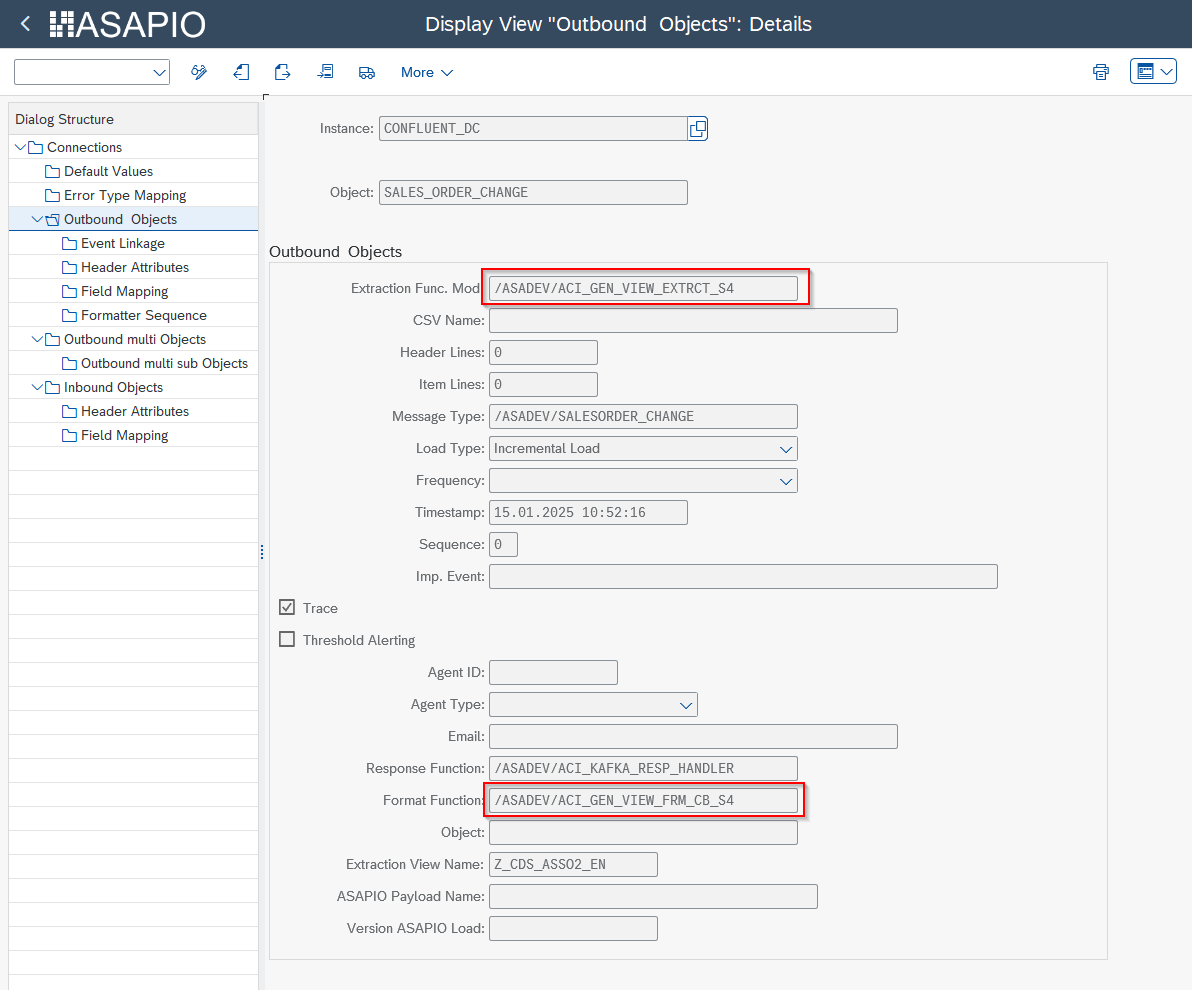

Event Studio assigns the /ASADEV/ACI_GEN_VIEW_EXTRACTOR / _FORM_CB function modules automatically — see Creating Objects in Event Studio below for the Event-Studio-native alternative.

Header attribute names and expected values are connector-specific — see your connector's guide: Azure, Apache Kafka, Solace, Confluent, SAP Advanced Event Mesh, Google Pub/Sub, Microsoft Fabric (Open Mirroring), or AWS.

1. DB view 2. Outbound object 3. Header attributes 4. CP fields (opt.) 5. SWE2 linkage 6. CDS View Entity

← Prev Next →

Creating Objects in Event Studio Event Studio

Event Studio has its own native path to create an outbound object and maintain its header attributes, for any Load Type it supports (including Packed Load) — through the Interfaces and Data Catalog pages:

1. Create the outbound object: open Interfaces and click Create Interface. Set the Connection and Load Type.
2. Maintain Header Attributes: on the same Create Interface screen (or the Data Catalog deployment page for standard objects), fill in the Header Fields Table — any header attribute name/value can be entered there, e.g. AZURE_TOPIC or ACI_ADD_LOGSYS.
3. Deploy: click Create/Deploy to activate. Existing deployments can be updated later from the interface's Active Instances table via the Interface Deployment Page.

Current limitation: exchanging the extraction or formatter function module itself (for example to /ASADEV/ACI_SIMPLE_NOTIFY or /ASADEV/ACI_GEN_VIEW_EXTRACTOR/_FORMATTER, as used by Simple Notifications and Message Builder above) is not yet possible from Event Studio — those two recipes still require maintaining the object directly in SAP GUI (/ASADEV/ACI_SETTINGS).

Advanced / Optional Configuration

Everything below is an optional refinement — alternate trigger sources, event filtering, payload transformation, high-volume load strategies, retry tuning, and custom development. Most outbound objects only need Minimal Setup above.

Business Transaction Events (BTE) SAP GUI

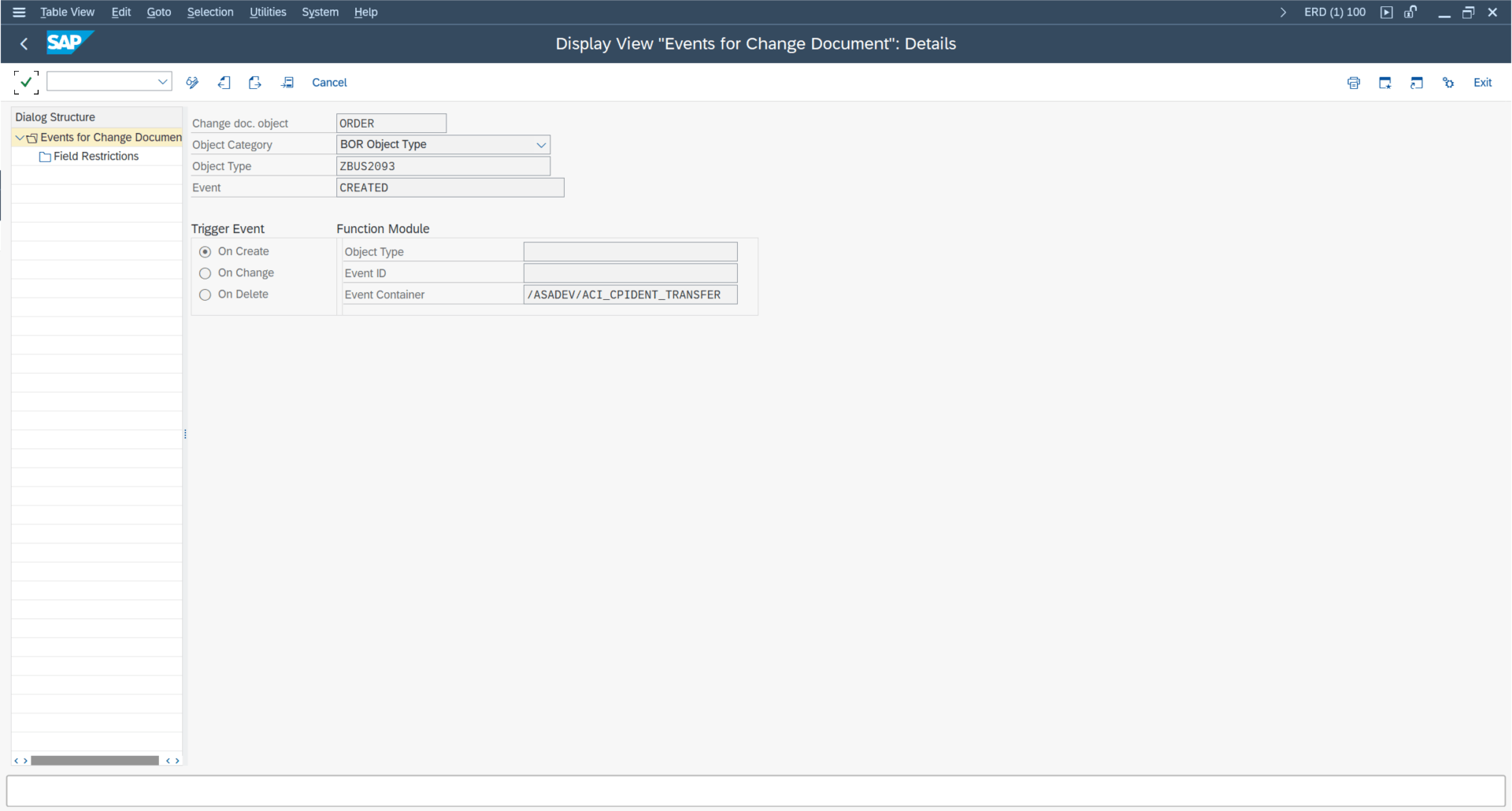

For modules where BOR events are not triggered directly, use BTE integration in FIBF:

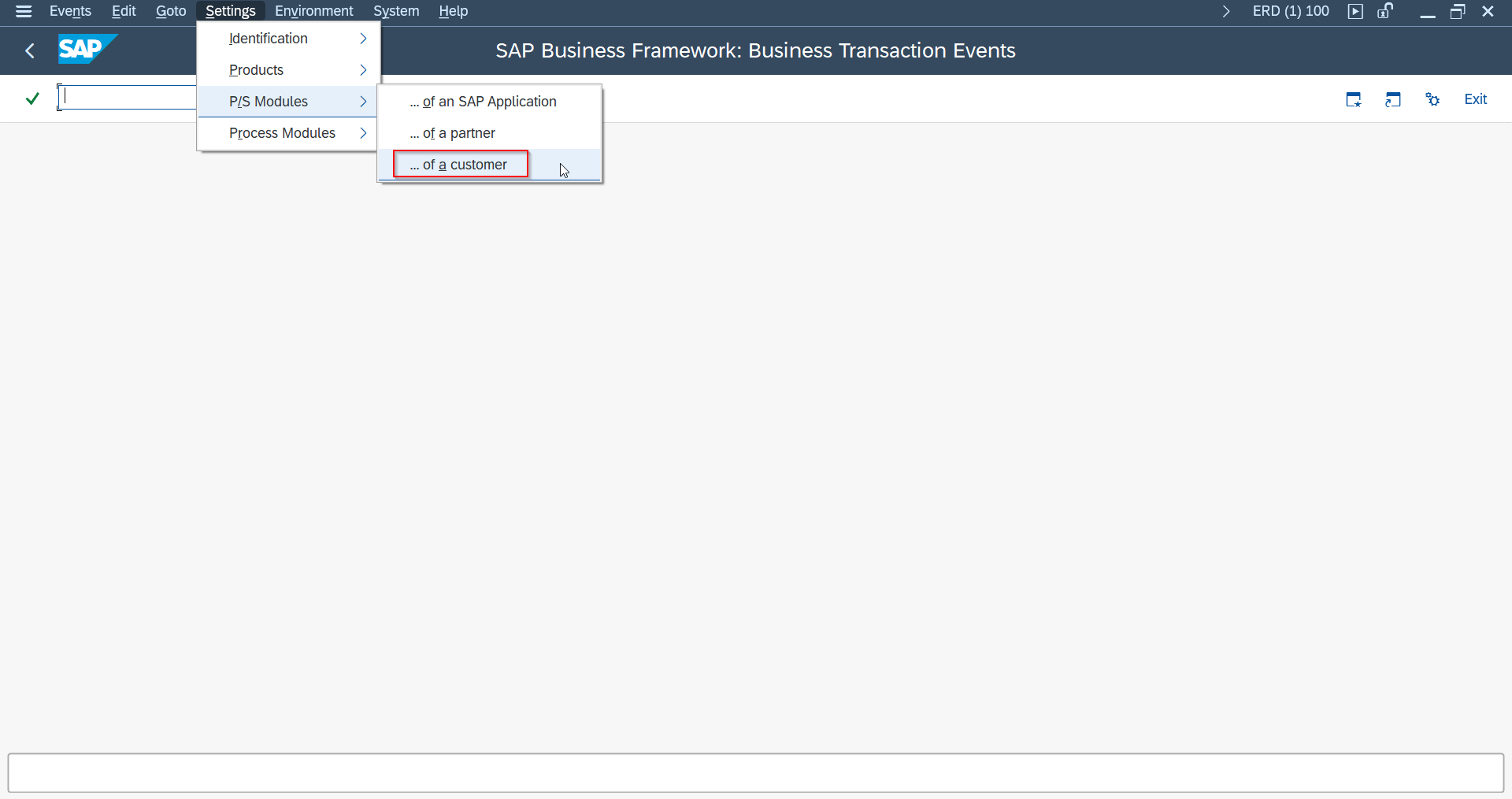

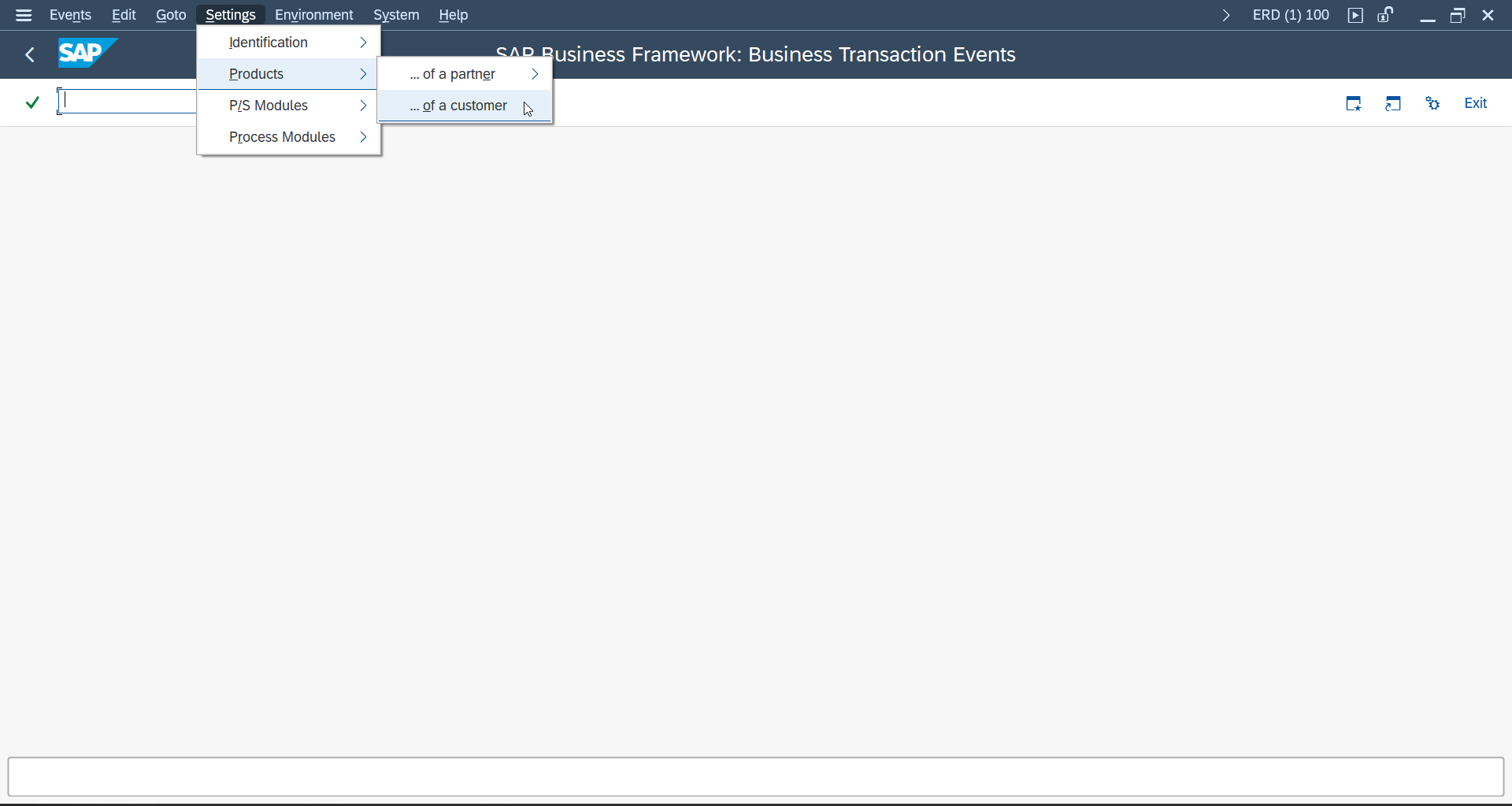

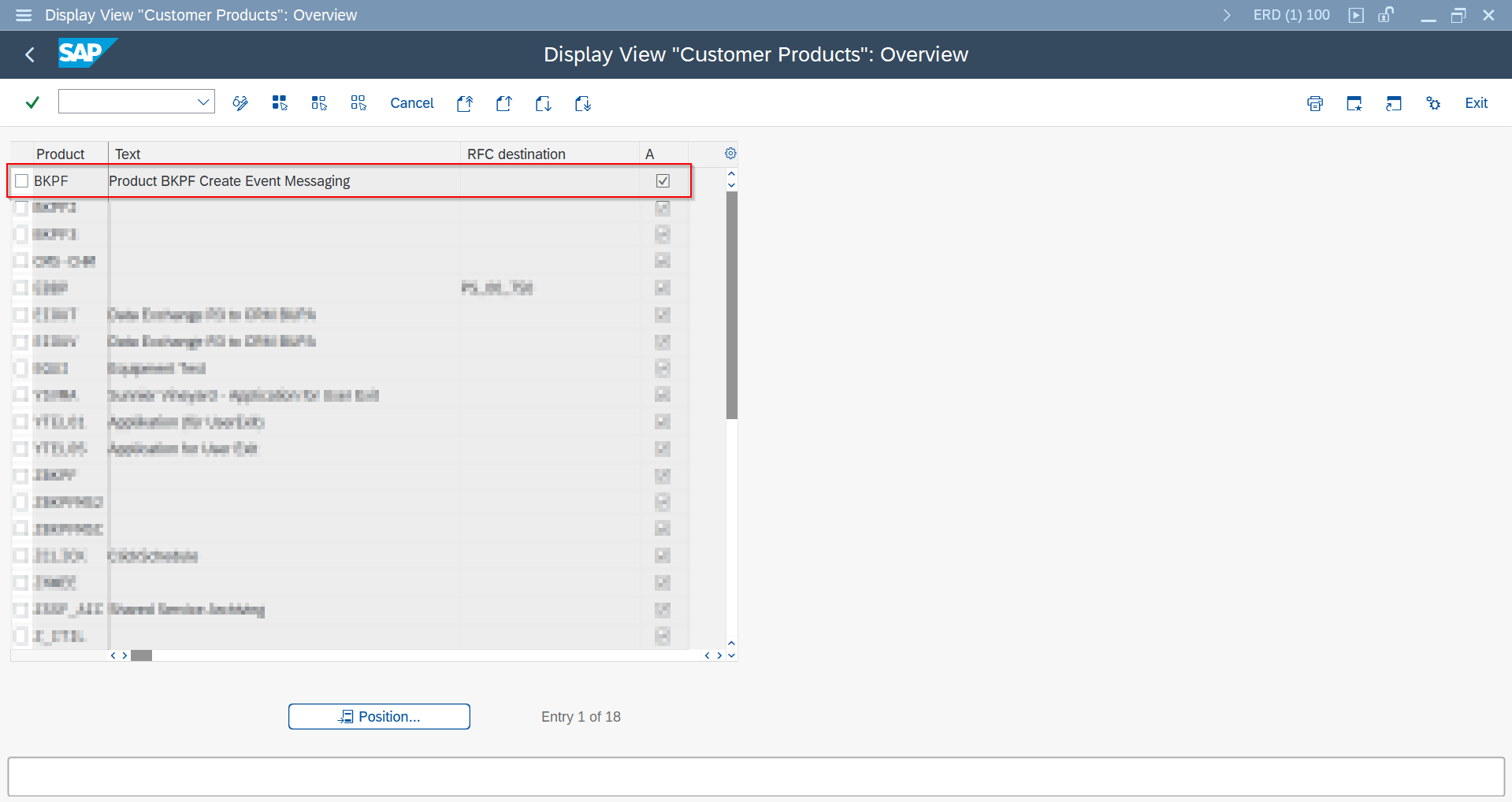

1. Create Product (Settings -> Products).
2. Copy sample function module for the BTE and implement trigger logic.
3. Register FM in P/S Modules customizing.

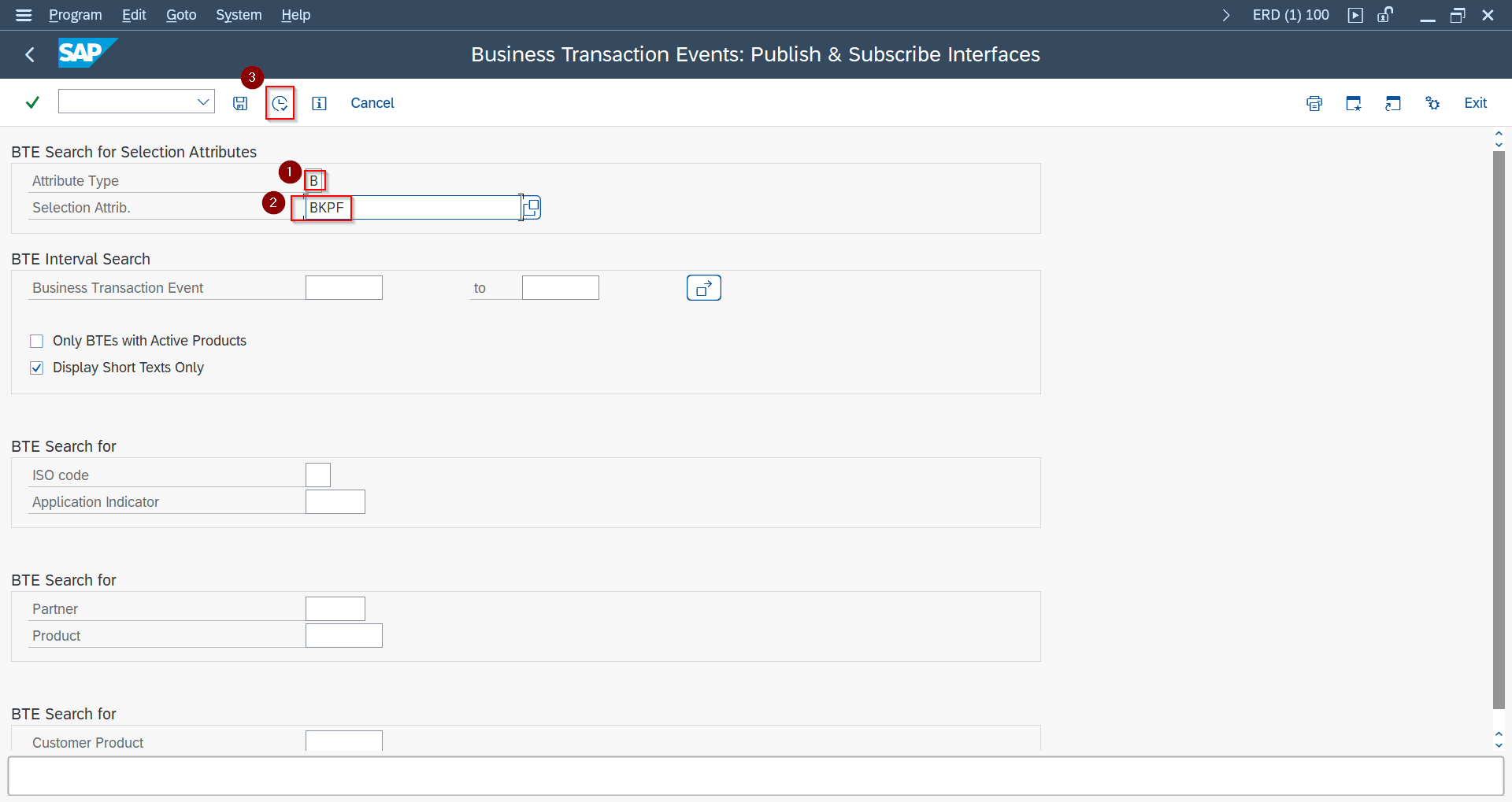

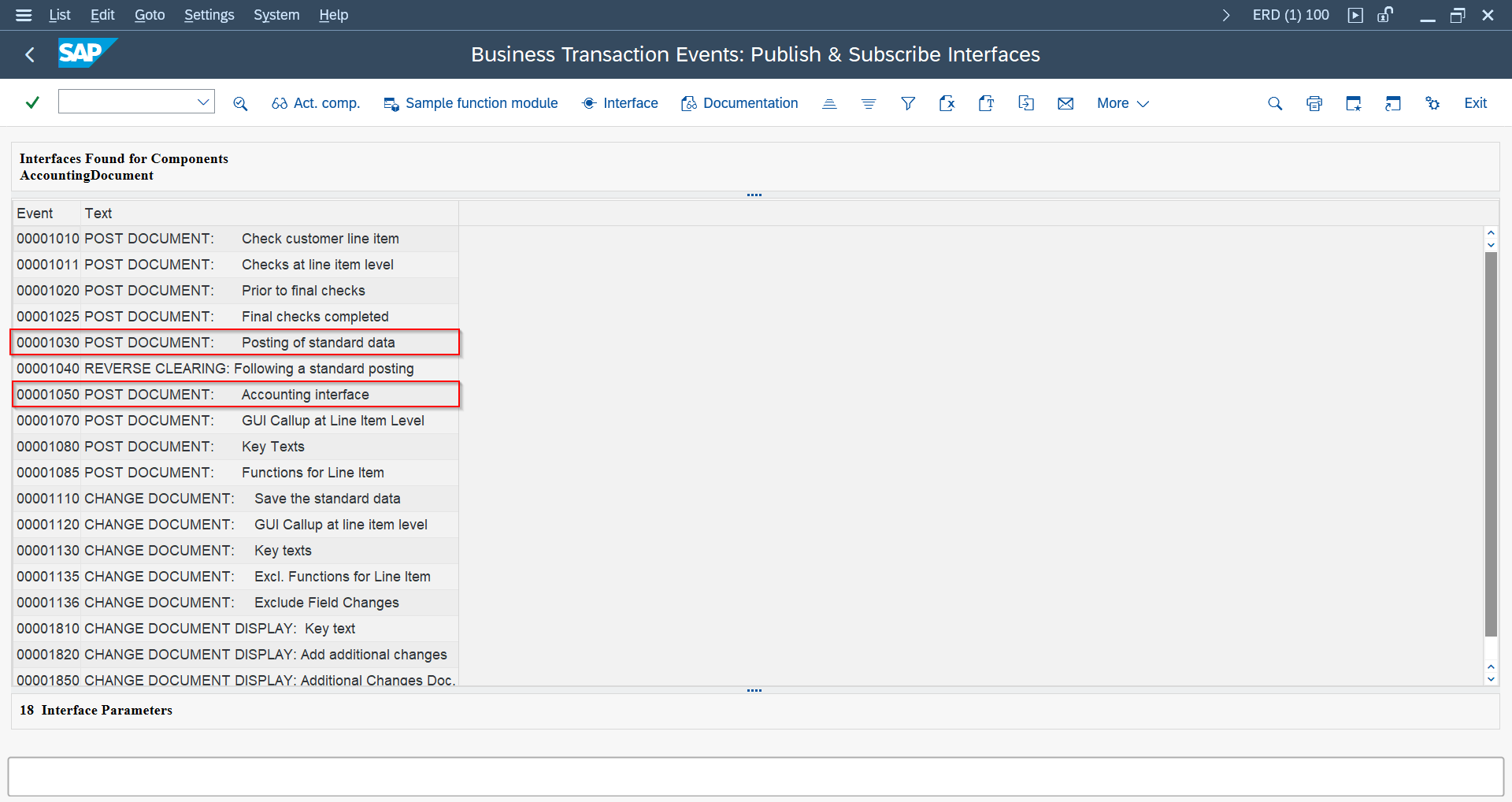

1. Info System 2. Search BKPF 3. BTEs found 4. Create Product 5. Product detail 6. Copy sample FM 7. Register FM

← Prev Next →

Filtering Events

Refine which triggered events actually result in a message — none of this is required for a basic setup.

Standard Check FM SAP GUI

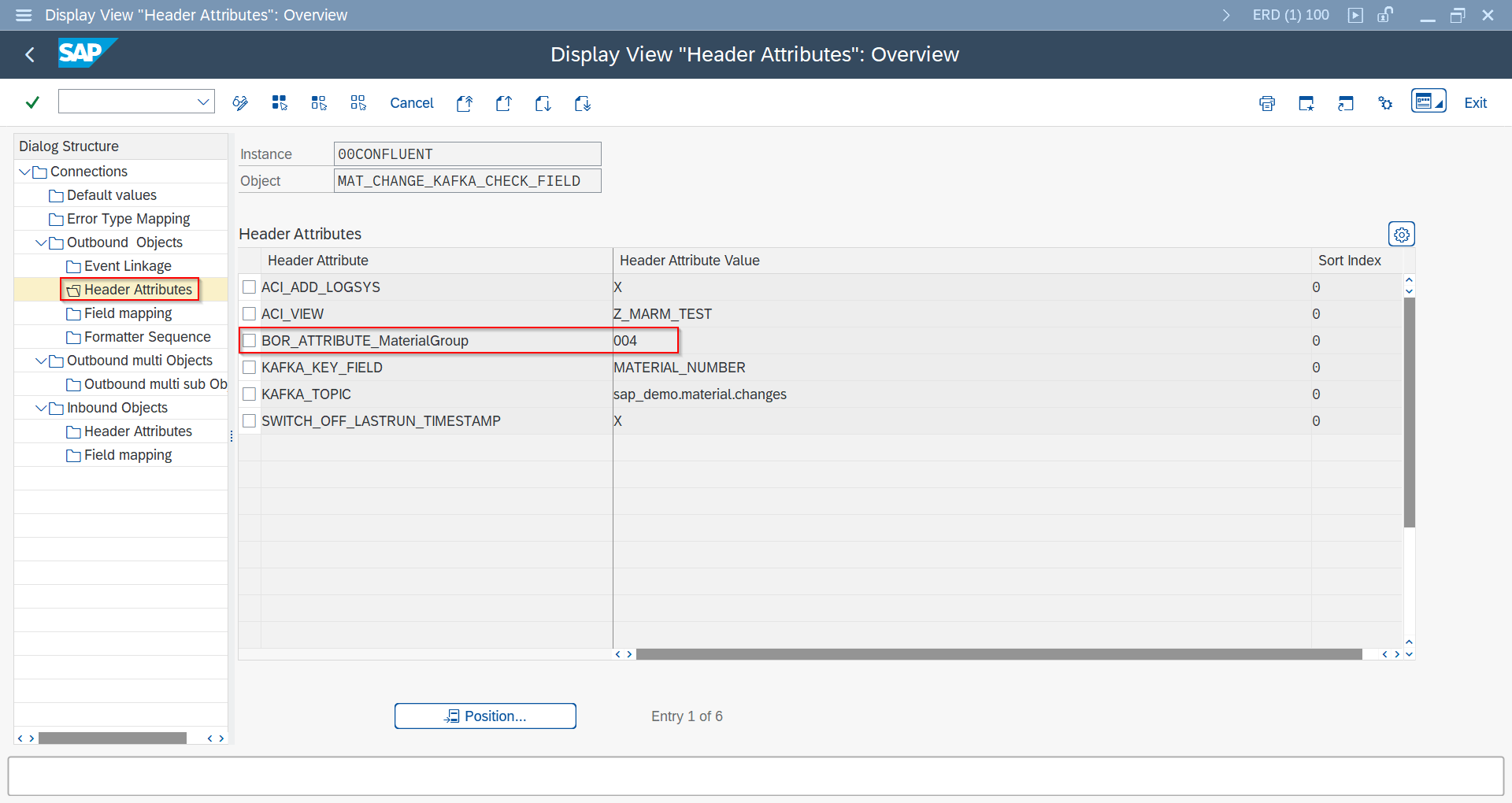

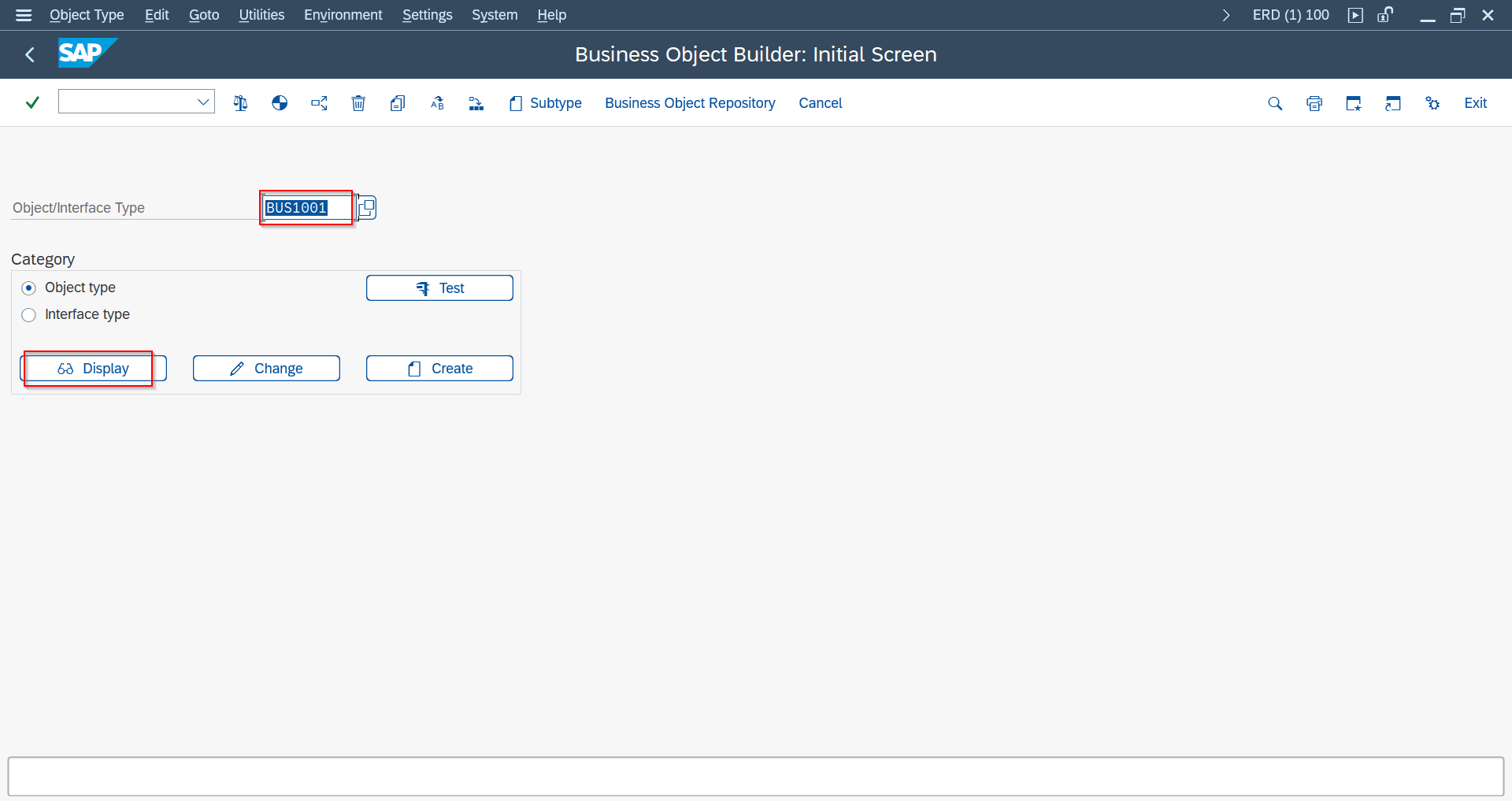

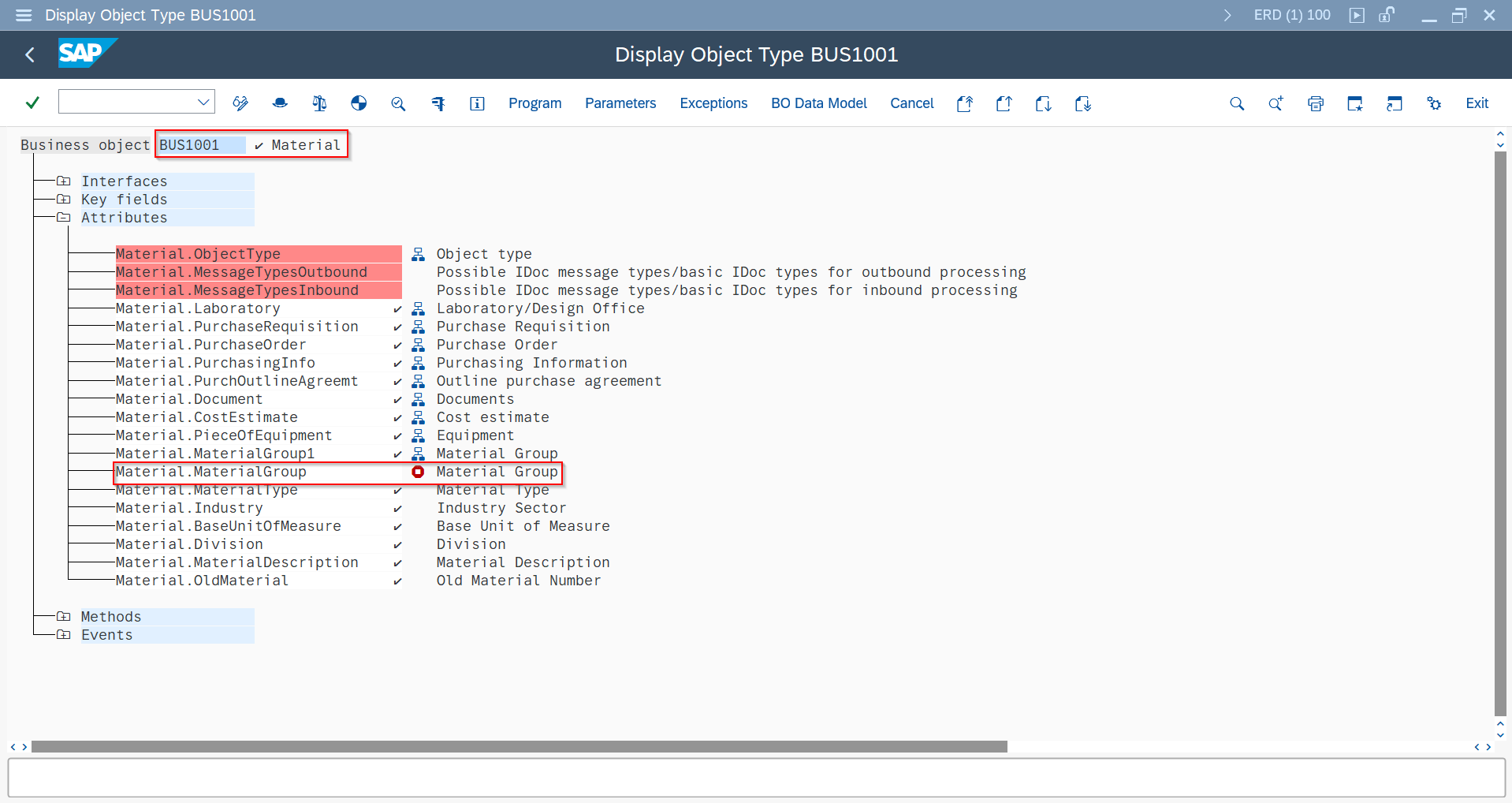

Use /ASADEV/ACI_EVENTS_CHECK and maintain BOR attribute-based header attributes (for example BOR_ATTRIBUTE_MaterialGroup).

1. SWO1 attribute 2. Header Attribute 3. Example filter 4. SWE2 linkage

← Prev Next →

Custom Check FM SAP GUI

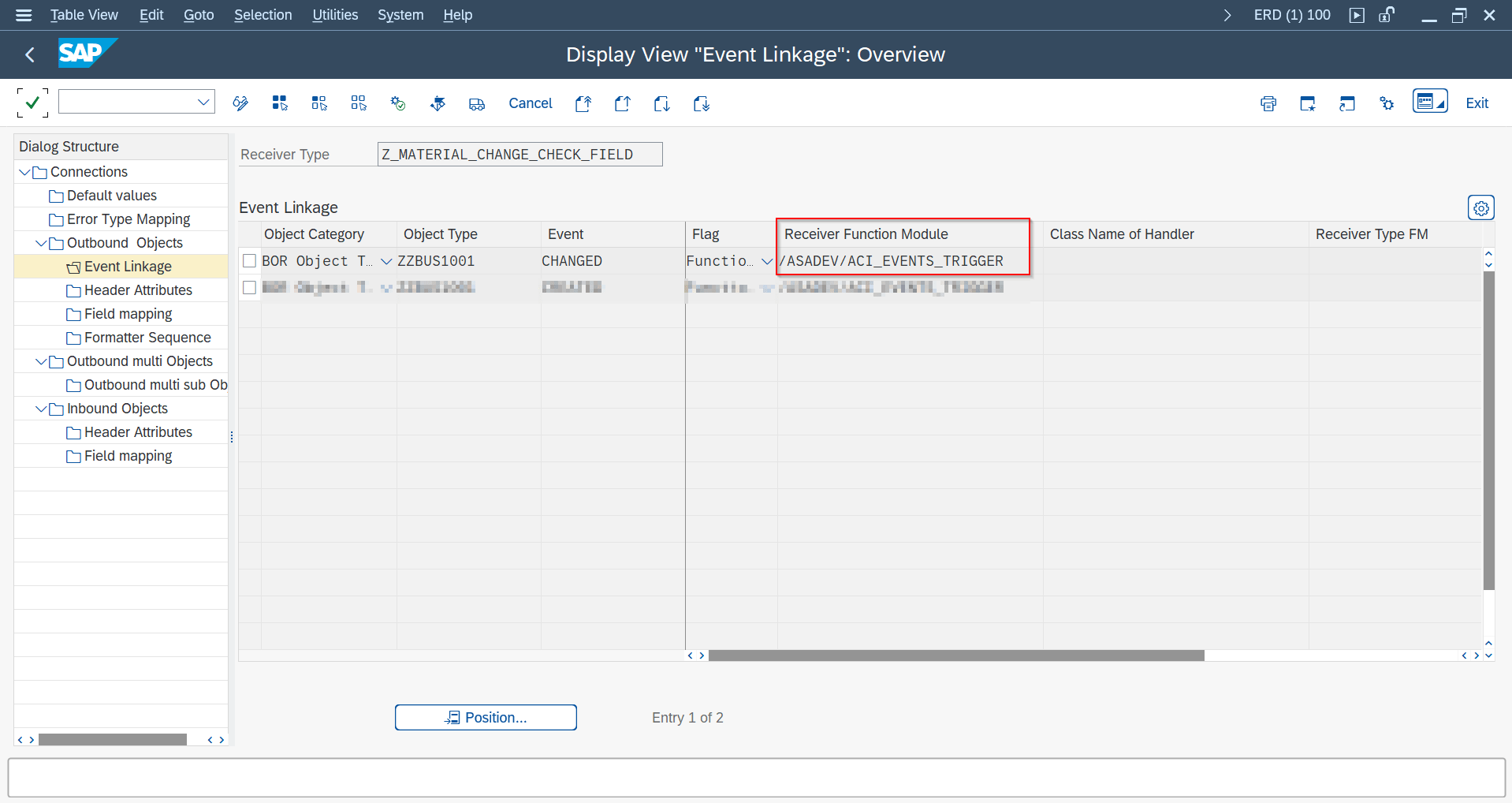

Create custom FM with same interface as standard check FM and maintain it in Event Linkage.

BAdI-Based Filtering SAP GUI

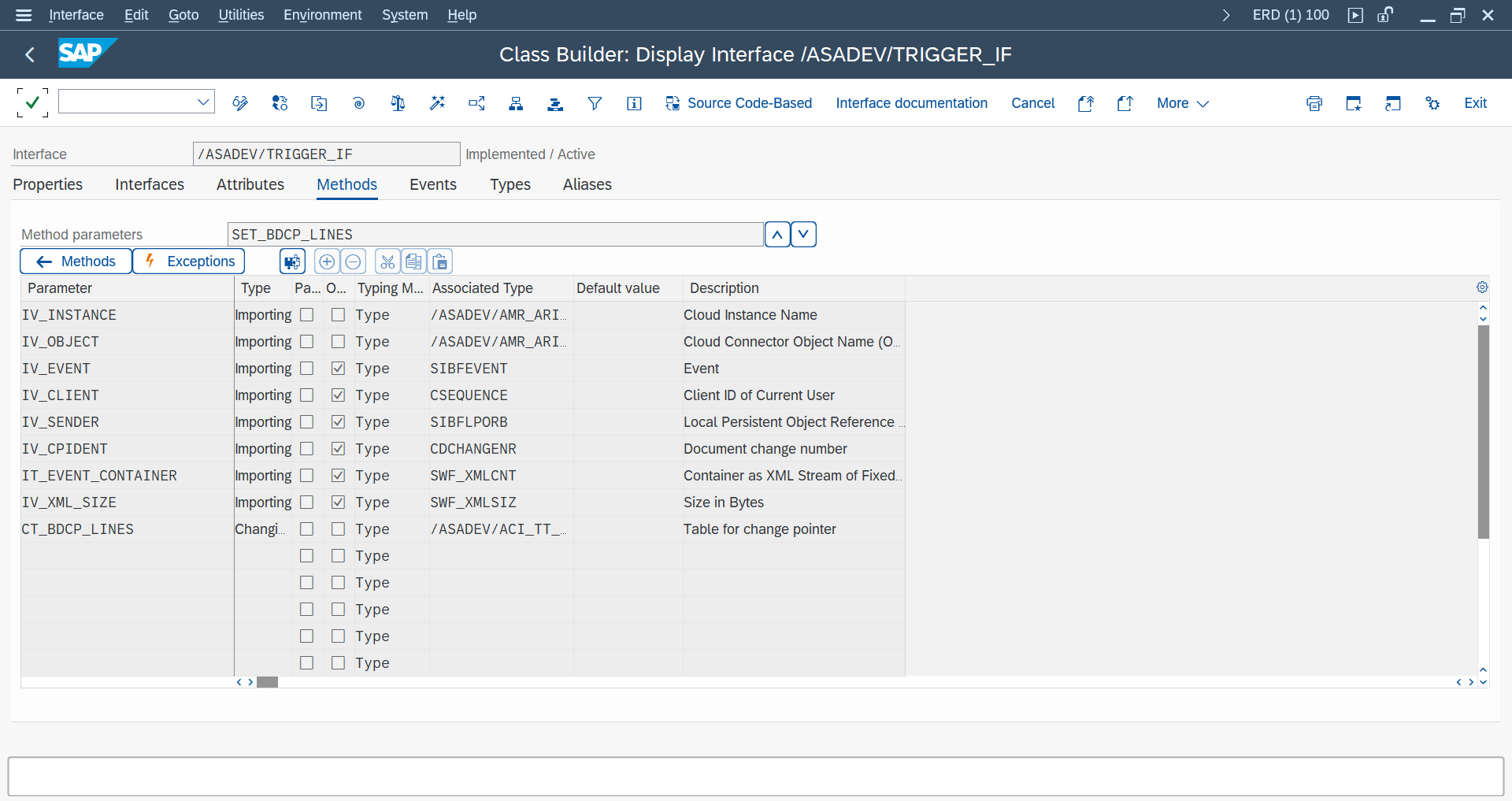

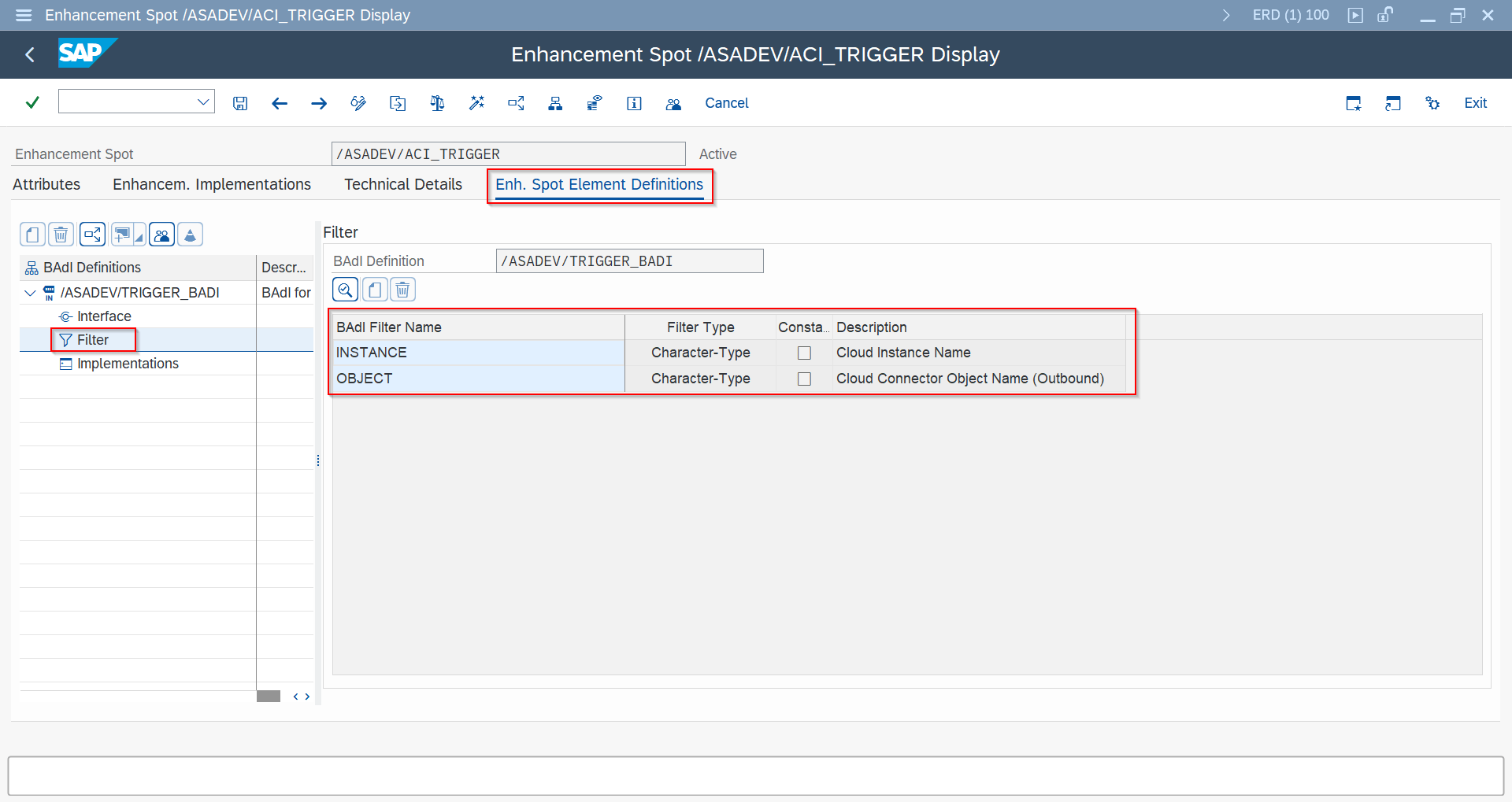

Implement /ASADEV/TRIGGER_BADI method /ASADEV/TRIGGER_IF~SET_BDCP_LINES to modify/clear change pointer lines before processing.

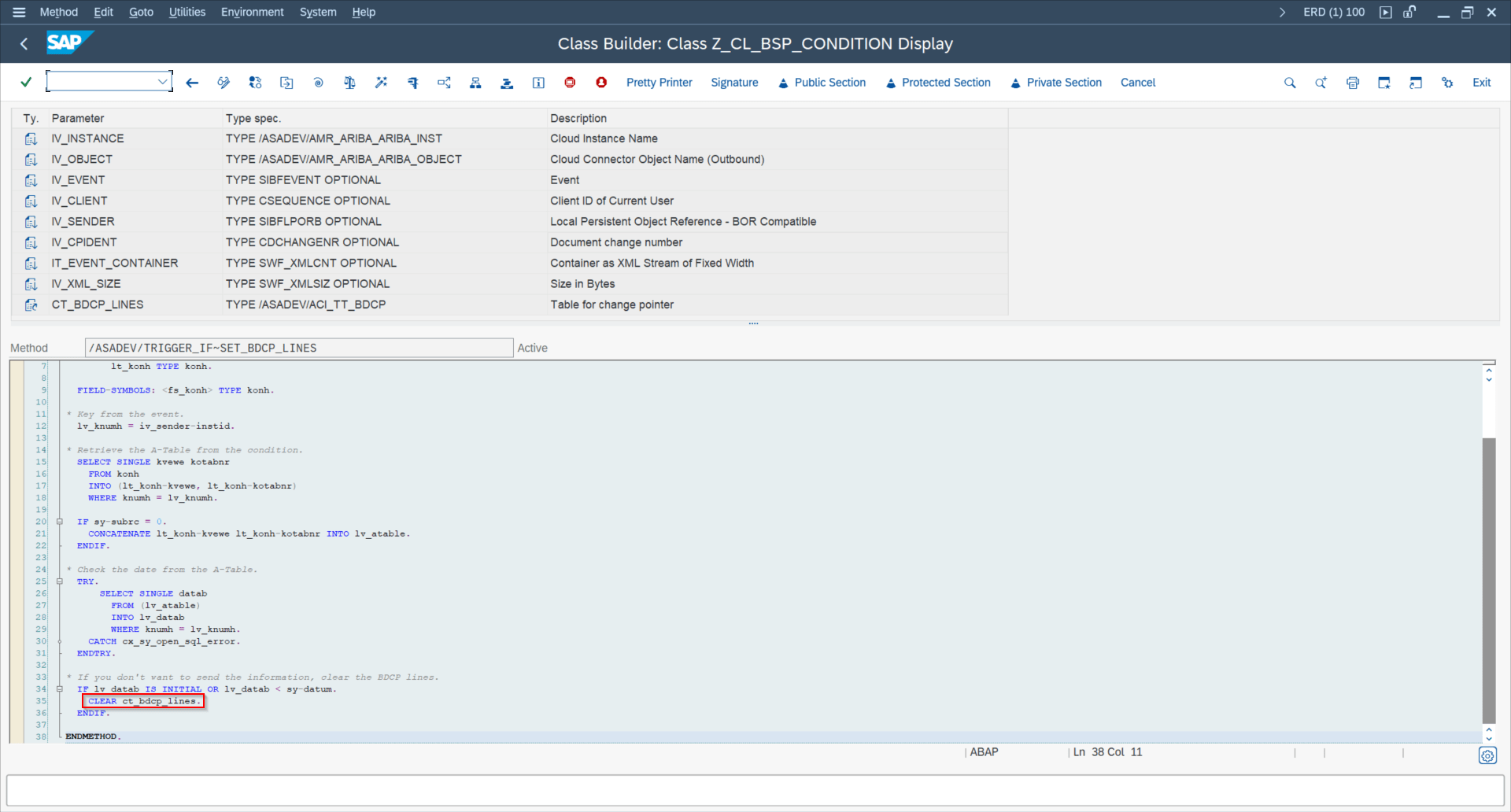

1. Filter logic 2. Filter values 3. Add implementation

← Prev Next →

Payload Designer Where Clause SAP GUI

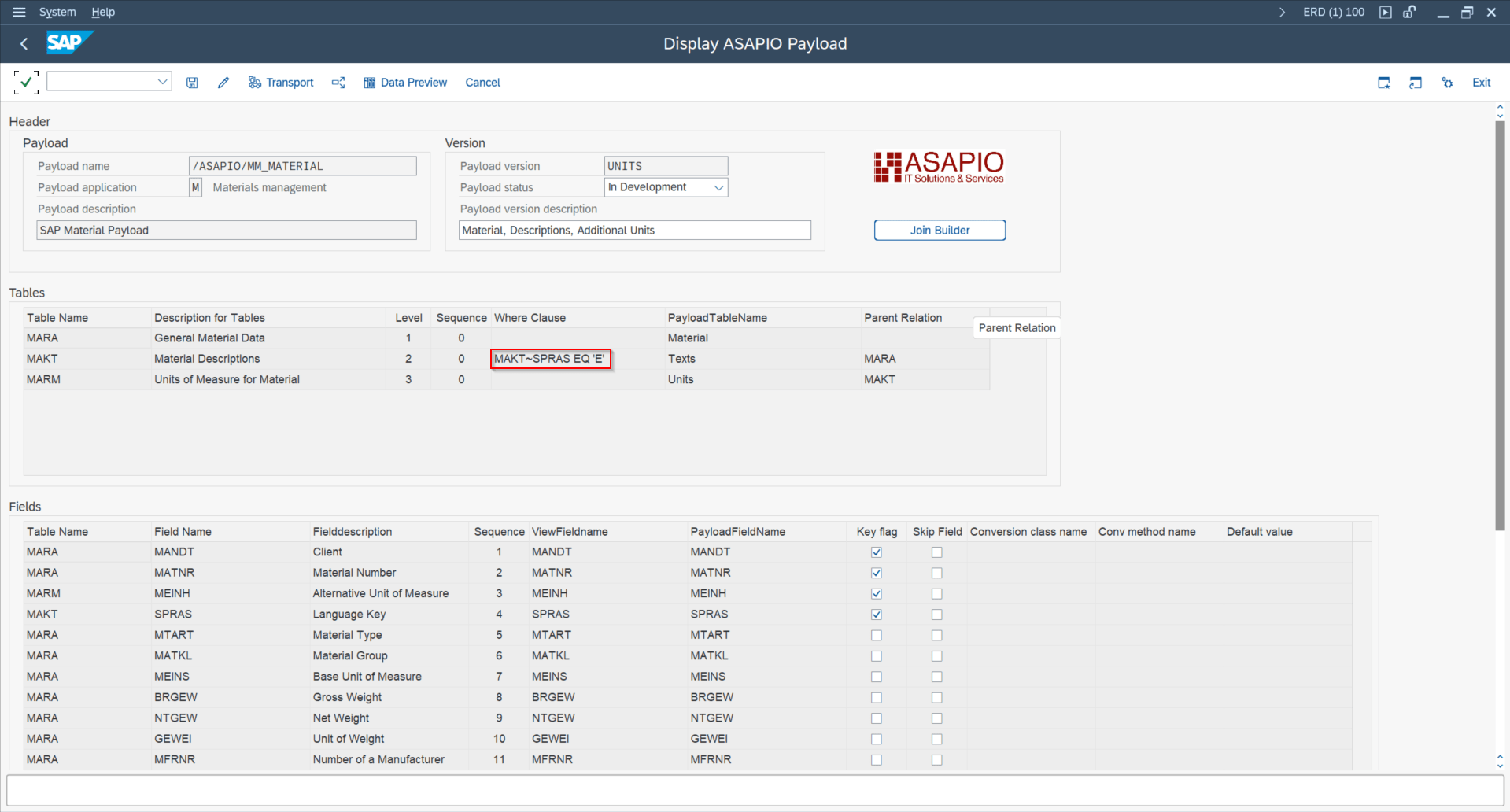

For extraction-level filtering, use where conditions in Payload Designer.

Reachable from Event Studio's Data Catalog via the Payload link on any object tile, which opens Payload Designer in SAP GUI for HTML.

How to Change the Payload SAP GUIEvent Studio

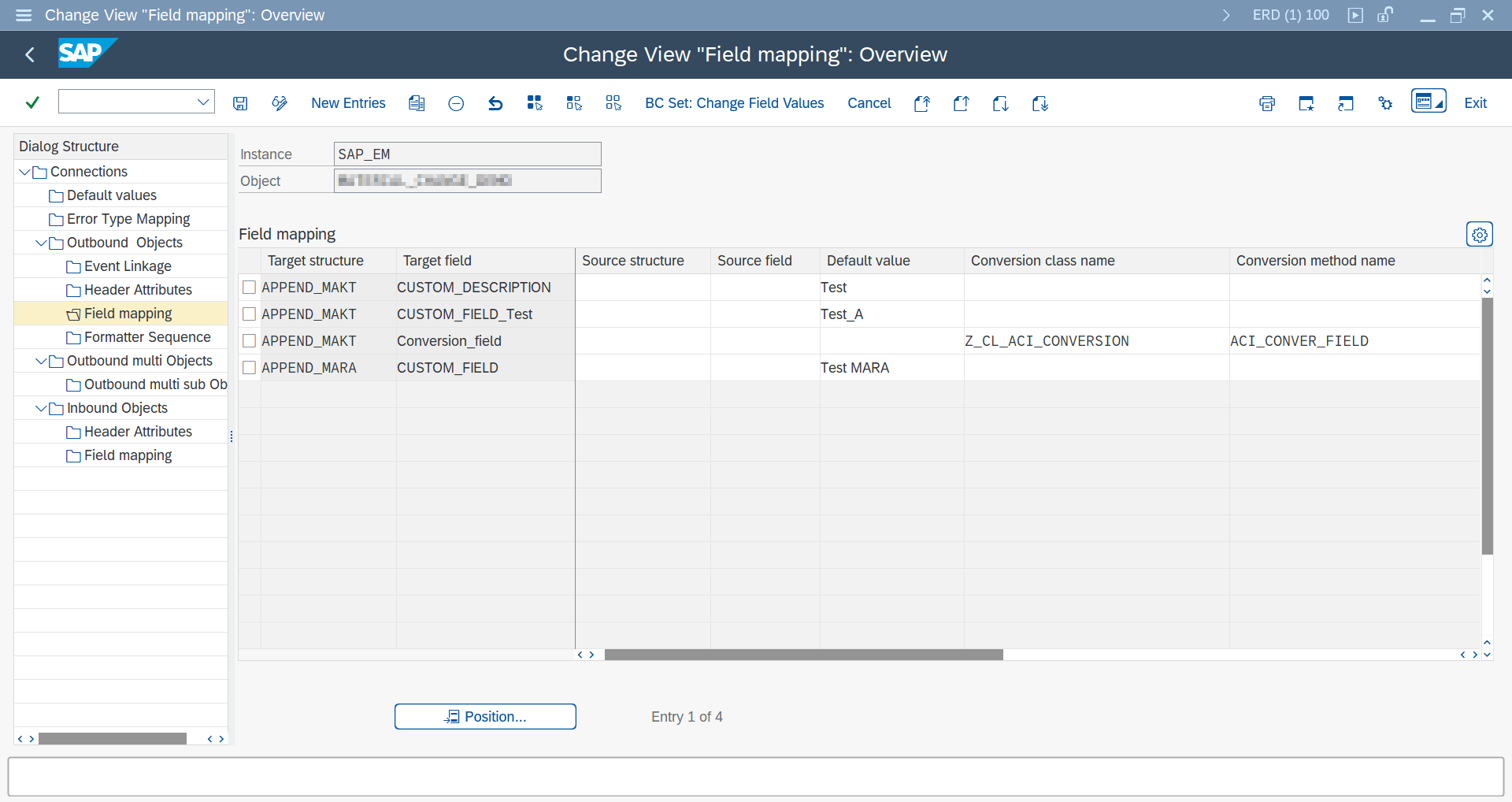

Field Mapping entries (rename, append, convert, skip field, hierarchy, cardinality) are maintained in SAP GUI only. The header-attribute-style options (camel case, disable conversion exit, unique message ID) can also be set via Event Studio's Header Fields Table.

• Rename table/field: TABLE_RENAME, FIELD_RENAME
• Append new field: APPEND_<TABLE>
• Conversion method: FIELD_CONVERSION using interface /ASADEV/IF_ACI_CONVERSION

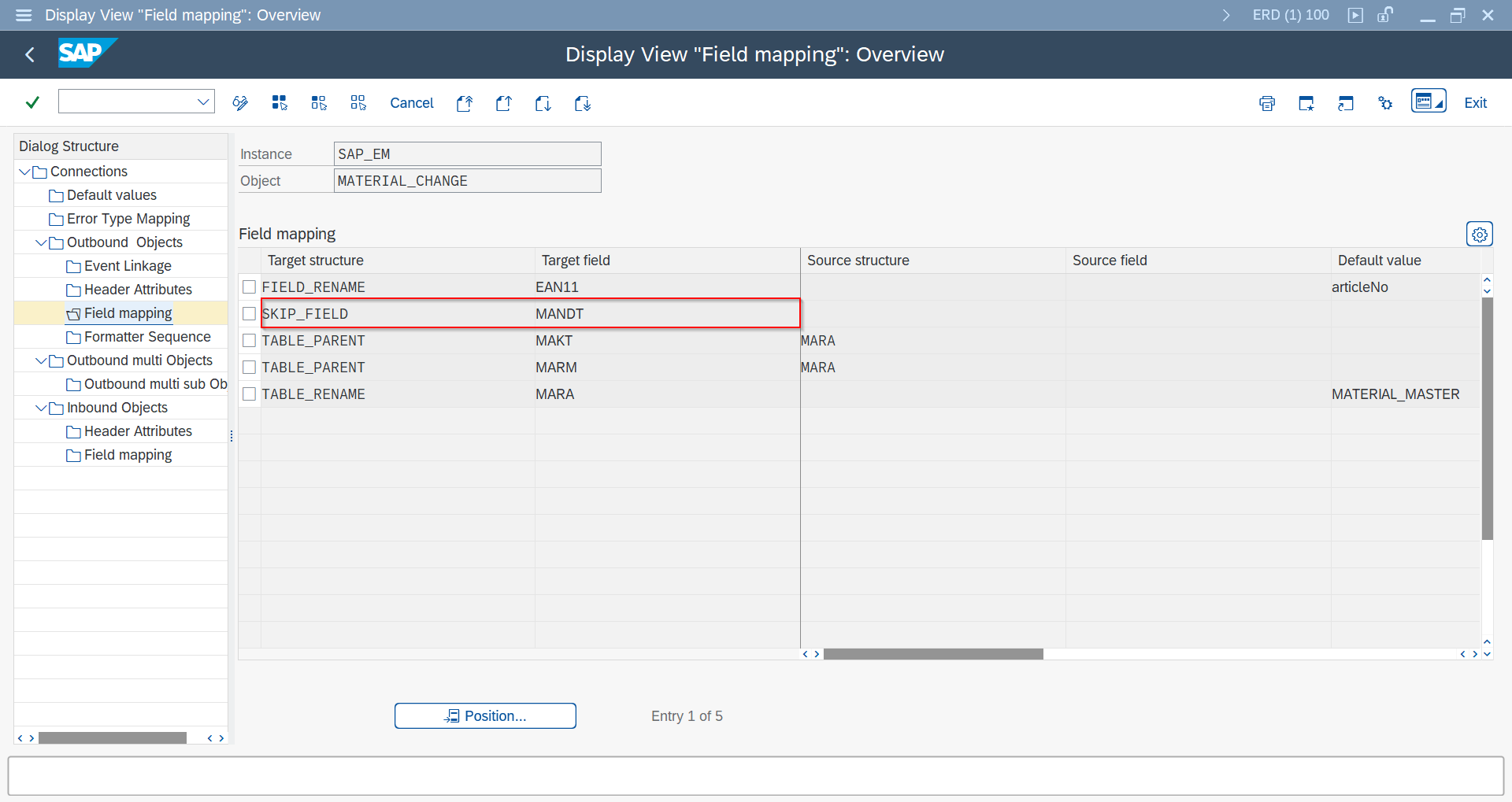

• Skip field: SKIP_FIELD

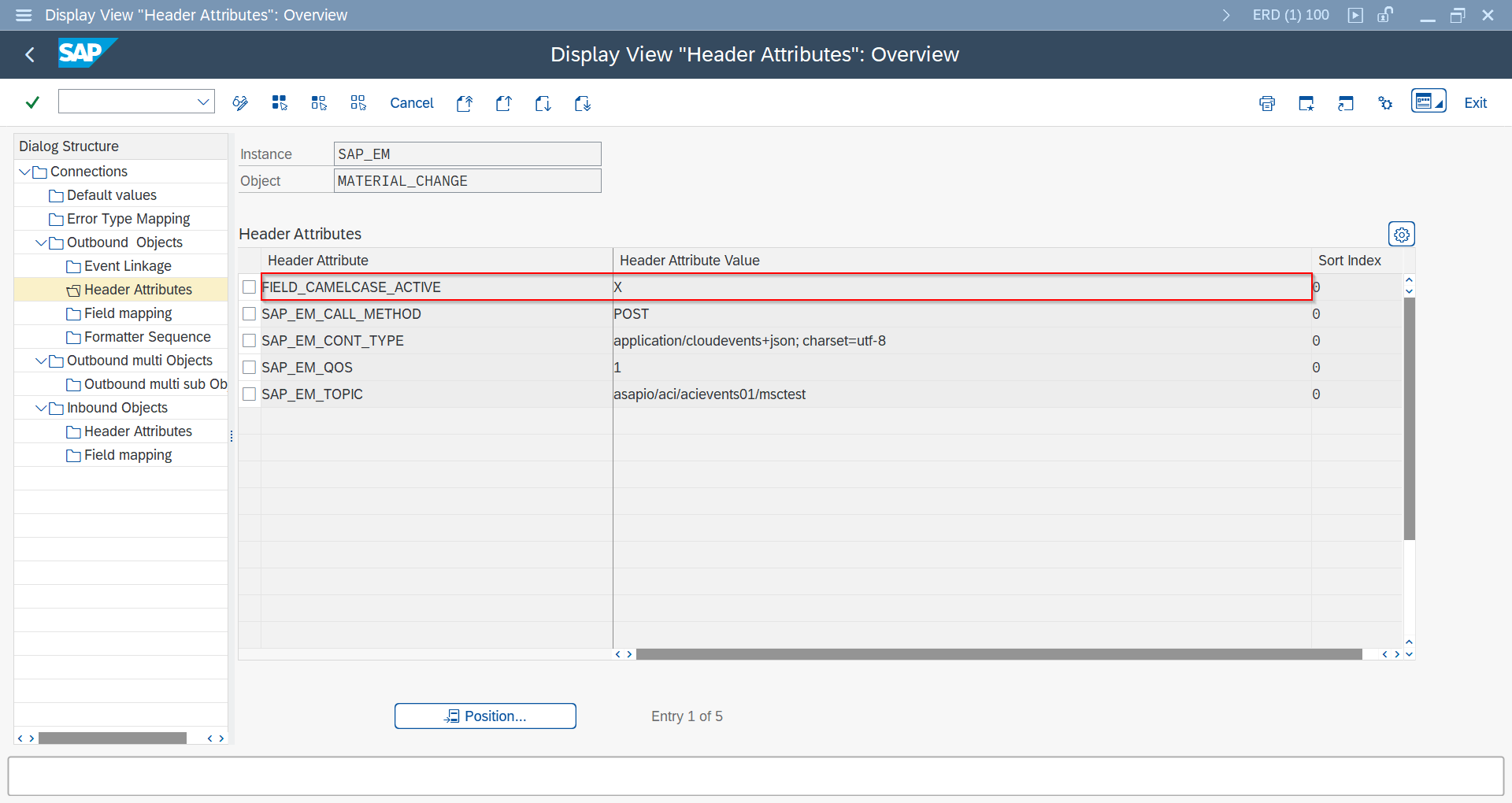

• Camel case: header FIELD_CAMELCASE_ACTIVE = X

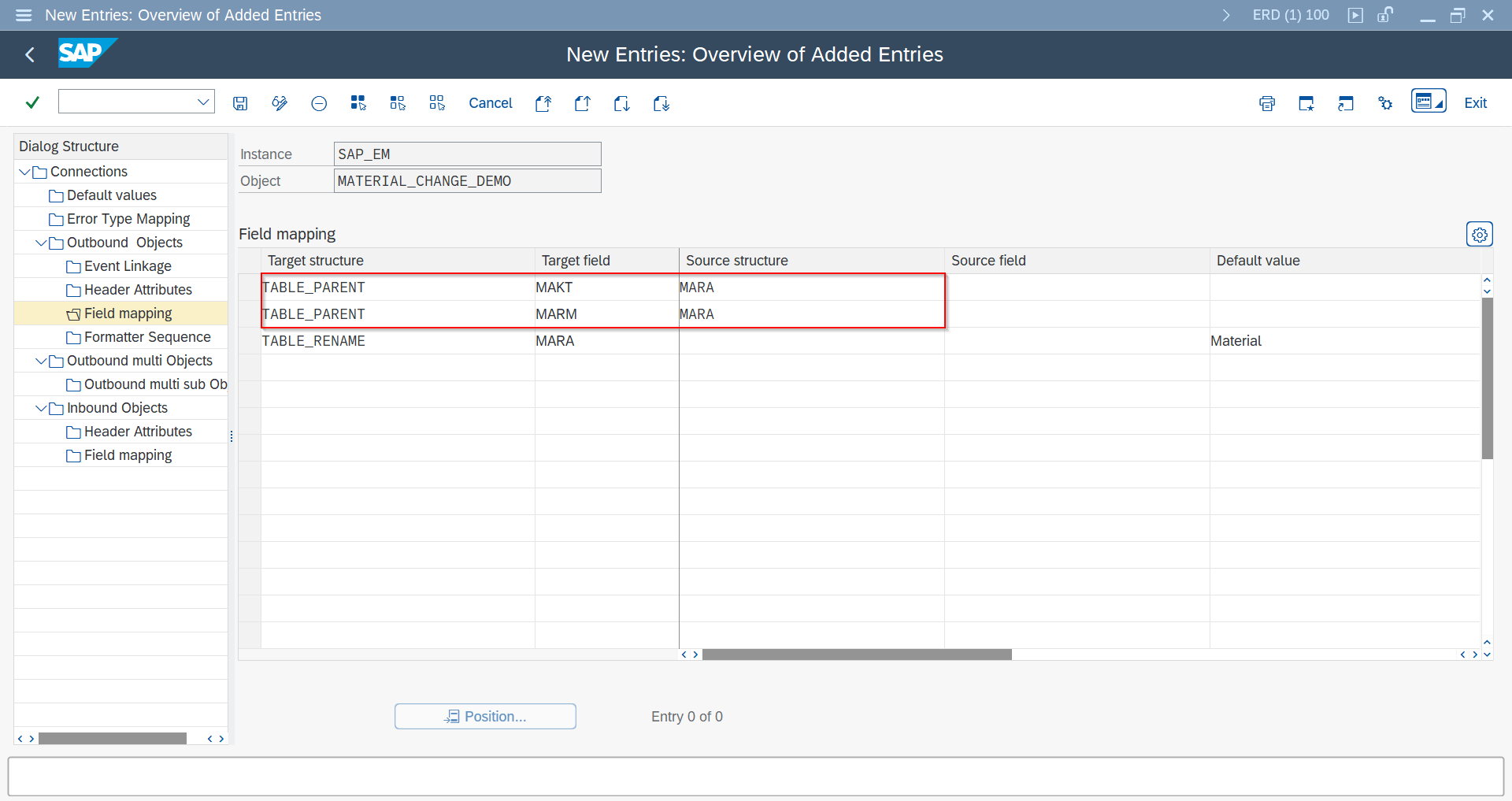

• Change hierarchy: TABLE_PARENT

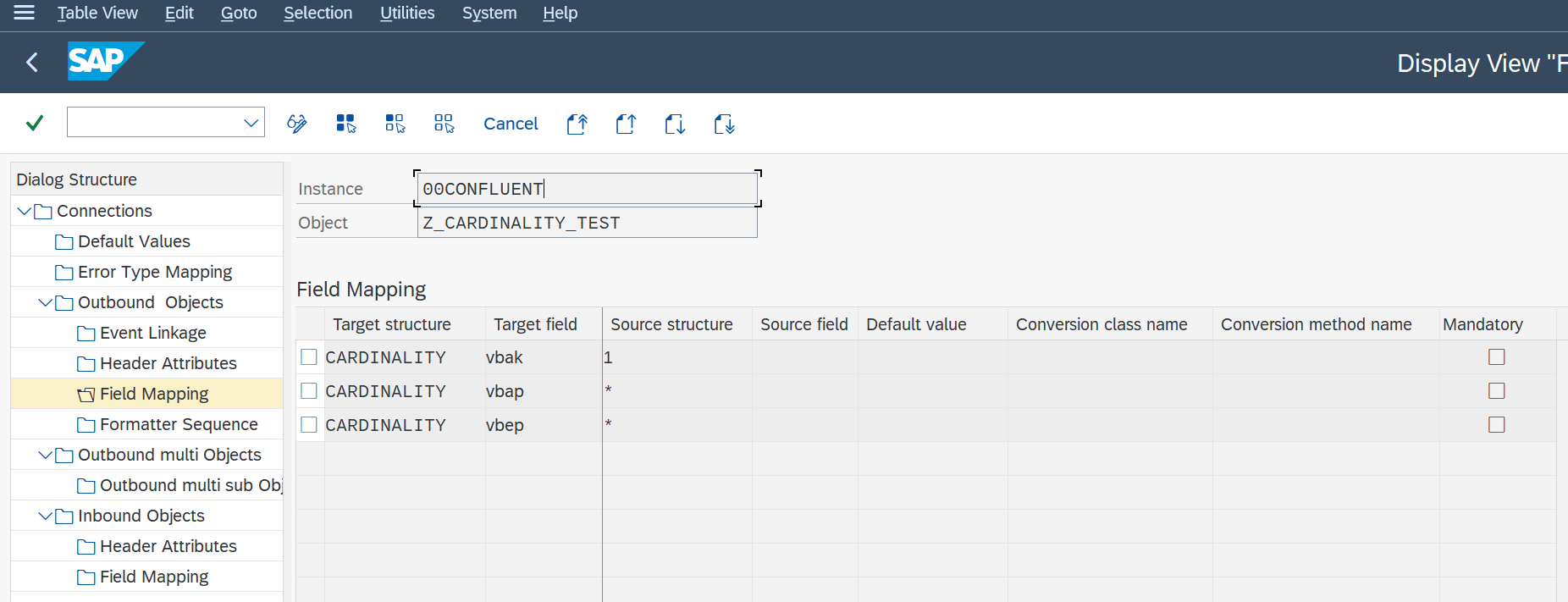

• Change cardinality: CARDINALITY_FUNCTIONALITY

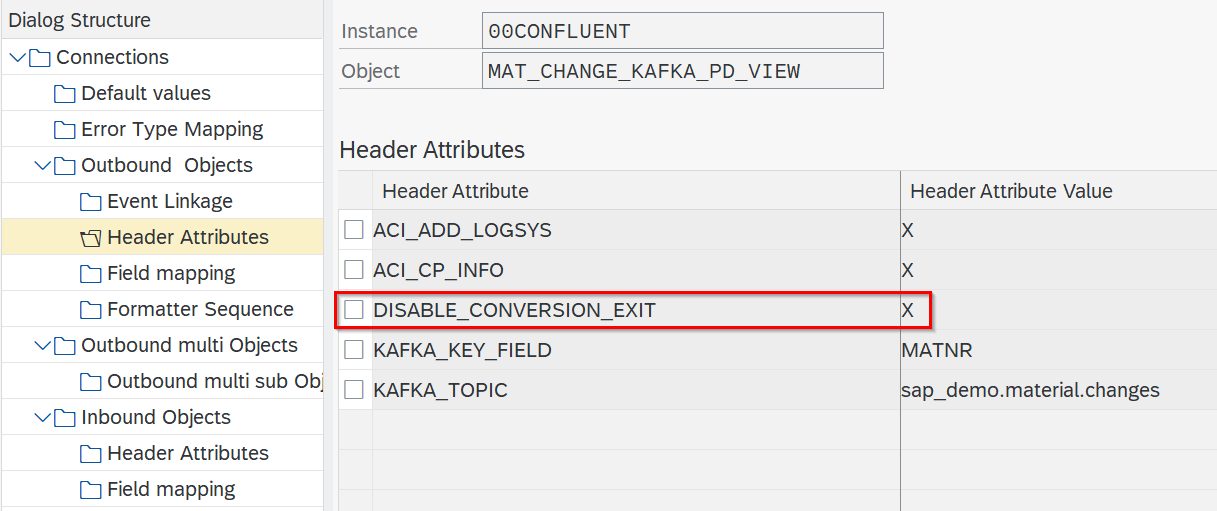

• Disable conversion exits: DISABLE_CONVERSION_EXIT = X

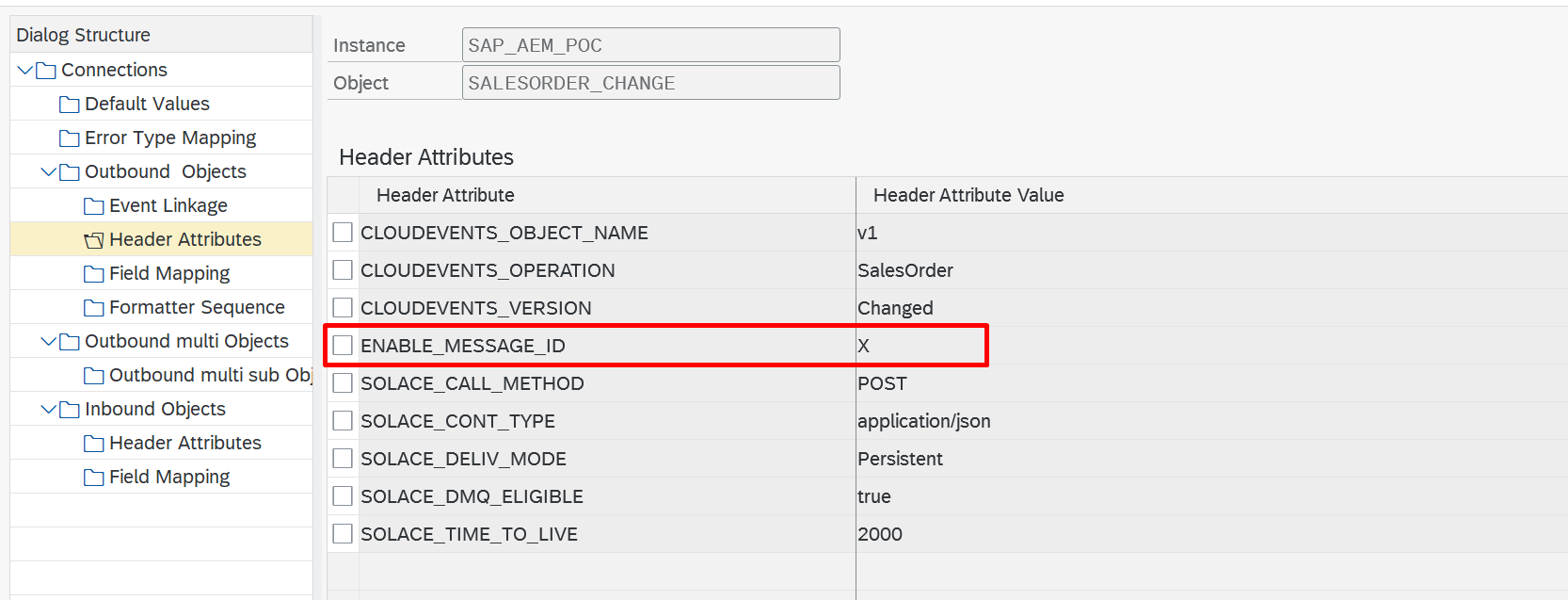

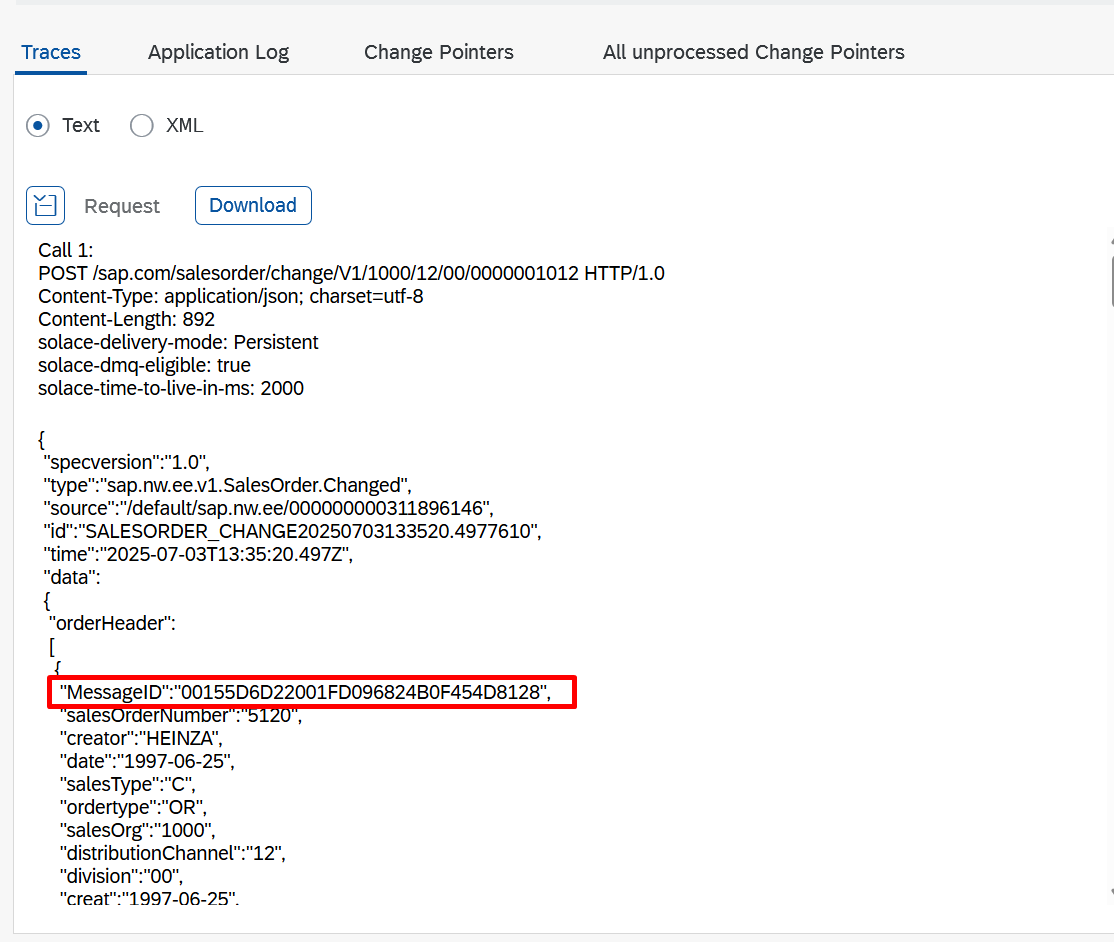

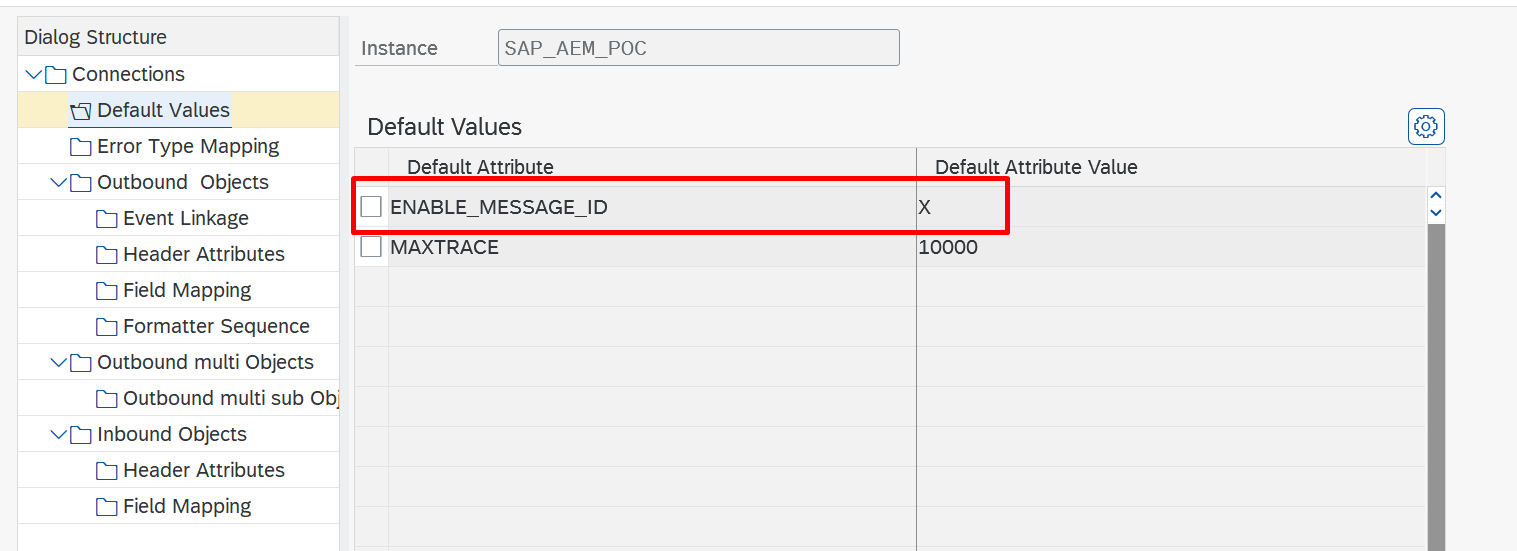

• Unique message id: ENABLE_MESSAGE_ID = X

1. Rename 2. Append field 3. Conversion method 4. Skip field 5. Camel case 6. Hierarchy 7. Cardinality 8. Disable conv. exit 9. Unique ID attr. 10. Unique ID default 11. Unique ID monitor

← Prev Next →

Custom Field Conversion (/ASADEV/IF_ACI_CONVERSION) SAP GUI

With a custom conversion class you can change field values in the payload before the message is sent. The conversion logic is implemented once in an ABAP class and can then be reused for any outbound object. Typical use cases:

• Convert ABAP booleans (X / empty) to true / false
• Combine date and time fields into one timestamp field
• Concatenate several source fields into one new field
• Apply any custom mapping or formatting logic

When ASAPIO builds the payload, it checks the Field Mapping (or the Payload Design) for each field. If a conversion class and method are maintained, ASAPIO calls your method, passes the source data, and writes the returned value into the payload.

Trigger → Extraction → Your conversion method → Payload → Connector

Create the Conversion Class

1. Open transaction SE24 and create a new class in your customer namespace, for example ZCL_ACI_CONVERSION.
2. On the Interfaces tab, add the interface /ASADEV/IF_ACI_CONVERSION.
3. The interface provides the conversion method. Implement your logic inside it.

Method Parameters

The conversion method receives the Field Mapping configuration and the extracted source data, and returns the converted value:

Example: Read Long Text as JSON

This example reads the header text (text ID F01) of a purchasing document (EKKO) via READ_TEXT, builds a JSON array with one entry per text line, and returns it in EV_VALUE. Setting EV_TYPE = 'raw' is necessary so the array is written into the payload as a JSON substructure instead of a quoted string. The method uses the signature of /ASADEV/IF_ACI_CONVERSION~GET_FIELD_VALUE and is referenced as the conversion method in the configuration.

METHOD read_long_text_ekko_f01.

  DATA: lv_name     TYPE thead-tdname,
        lt_lines    TYPE TABLE OF tline,
        ls_lines    TYPE tline,
        lv_json     TYPE string,
        lv_entry    TYPE string,
        lv_first    TYPE abap_bool,
        lv_text_esc TYPE string.

  FIELD-SYMBOLS: <fs_value> TYPE any.

  CONSTANTS:
    lc_tdid    TYPE thead-tdid     VALUE 'F01',
    lc_object  TYPE thead-tdobject VALUE 'EKKO',
    lc_ebeln   TYPE fieldname      VALUE 'EBELN'.

  ASSIGN COMPONENT lc_ebeln OF STRUCTURE is_data TO <fs_value>.
  IF <fs_value> IS NOT ASSIGNED.
    " Field not found - return empty, caller must handle
    RETURN.
  ENDIF.

  lv_name = <fs_value>.

* ev_type = 'string'.
  ev_type = 'raw'. " Necessary to create a JSON substructure

  CALL FUNCTION 'READ_TEXT'
    EXPORTING
      id                      = lc_tdid     " Text ID of text to be read
      language                = sy-langu    " Language of text to be read
      name                    = lv_name     " Name of text to be read
      object                  = lc_object   " Object of text to be read
    TABLES
      lines                   = lt_lines    " Lines of text read
    EXCEPTIONS
      id                      = 1
      language                = 2
      name                    = 3
      not_found               = 4
      object                  = 5
      reference_check         = 6
      wrong_access_to_archive = 7
      OTHERS                  = 8.
  IF sy-subrc = 0.

    lv_first = abap_true.
    lv_json = '['. " Start JSON array

    LOOP AT lt_lines INTO ls_lines.

      " Escape double quotes in text to avoid broken JSON
      lv_text_esc = ls_lines-tdline.
      REPLACE ALL OCCURRENCES OF '\' IN lv_text_esc WITH '\\'.
      REPLACE ALL OCCURRENCES OF '"' IN lv_text_esc WITH '\"'.

      " Build JSON object string
      IF lv_first = abap_true.
        lv_first = abap_false.
      ELSE.
        CONCATENATE lv_json ',' INTO lv_json.
      ENDIF.

      CONCATENATE lv_json
                  '{"format":"' ls_lines-tdformat
                  '","text":"'  lv_text_esc
                  '"}'
             INTO lv_json.

    ENDLOOP.

    CONCATENATE lv_json ']' INTO lv_json.  " Close JSON array

    ev_value = lv_json.

  ELSE.
    ev_value = '{}'.

  ENDIF.

ENDMETHOD.

Result in the payload:

{
  "HeaderText": [
    { "format": "*", "text": "First line of the header text" },
    { "format": "*", "text": "Second line of the header text" }
  ]
}

Configuration

You can maintain the conversion in two places. Both lead to the same result.

Option A: Field Mapping (Outbound Object)

1. Open /ASADEV/ACI_SETTINGS and select your outbound object.
2. Open the Field Mapping.

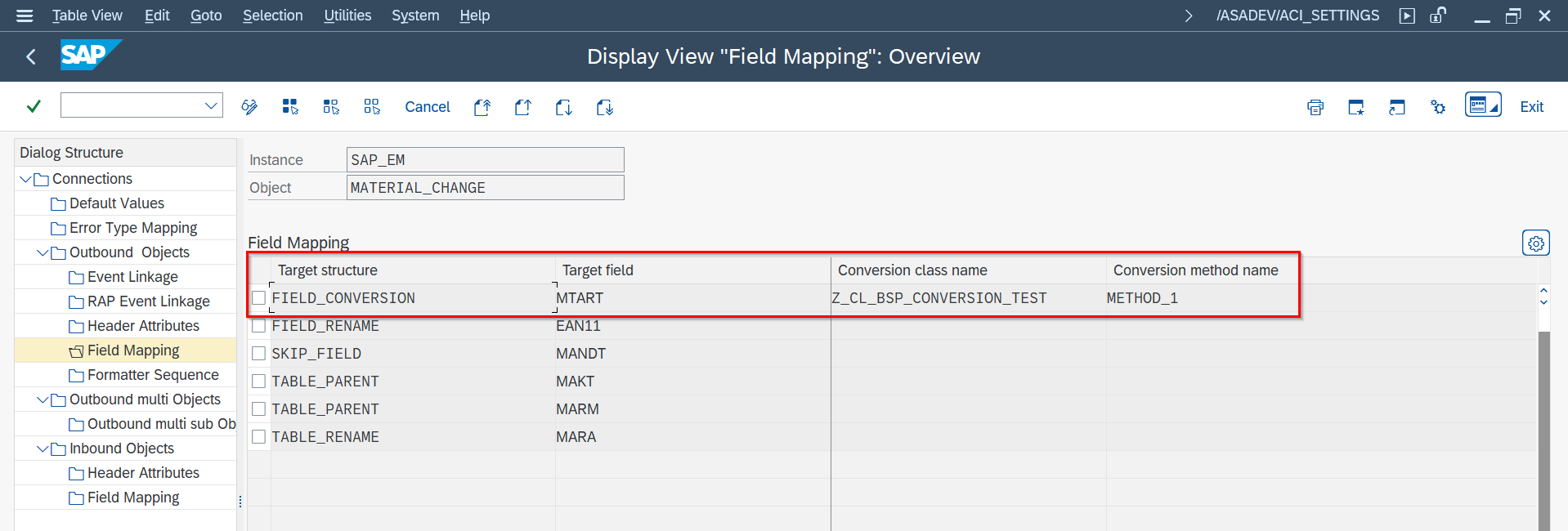

3. Create an entry with the following values:
   • Target structure: FIELD_CONVERSION
   • Target field: the field name to be converted
   • Conversion class: your class, for example ZCL_ACI_CONVERSION
   • Conversion method: the method to call

Option B: Payload Designer

1. Open transaction /ASADEV/DESIGN and select or create a payload design.
2. Select the field to be converted.

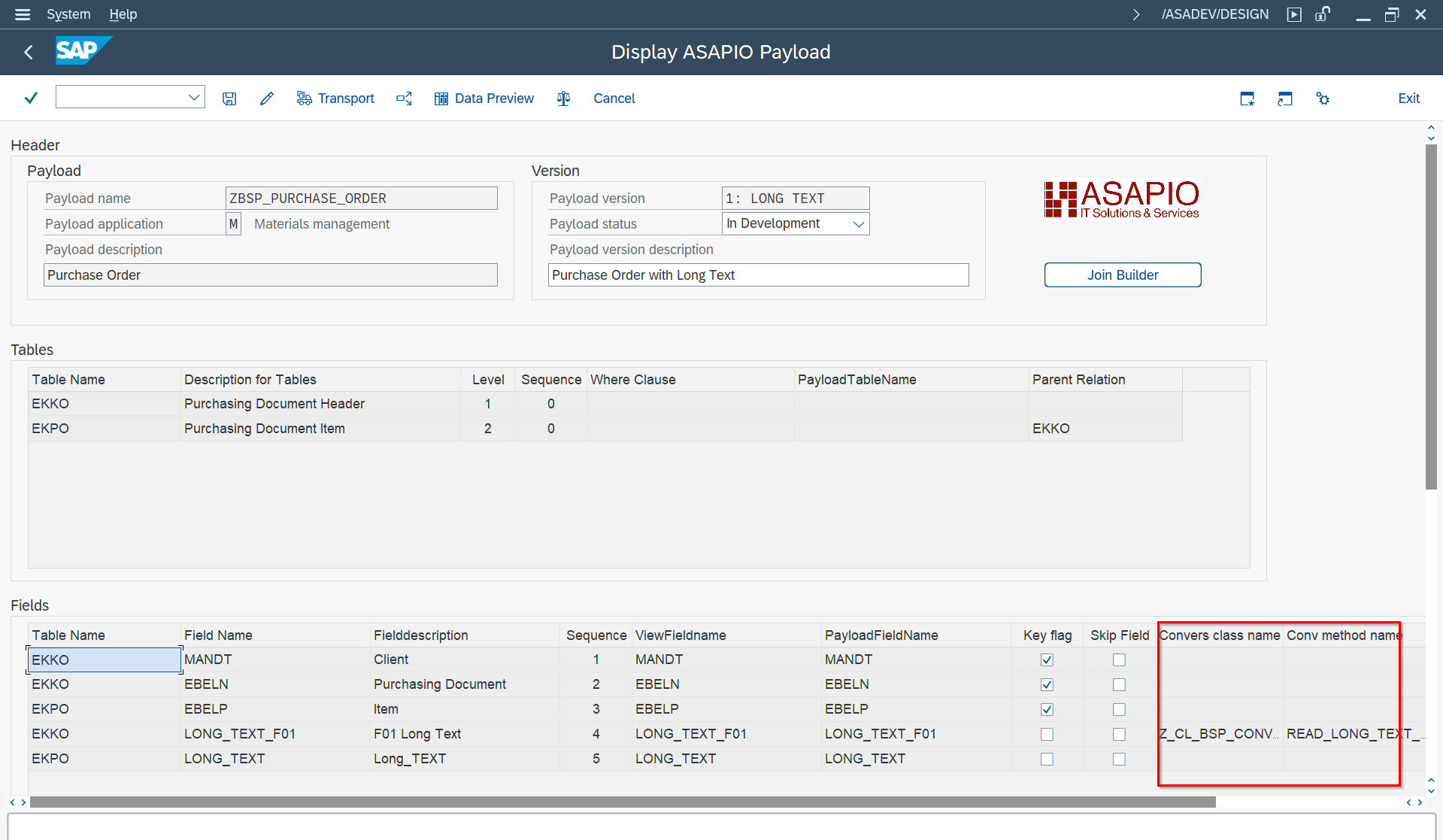

3. Enter the conversion class and conversion method directly on the field.

Change Pointer Enhancements SAP GUI

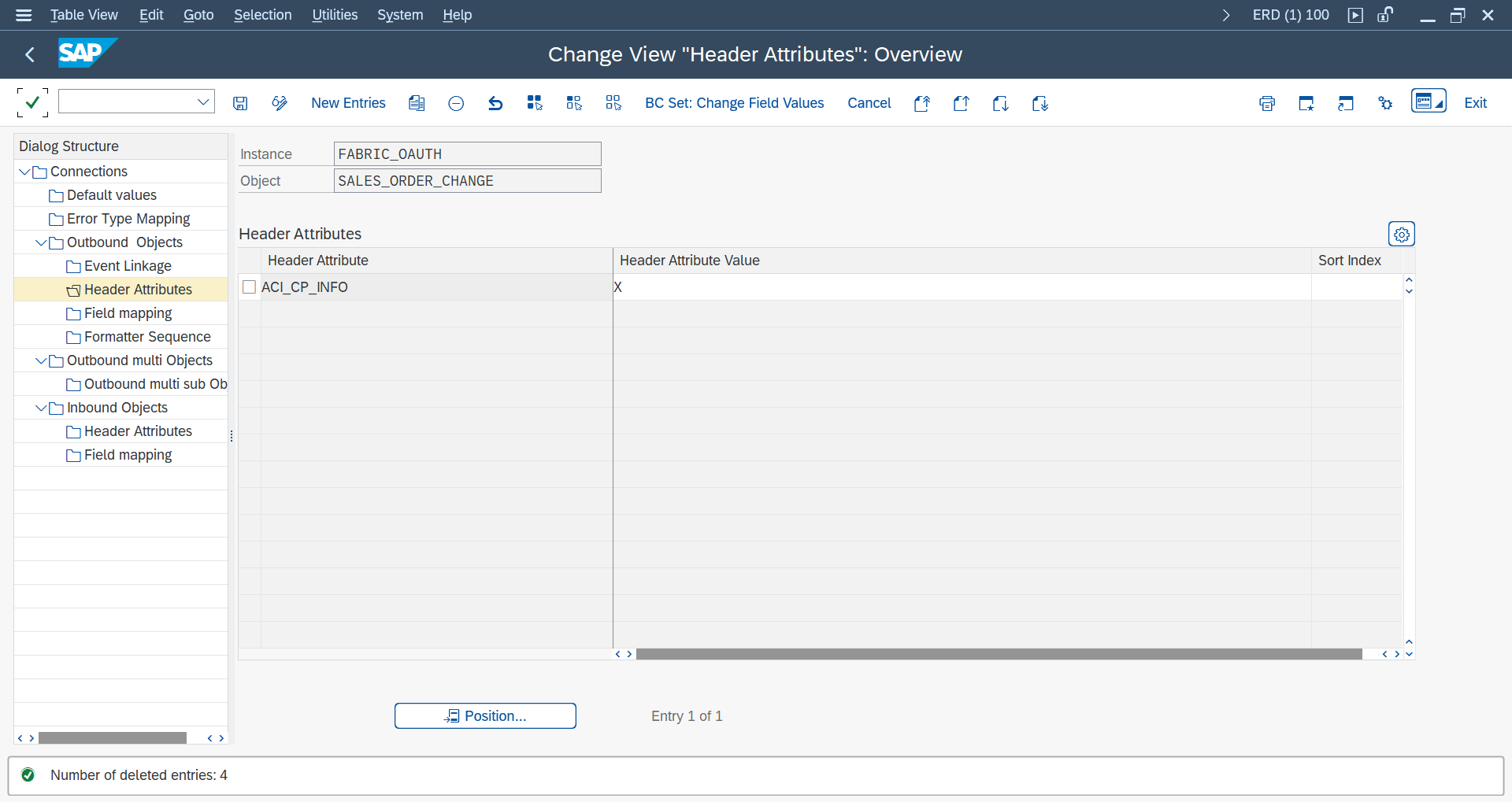

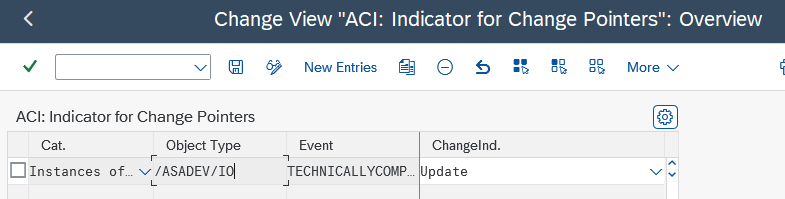

Release 9.32405 introduced change indicator mapping (I/U/D) by event naming convention and optional mapping table /ASADEV/ACI_CP_I.

1. SM30 mapping 2. BAdI signature 3. Example use case

← Prev Next →

Batch Job (Job Processed Messaging) SAP GUI

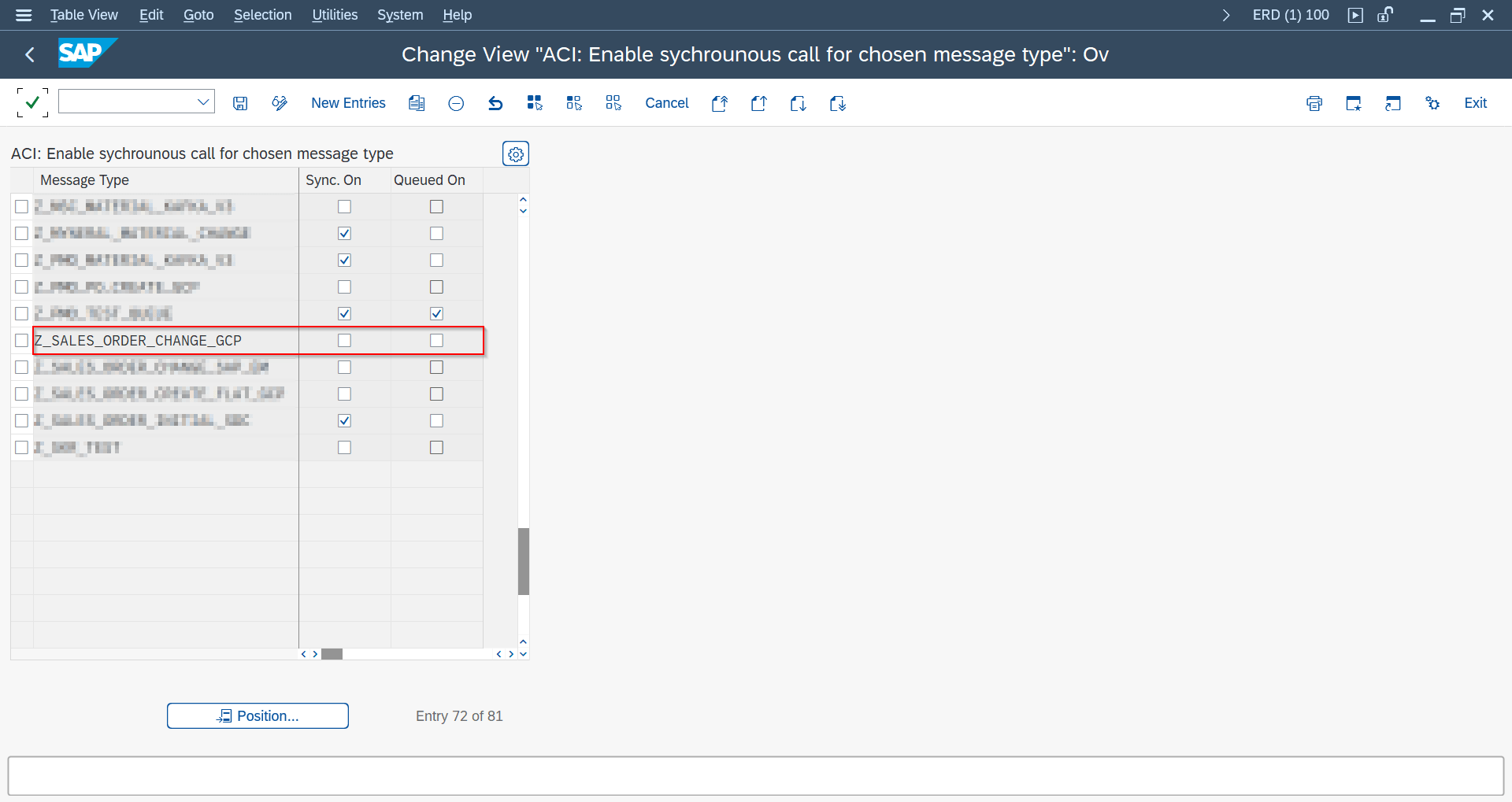

1. Set message type as async in /ASADEV/ACI_SYNC (Sync Off).
2. Create variant in /ASADEV/ACI.

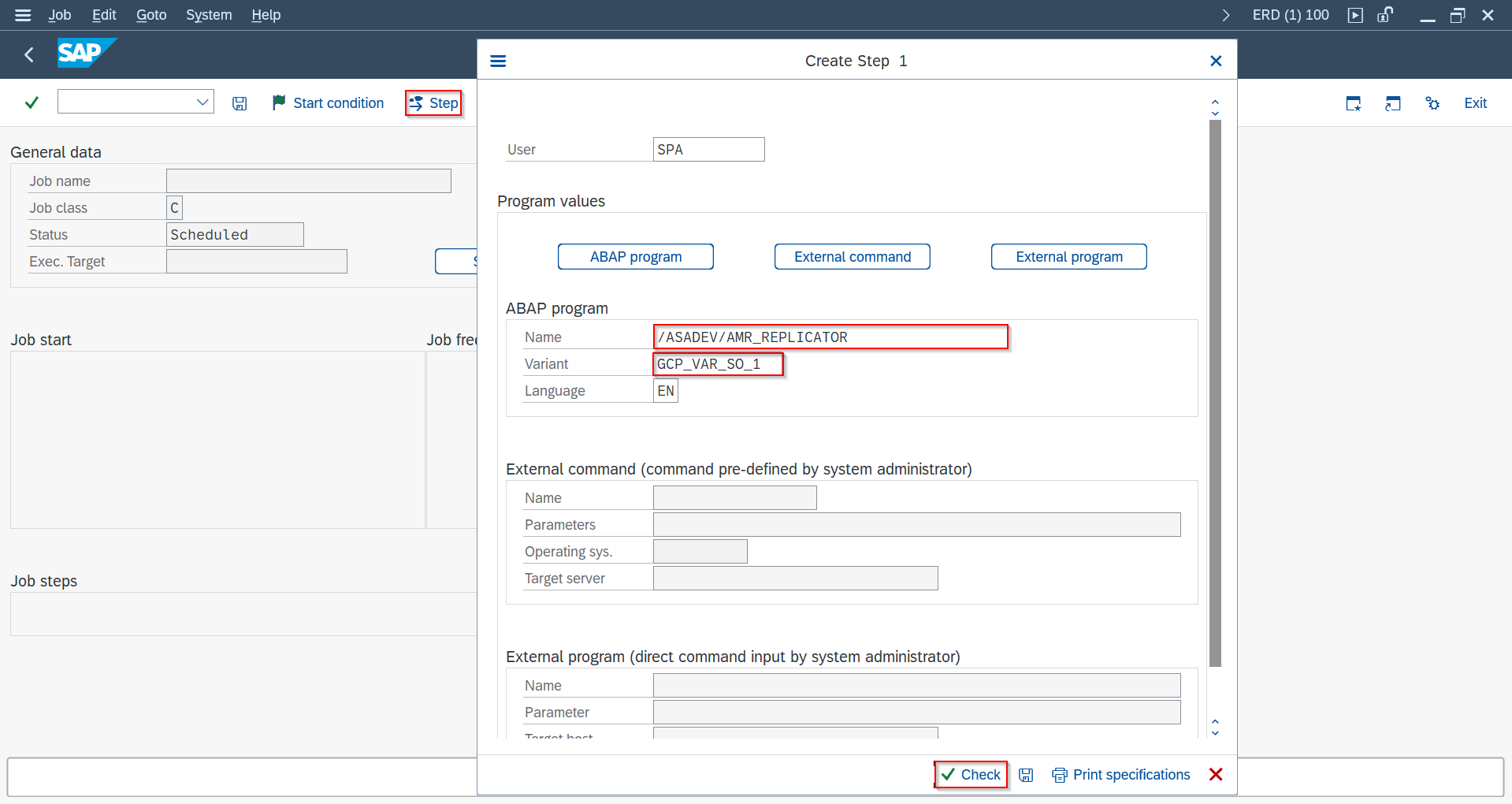

3. Schedule /ASADEV/AMR_REPLICATOR via SM36.

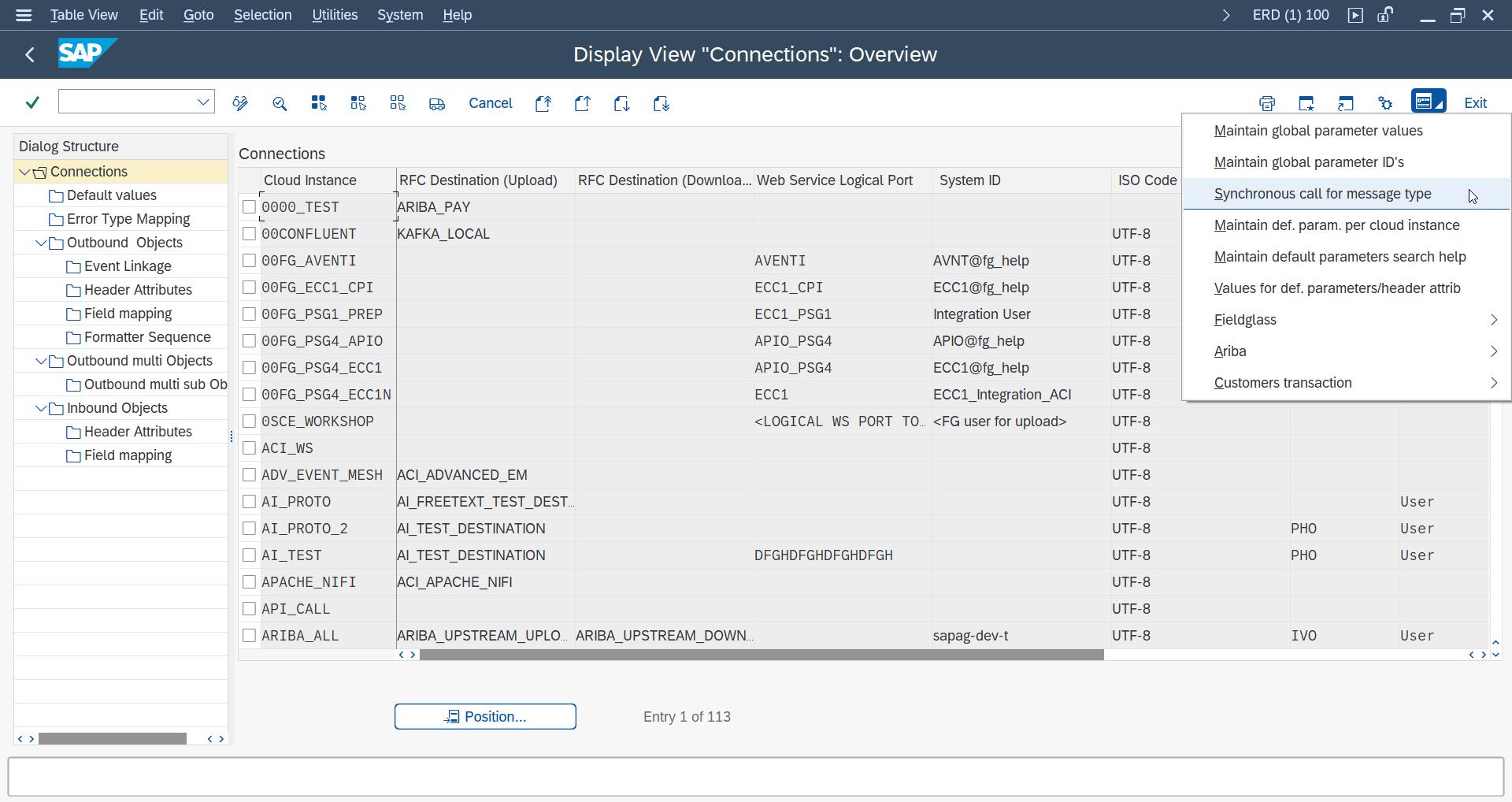

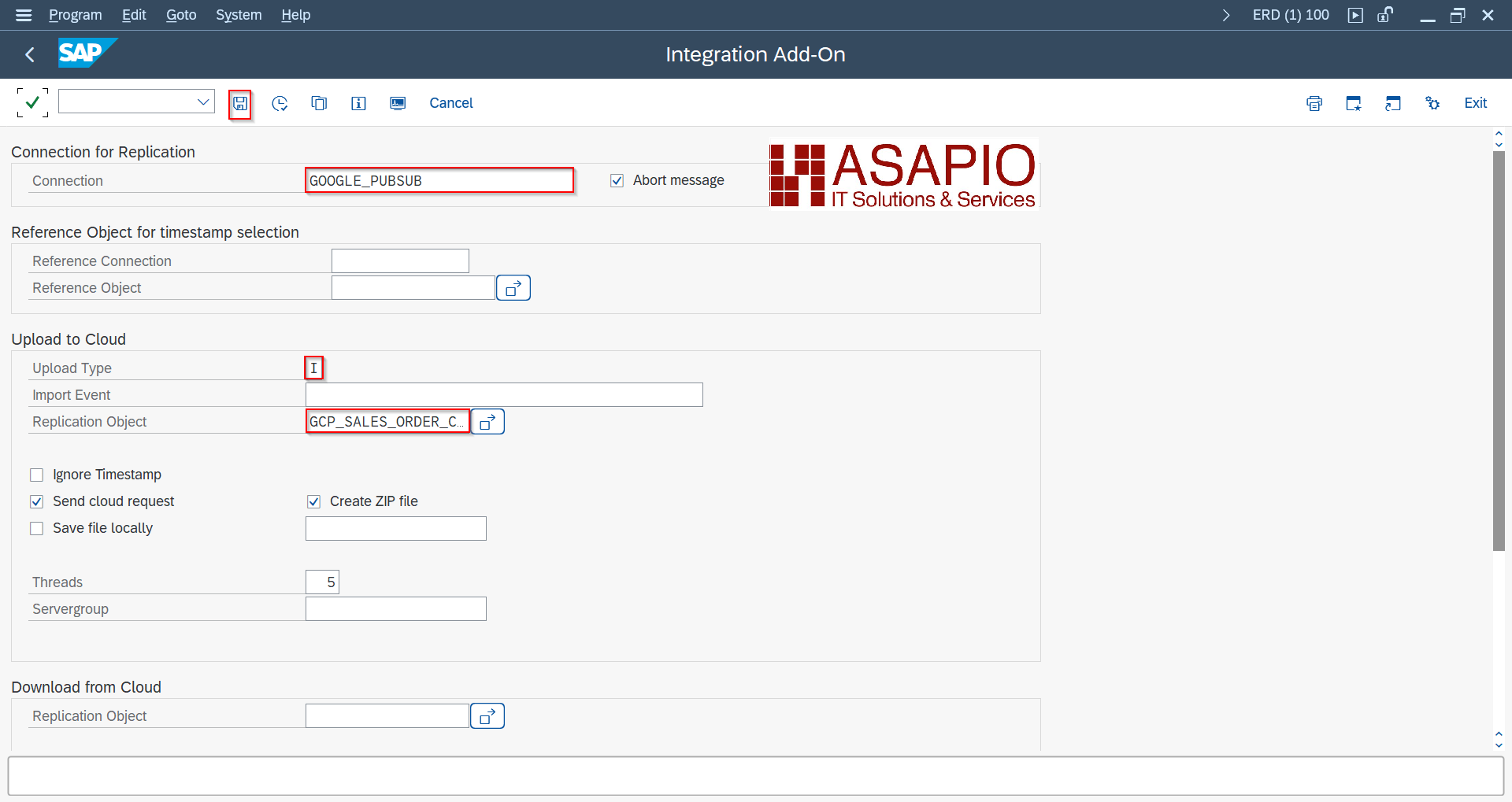

1. ACI_SYNC 2. ACI_SYNC detail 3. Define variant 4. Schedule SM36 5. Test job

← Prev Next →

Packed Load / Initial Load SAP GUIEvent Studio

Use load type Packed Load for large-volume extraction and reprocessing.

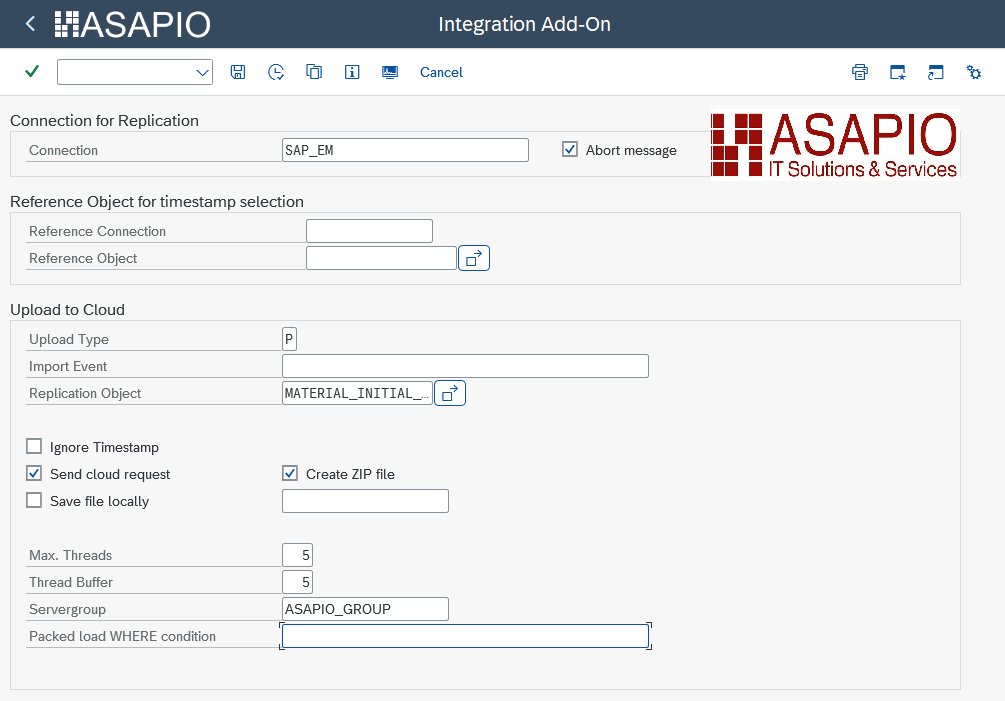

Selecting Load Type = Packed Load and maintaining its header attributes (ACI_PACK_*) can be done via Event Studio's Create Interface and Header Fields Table. The underlying database view (SE11) and the Max Threads / Thread Buffer / WHERE condition options on /ASADEV/ACI still require SAP GUI.

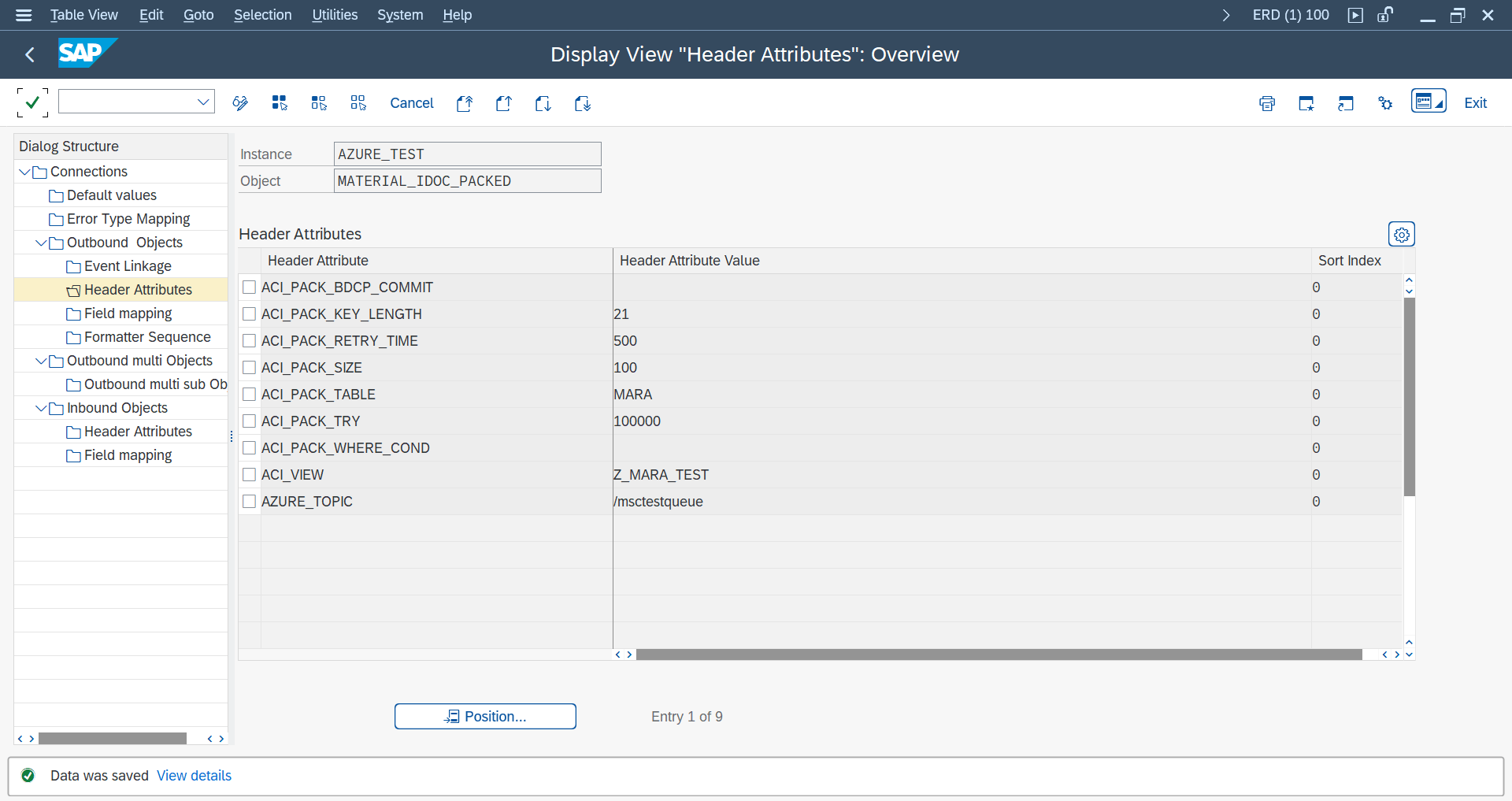

1. DB view 2. Header attributes 3. Threads/WHERE (9.32504)

← Prev Next →

Packed Reprocessing SAP GUIEvent Studio

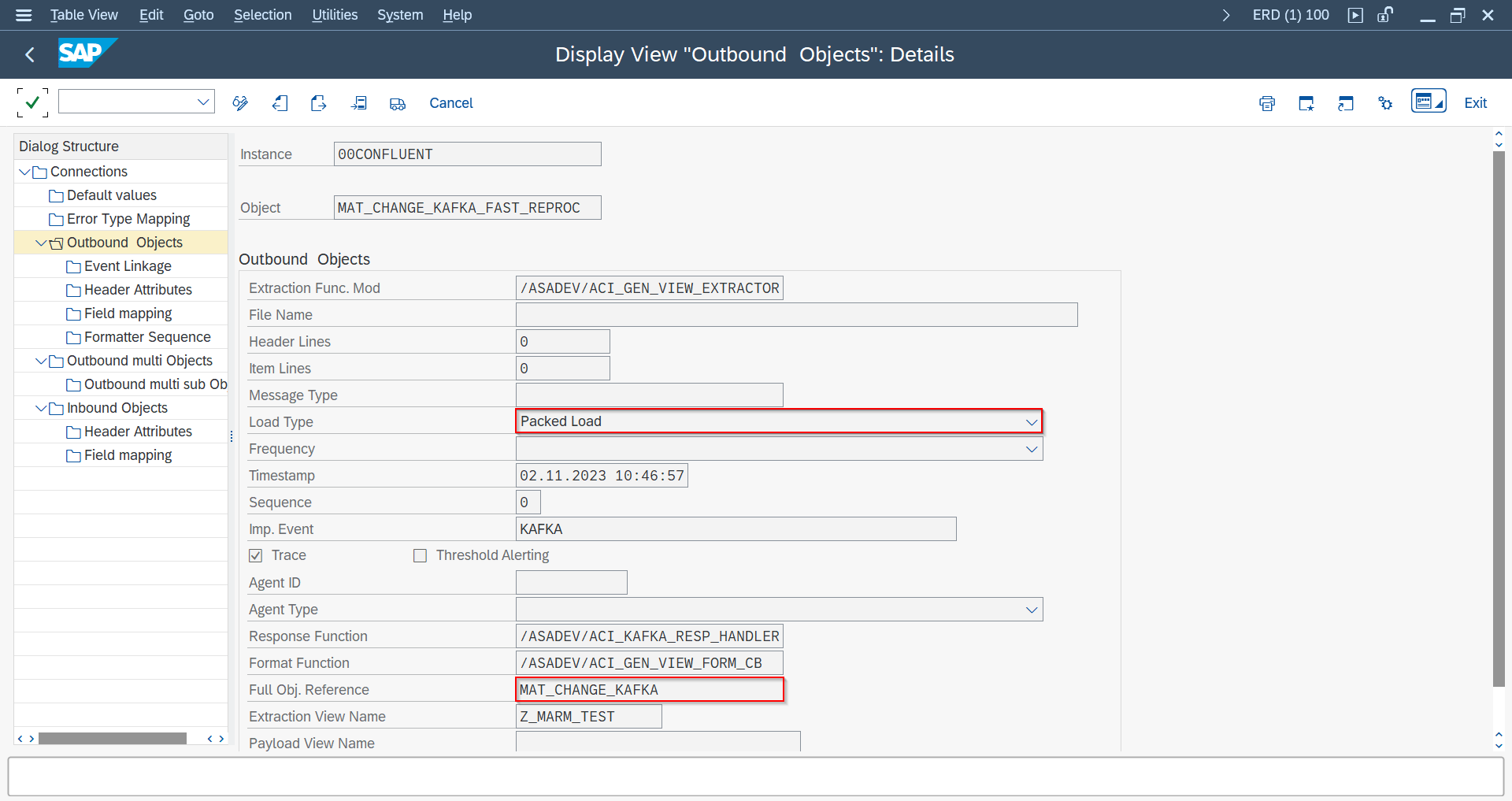

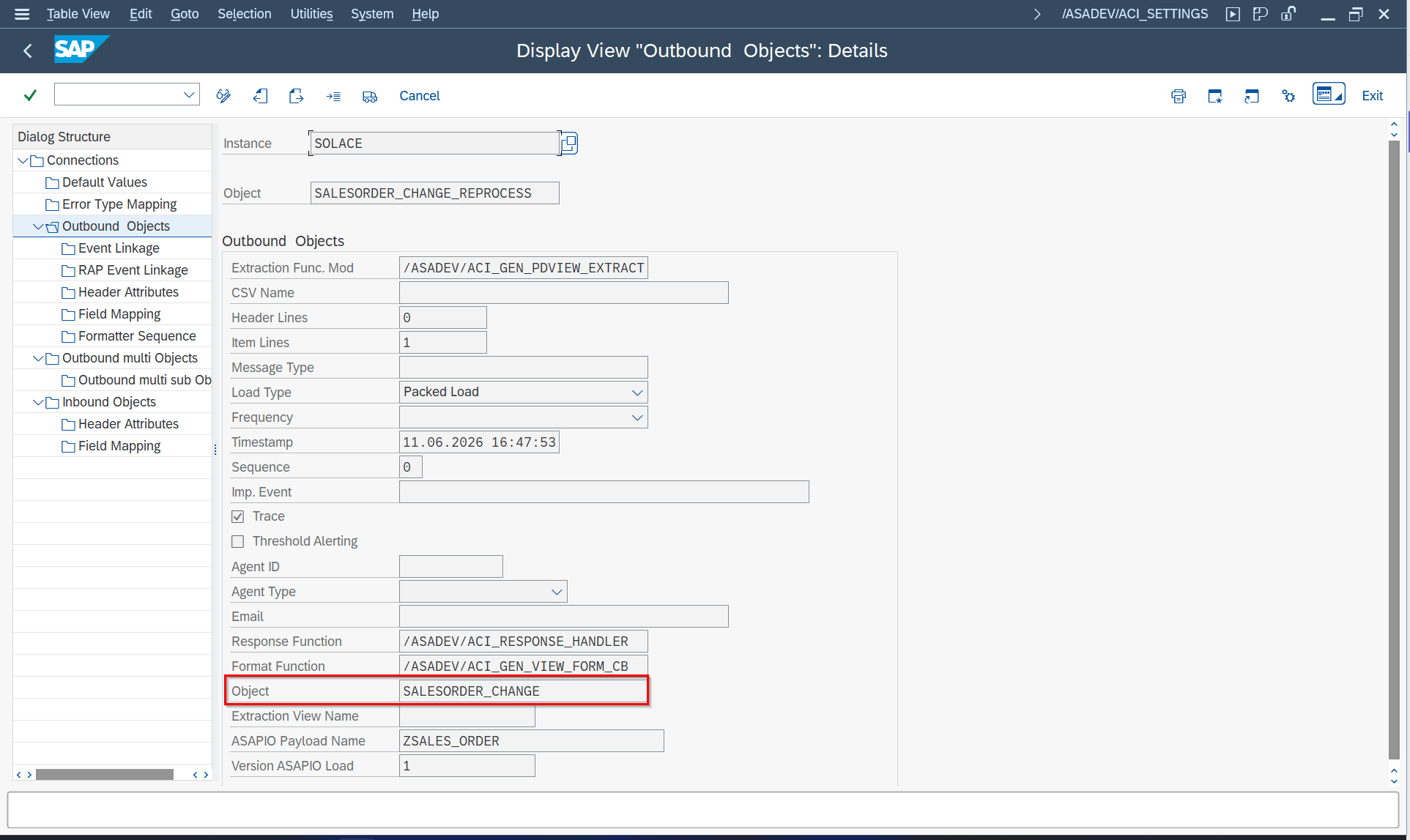

Use a reprocessing object with Load Type = Packed Load and maintain Full Obj. Reference to the incremental object.

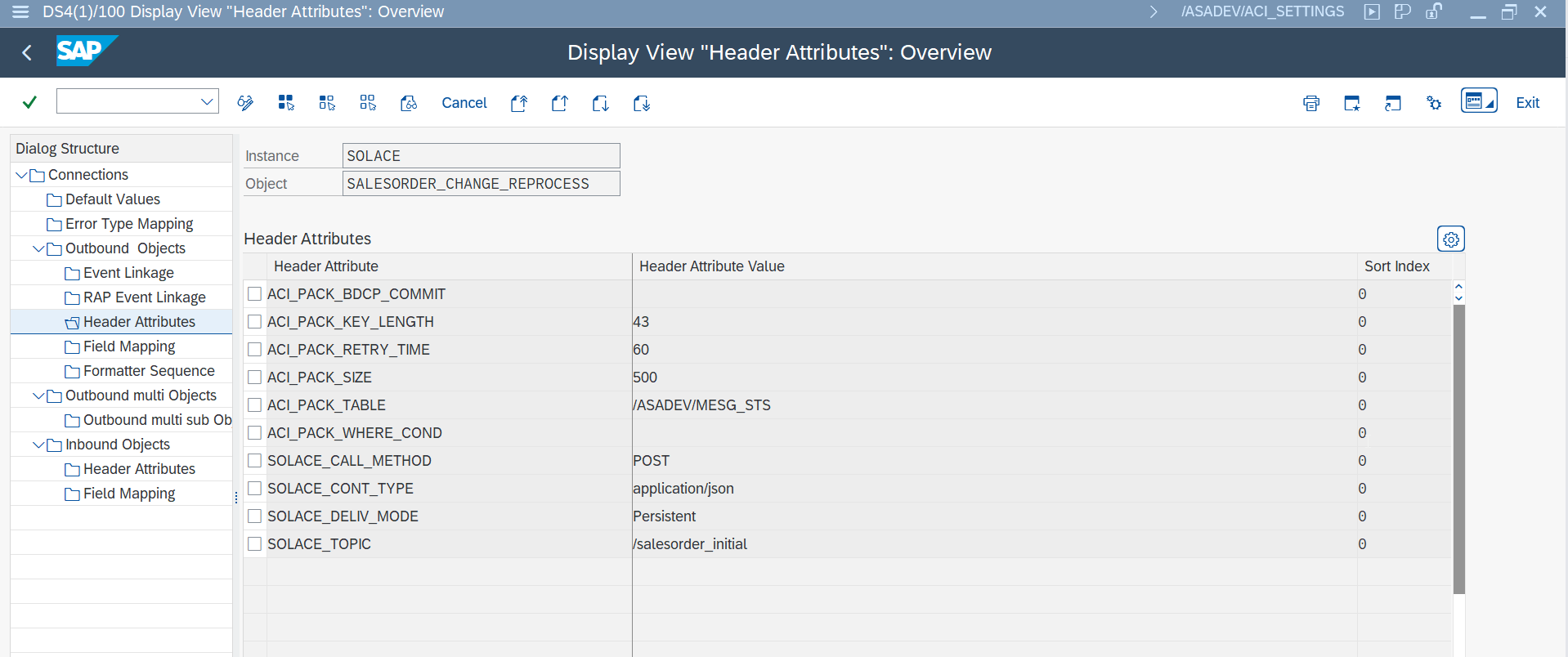

For reprocessing, configure the following header attributes:

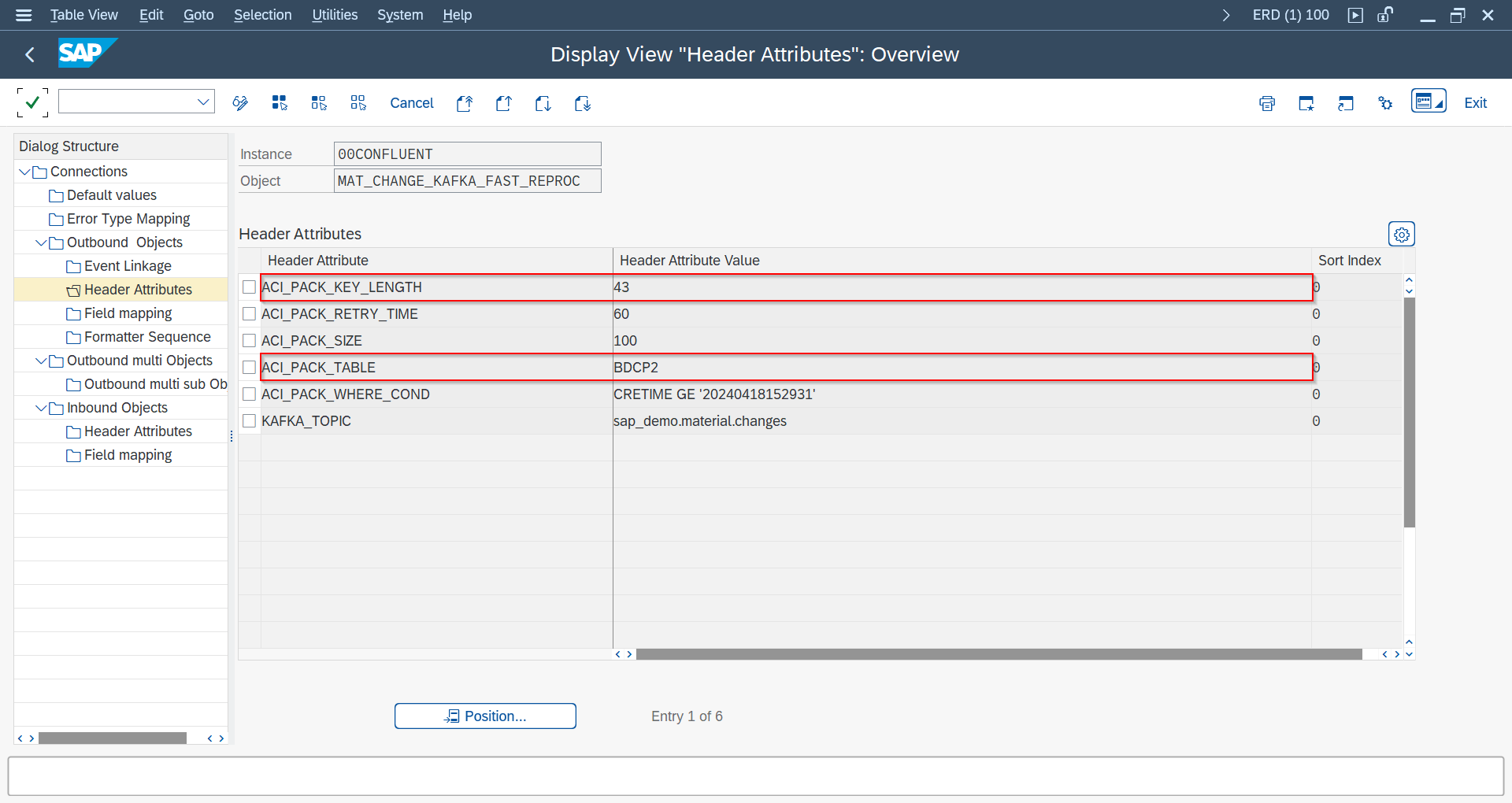

The Load Type = Packed Load selection and its header attributes (ACI_PACK_TABLE, ACI_PACK_KEY_LENGTH) can be maintained via Event Studio. The Full Obj. Reference field, which links the reprocessing object to its incremental counterpart, is not available as a header attribute in Event Studio and is currently maintained in SAP GUI.

1. Outbound object 2. Header attributes (pre-SP13) 3. Outbound object (SP13+) 4. Header attributes (SP13+)

← Prev Next →

Immediate Retry Feature SAP GUIEvent Studio

Since release 9.32410:

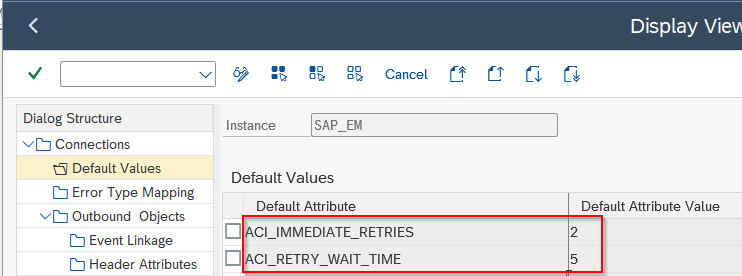

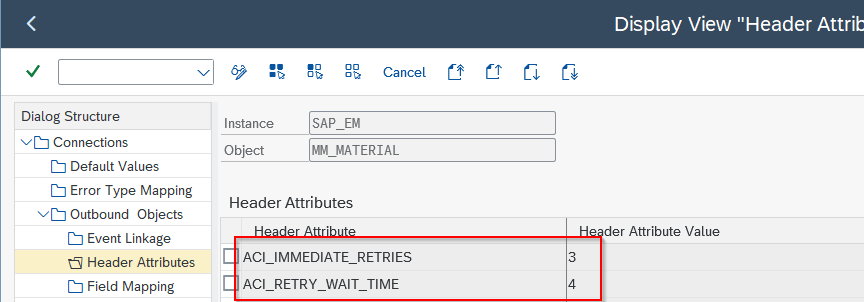

• ACI_IMMEDIATE_RETRIES: number of immediate retries
• ACI_RETRY_WAIT_TIME: wait time in seconds between retries

Object-level overrides (both attributes above, set as header attributes) can be maintained via Event Studio's Header Fields Table. The connection-level default is edited from Event Studio's Connections page, which hands off to SAP GUI for HTML.

1. Connection default 2. Object override

← Prev Next →

Custom Triggers, Extractors, and Formatters SAP GUI

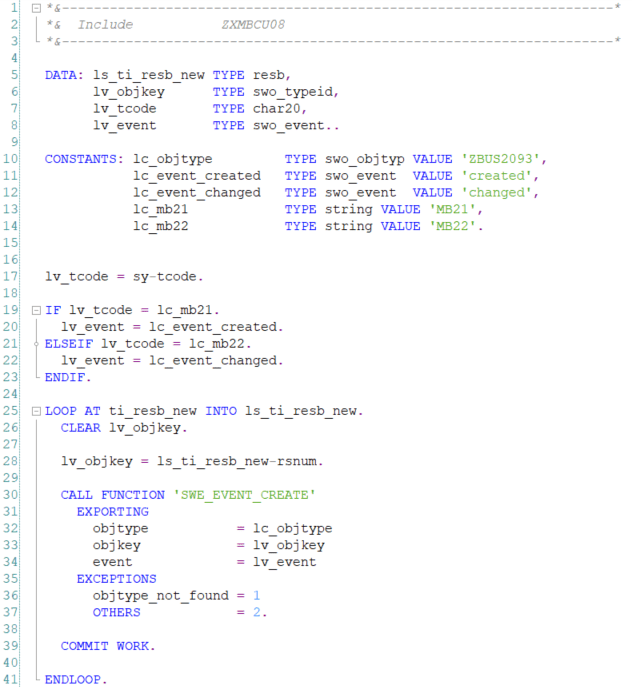

For advanced scenarios, implement custom events and trigger logic via SWU_EWCD, user exits, BAdIs, or SLT enhancements. This is especially useful where no standard SAP trigger exists.

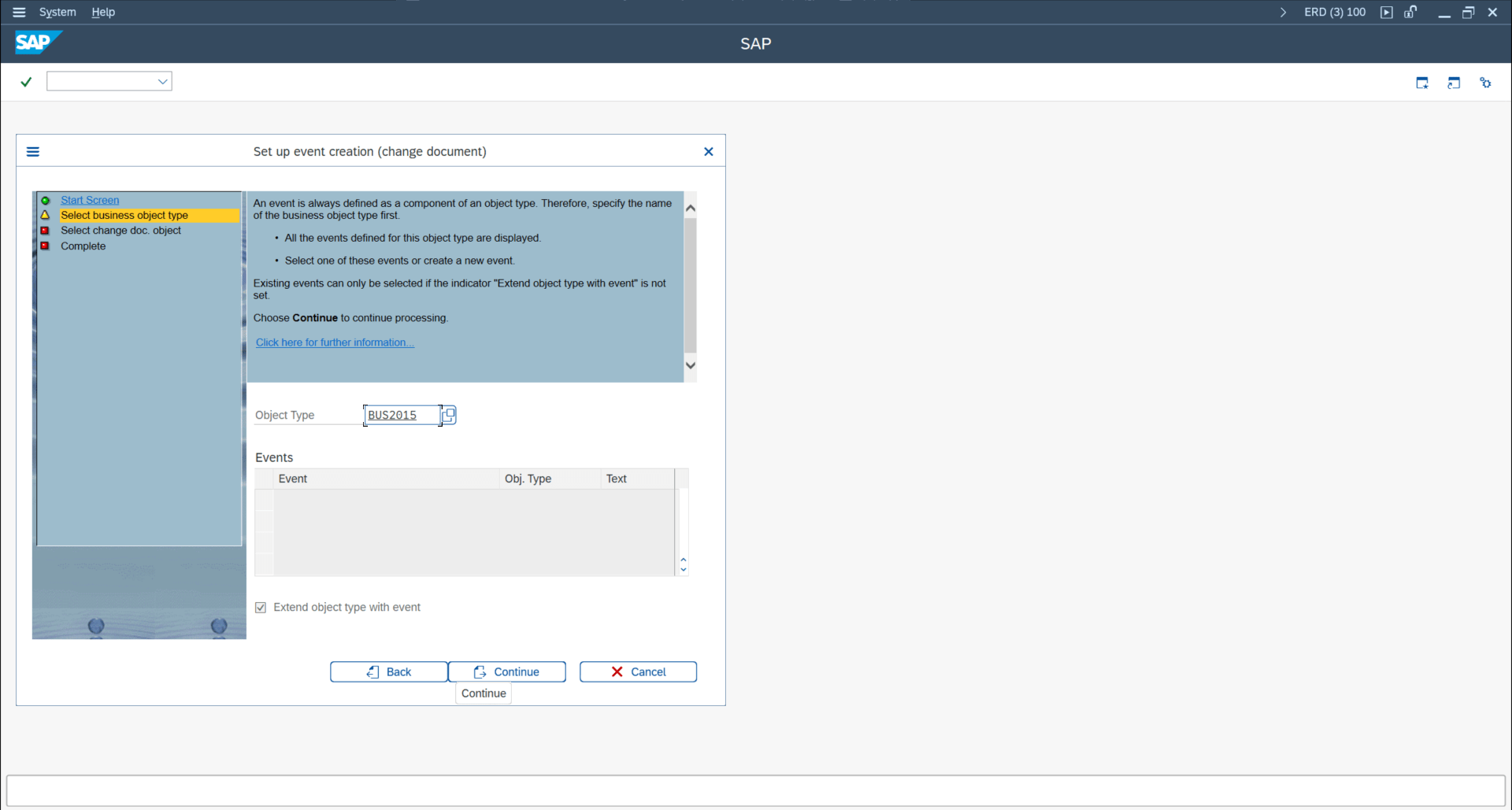

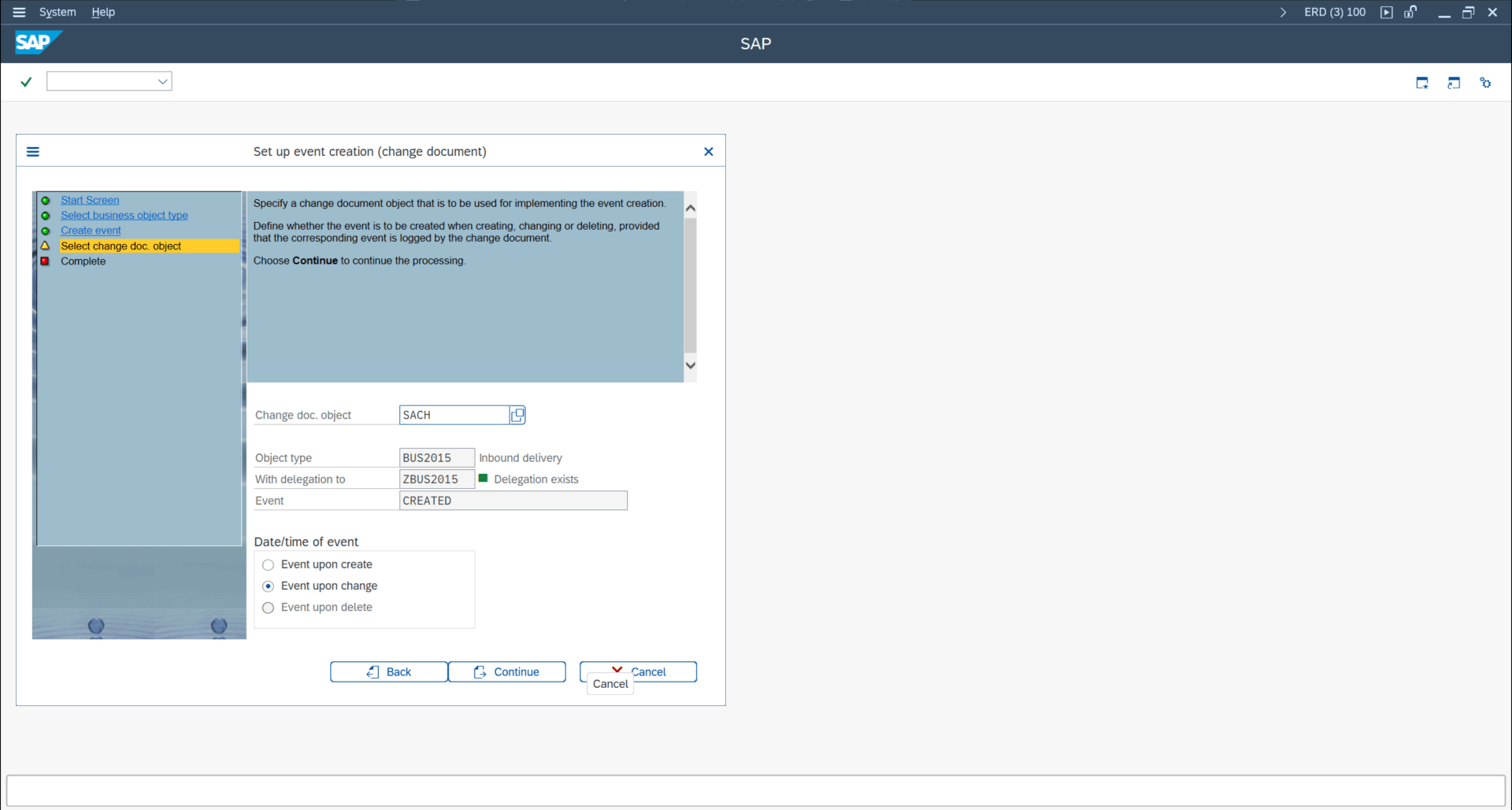

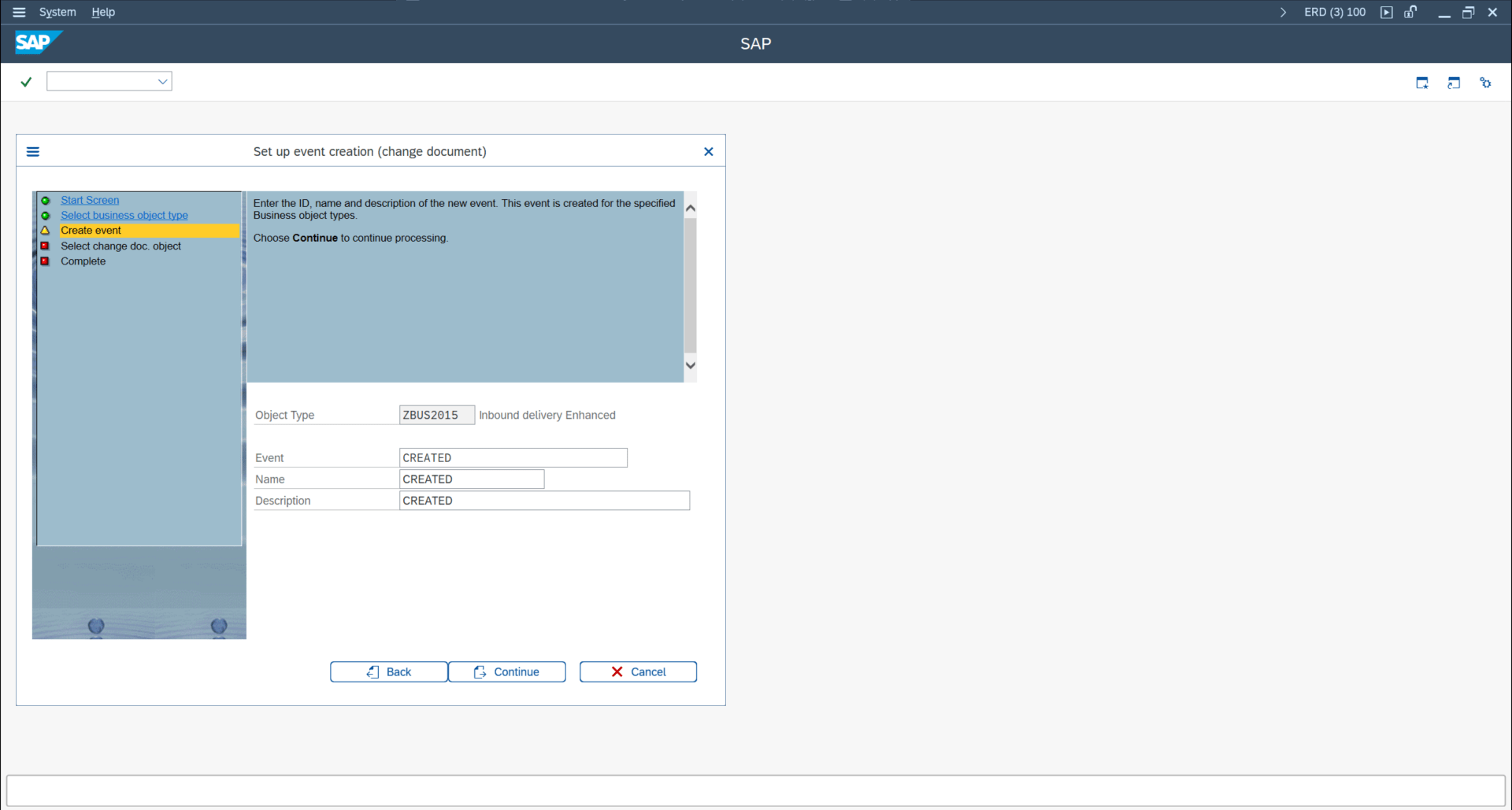

1. SWU_EWCD 2. SWU_EWCD (cont.) 3. SWU_EWCD result 4. SWO1 subtype 5. SWEC linkage 6. SWEC detail 7. User Exit (CMOD) 8. BAdI example

← Prev Next →

Authorization and Global Control Flags SAP GUI

Release 9.32510/SP12 adds global controls:

• ACI_AUTH_GLOBAL_CP_WRITE for CP write authorization override
• ACI_AUTH_GLOBAL_IDOC_PORT for IDoc port authorization override

Maintain global constants in /ASADEV/ACI_PART and values in /ASADEV/ACI_PAR.
