Connect SAP systems to AWS

Why using ASAPIO?

ASAPIO enables SAP systems for event-driven connectivity, with many platforms and application.
Unlike many other solutions, ASAPIO uses SAP application layer integration instead of a database-only/CDC integration.
ASAPIO Add-on detects when and which data exactly is being created or changed by SAP applications, and allows to send out that data as single messages in real-time, or even in batch-mode.
Benefits of using ASAPIO for your data and process integration with AWS and other platforms or applications:

  • Native connectivity with SAP application layer
  • Low-code and no-code interface creation
  • Lowest performance impact
  • Full control of data and workload on the SAP server
  • No separate server required

Architecture

ASAPIO is an SAP Add-on, which is installed directly into the supported SAP systems and enables them for a direct connectivity with the AWS services. No middleware or iPaaS systems are required.


Getting started

The following sections explain how to connect SAP systems with ASAPIO Integration Add-on to Amazon® Web Services (AWS).

Supported AWS services

Required skills to perform the settings: familiarity with the AWS services in scope, e.g. in terms of initial configuration and use.

An Amazon® Web Services (AWS) account is required, with a subscription to at least one or more of the following services:

Service Billable? Mandatory?
Amazon EventBridge Yes Optional
Amazon SNS (Simple Notification Service) Yes Optional
Amazon Kinesis Yes Optional
Amazon S3 Yes Optional

Further info on AWS services

There is extensive documentation out there to get you started on how to set-up the required Amazon services for ASAPIO. We collected some of them for your convience.

Please note that the following sections contains links to external websites of Amazon and other third parties, on whose contents we have no influence. Therefore, we cannot assume any liability for the external contents.

EventBridge

The following tutorials help you explore the features of EventBridge and how to use them.

Amazon SNS

These links help you become more familiar with Amazon SNS by showing you how to manage topics, subscriptions, and messages using the Amazon SNS console.

Amazon S3

Find help and tutorials on how to set-up S3 buckets to store data received from ASAPIO at Get Started with S3

Amazon Kinesis

ASAPIO supports connecting to Amazon Kinesis Data streams.

Please follow the Developer Guide on info how to set-up the services.

Getting-started tutorials:



Pre-requisites

Pre-requisites for the SAP system

Please see Installation/ for infos on how to download and install the components into your SAP systems.

Please also make sure you have the required roles and authorizations for the SAP system to configure the ASAPIO Add-on (please see Roles and authorizations)

The following ASAPIO components are required:

Add-on/component name Type
ASAPIO Integration Add-on – Framework Base component (required)
ASAPIO Integration Add-on – Connector for AWS Additional package

Pre-requisites for the AWS services in scope

IAM users and roles/access privileges

Warning: do not use root user, this is not required – use a dedicated and restricted user, as explained below.

Please create a dedicated IAM user for each service that is used and also create a limited policy to restrict access of that user to that single service and for publishing events.
Necessary actions to publish events are:

Service Action
Amazon EventBridge events:PutEvents
Amazon SNS (Simple Notification Service) Publish
Amazon Kinesis PutRecord and PutRecords
Amazon S3 PutObject

When creating users and policies please adhere to the principle of least privilege, as described at https://docs.aws.amazon.com/IAM/latest/UserGuide/best-practices.html#grant-least-privilege.

You can find further info on access control at:
https://docs.aws.amazon.com/sns/latest/dg/sns-authentication-and-access-control.html
https://docs.aws.amazon.com/eventbridge/latest/userguide/eb-iam.html
https://docs.aws.amazon.com/streams/latest/dev/security-best-practices.html
https://docs.aws.amazon.com/AmazonS3/latest/userguide/s3-access-control.html

Key generation


Recommendation: Create specific users in IAM without access to the AWS managment console to publish events into the services that is used.  This user should only be used by the SAP system to publish the configured events.
The access key id is then configured in the Default Values of the connection (also refer to Set-up authentication) and the access key secret is stored in the SAP Secure Store. Check out this link to find a guide how to use SAP Secure Store: Add certificates to trust store.

Data storage, sensitive data


ASAPIO does not control the kind of data which is sent as event message payload or metadata, therefore per default no sensitive data (as per definition of EU GDPR and applicable German laws and regulations) is required to be stored or transmitted.

Please make sure that topics, queues, buckets and data streams are only accessible to the users/systems of the use case.
Customer data does not have to be stored anywhere in the configuration.

Set-up connectivity



Please make sure you have the required roles and authorizations for the SAP system to configure the ASAPIO Add-on (please see Roles and_authorizations)

Typical time required to complete this configuration: 1 hour

To establish connectivity with services on AWS platform, please proceed with the following activities and refer to the specific documentation articles please.

  1. Create RFC destinations to Amazon platform in SAP system settings
  2. Set-up connection instance to Amazon platform in ASAPIO Integration Add-on
  3. Endpoint configuration to set additional connection parameters
  4. Configure example outbound message for a simple example to test the connectivity

Create RFC destinations

Create RFC destination for messaging endpoints

Create a new RFC destination of type “G” (HTTP Connection to External Server).

  • Transaction: SM59
  • Create new destination of type “G”
  • Specify Target Host: endpoint of the service to connect to

Add the certificates for the created destinations to the certificate list selected in tab Logon & Security:

Ein Bild, das Text enthält. Automatisch generierte Beschreibung

Add Certificates to Trust Store

  • Transaction: STRUST
  • Select Certificate List as used in RFC destination created above
  • Click button Import certificate (1)
  • Click button Add to Certificate List (2)

Set-up connection instance

Create the connection instance customizing that ties together the RFC destination created earlier and the cloud connector type:

  • Transaction: SPRO
  • Goto ASAPIO Cloud Integrator – Connection and Replication Object Customizing
  • Or go directly to transaction: /ASADEV/68000202
  • Add New Entry and specify:
    • Field Instance: a name for this connection in
    • Field RFC Dest. (Upload): the RFC destination created for the messaging endpoint
    • Field ISO Code: the code page to use
    • Field Cloud Type: AWS (or the name you chose when adding the connector)

Set-up Authentication

The AWS connector uses the Signature Version 4 (SigV4) signing process for authentication.

For this process you have to specify the following values:

Default Attribute Default Attribute Value
AWS_ACCESS_KEY part of the credentials to access the service
AWS_REGION AWS region the service runs in
AWS_SERVICE which service you connect to (possible values are: sns, kinesis, s3 and events)



Save Secret in SAP Secure Store

Enter the secret access key in the SAP Secure Store:

  • Transaction: SPRO
  • Goto ASAPIO Cloud Integrator – Set the cloud connection password
  • Or go directly to transaction: /ASADEV/SCI_TPW
  • Select the create Cloud Instance
  • Enter the secret access key in the Cloud Shared Secret field and execute

Set-up outbound messaging

For outbound messaging, you can use and even combine the following methods:

  • Simple Notifications
  • Message Builder (Generic View Generator)
  • IDoc capturing
  • Custom-built triggers and extractors

Pre-requisite for all methods is to create a message type, which will be used throughout the configuration process.

The following articles explain the individual possibilities.

Create a new Message Type

Create Message Type

Note:

In the example below, we use the Sales Order (BUS2032) event.

Please use suitable data for your use-case as required.

For each object to be sent via ACI you have to create a message type:

  • Transaction: WE81
  • Add New Entry and specify:
    • Message Type: unique name for the integration
    • Description: description of the purpose

Ein Bild, das Text enthält. Automatisch generierte Beschreibung

Activate Message Type

  • Transaction: BD50
  • Add New Entry and specify:
    • Message Type: the created message type
    • Active: tick the checkbox

Ein Bild, das Text enthält. Automatisch generierte Beschreibung

Simple Notifications

Create Outbound Object configuration

  • Transaction: SPRO
  • Goto ASAPIO Cloud Integrator – Connection and Replication Object Customizing
  • Or go directly to transaction: /ASADEV/68000202
  • Select the created Connection
  • Go to section Outbound Objects
  • Add New Entry and specify:
    • Object: name of the outbound configuration
    • Extraction Func. Module: /ASADEV/ACI_SIMPLE_NOTIFY
    • Message Type: the created message type
    • Load Type: Incremental Load
    • Trace: activate for testing purposes
    • Response Function: /ASADEV/ACI_AWS_RESP_HANDLER

This example uses the built-in notification event.

Set-up target endpoint in ‘Header Attributes’

Configure the endpoint to send the events to. This is different depending on the AWS service you connect to:

Amazon EventBridge endpoint

The values you can specify for the Amazon EventBridge are used for routing in the EventBridge service. They are all optional depending on your specific use case. Please refer to the EventBridge documentation.

  • Go to section Header Attributes
  • Add New Entry and specify the following attributes:

Header Attribute

Header Attribute Value

AWS_EVENTBRIDGE_DETAIL_TYPE Optional. Describes the event
AWS_EVENTBRIDGE_ENDPOINT_ID Optional. Specifies an endpoint in AWS
AWS_EVENTBRIDGE_EVENT_BUS_NAME Optional. If not given the default event bus is used.
AWS_EVENTBRIDGE_SOURCE Optional. The source of the event

Amazon SNS endpoint

  • Go to section Header Attributes
  • Add New Entry and specify the following attributes:

Header Attribute

Header Attribute Value

AWS_TOPIC Topic to send data to
AWS_TOPIC_OWNER Account ID of the topic owner

Amazon Kinesis endpoint

Note:
Only data streams are supported

  • Go to section Header Attributes
  • Add New Entry and specify the following attributes:

Header Attribute

Header Attribute Value

AWS_KINESIS_STREAM_NAME Name of the data stream

Amazon S3 endpoint

  • Go to section Header Attributes
  • Add New Entry and specify the following attributes:

Header Attribute

Header Attribute Value

AWS_S3_BUCKET

Name of the S3 bucket

Set up ‘Business Object Event Linkage’

Link the configuration of the outbound object to a Business Object event:

  • Transaction: SWE2
  • Add New Entry and specify:
    • Object Category: BO BOR Object Type
    • Object Type: the Business Object Type sending the event
    • Event: the event to react to
    • Receiver Type: the message type of the outbound object (this is the link to the Addon configuration)
    • Receiver Call: Function Module
    • Receiver Function Module: /ASADEV/ACI_EVENTS_TRIGGER
    • Linkage Activated: tick the checkbox

Ein Bild, das Text enthält. Automatisch generierte Beschreibung

Test the outbound event creation

In the example above, please pick any test sales order in transaction /nVA02 and force a change event, e.g. by changing the requested delivery date on header level.

Message Builder (Generic View Extractor)

The message builder is based on database views. It can extract and format data based on the configured database view. The formatting tries to nest the data based on the used database tables.

Create database view

For the data events also configure the DB view that is used to define the extraction:

  • Transaction: SE11 (for SAP ERP or S/4HANA on-prem deployments with SAP GUI access)
  • Alternatively, you can use Eclipse with ABAP Development Tools, or the SAP Fiori App “Create Custom CDS Views” to create a database view if you have this app available in SAP S/4HANA.

Example: Material master view (e.g. to be used for Material Master (BUS1001) change events)

Create Outbound Object configuration

  • Transaction: SPRO
  • Goto ASAPIO Cloud Integrator – Connection and Replication Object Customizing
  • Or go directly to transaction: /ASADEV/68000202
  • Select the created Connection
  • Go to section Outbound Objects
  • Add New Entry and specify:
    • Object: name of the outbound configuration
    • Extraction Func. Module: /ASADEV/ACI_GEN_VIEW_EXTRACTOR
    • Message Type: the created message type
    • Load Type: Incremental Load
    • Trace: activate for testing purposes
    • Formatting Function: /ASADEV/ACI_GEN_VIEW_FORMATTER
    • Extraction View Name: name of the DB view

Screenshot of the outbount object configuration

Set-up ‘Header Attributes’

Header attributes change based on the AWS service, please see section endpoint configuration for the correct values.

Please note the header attributes can be endpoint/platform specific. Here are examples:

Header attribute Header attribute value Example required for Connector
S3_BUCKET S3 bucket the data is stored in jze-test-bucket AWS S3
ACI_ADD_LOGSYS To add the logical system to the top level of the payload.

Only works for the generic view extractors / formatters!

X All connectors – optional

Set up ‘Business Object Event Linkage’

Link the configuration of the outbound object to a Business Object event:

  • Transaction: SWE2
  • Add New Entry and specify:
    • Object Category: BO BOR Object Type
    • Object Type: the Business Object Type sending the event
    • Event: the event to react to
    • Receiver Type: the message type of the outbound object (this is the link to the Addon configuration)
    • Receiver Call: Function Module
    • Receiver Function Module: /ASADEV/ACI_EVENTS_TRIGGER
    • Linkage Activated: tick the checkbox

Ein Bild, das Text enthält. Automatisch generierte Beschreibung

Test the outbound event creation

In the example above, please pick any test sales order in transaction /nVA02 and force a change event, e.g. by changing the requested delivery date on header level.

Configure Payload changes

The new versions of the generic view formatters support more control over the payload via configuration.

There are three different possibilities:

  • Rename table: renaming for the tables involved
  • Rename field: better and more JSON friendly names for the fields
  • Append a new field: e.g. a custom computed field or some additional fixed values

Each option is described below.

To rename a table you:

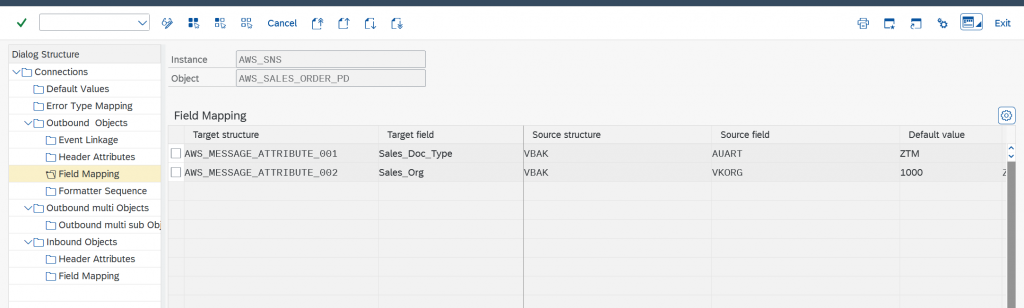

  • Go to Field Mapping, add New Entry and specify:
    • Target structure: TABLE_RENAME
    • Target field: the new name as it should appear in the JSON (e.g. MaterialMaster)
    • Source structure: the original name of the table (e.g. MARA)

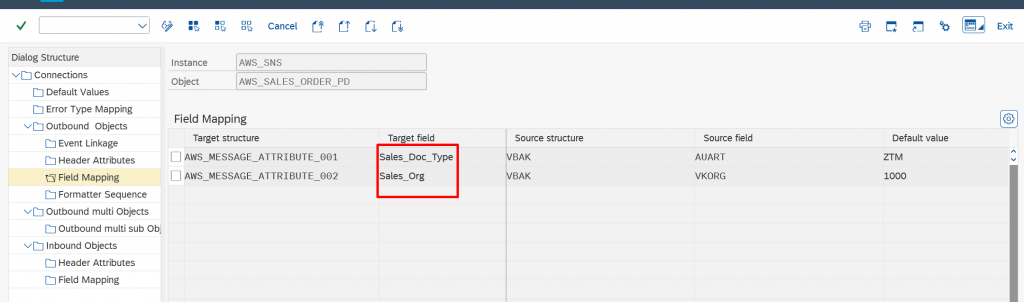

To rename a field you:

  • Go to Field Mapping, add New Entry and specify:
    • Target structure: FIELD_RENAME
    • Target field: the new name as it should appear in the JSON (e.g. ChangeDate)
    • Source field: the original name of the field (e.g. ERSDA)

To append a new field you:

  • Go to Field Mapping, add New Entry and specify:
    • Target structure: APPEND_<tablename> (e.g. APPEND_MAKT); the table name is used to determine the level where the new field is added to the JSON
    • Target field: the name of the field as it should appear in the JSON (e.g. CustomField)
    • Default value: if the field should be set to a fixed value

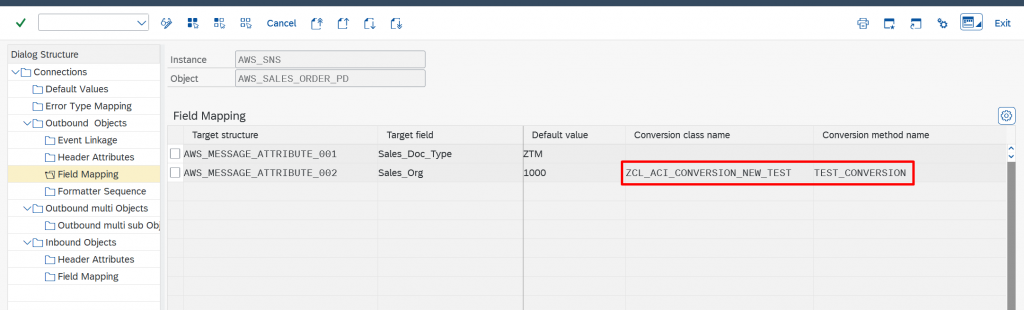

    • Conversion class/method name: name of a class and method used to determine the value of the field; the class must implement interface /ASADEV/ACI_CONVER_IF

Set-up Packed Load (split large data)

Create Outbound Object configuration

  • Transaction: SPRO
  • Goto ASAPIO Cloud Integrator – Connection and Replication Object Customizing
  • Or go directly to transaction: /ASADEV/68000202
  • Select the created Connection
  • Go to section Outbound Objects
  • Add New Entry and specify:
    • Object: name of the outbound configuration
    • Extraction Func. Module: /ASADEV/ACI_GEN_VIEW_EXT_PACK
    • Message Type: the created message type(optional)
    • Load Type: Packed Load
    • Trace: activate for testing purposes
    • Formatting Function: /ASADEV/ACI_GEN_VIEW_FORMATTER (depending on your use case)

Create database view

Note

Please also refer to chapter 4.6.3.1

For the data events also configure the DB view that is used to define the extraction:

  • Transaction: SE11 (for SAP ERP or S/4HANA on-prem deployments with SAP GUI access)
  • Alternatively, you can use Eclipse with ABAP Development Tools, or the SAP Fiori App “Create Custom CDS Views” to create a database view if you have this app available in SAP S/4HANA.

Example: Material master view

Example

Set-up ‘Header Attributes’

  • Go to section Header Attributes of the outbound object created previously
  • Add New Entry and specify the header attributes and values
Header attribute Header attribute value Example
ACI_PACK_BDCP_COMMIT Flag for changepointer creation.

If set, changepointers will be generated for every entry.

IF this flag is set, a messagetype has to be maintained in the outbound object.

Caution:

This may heavily impact performance.

X
ACI_PACK_TABLE Name of the table to take the keyfields from. This is typically different then the db view specified in ‘ACI_VIEW‘ as we only want to build packages based on the header object and the db view typically contains sub-objects as well  MARA
ACI_PACK_RETRY_TIME Time in seconds. This is the duration in which the framework will attempt to get a new resource from the servergroup 300
ACI_PACK_WHERE_COND Condition that is applied to the table defined in ‘ACI_PACK_TABLE
ACI_PACK_SIZE Number of entries to send 500
ACI_PACK_KEY_LENGTH Length of the key to use from the ACI_PACK_TABLE (e.g. MANDT + MATNR) 13
ACI_VIEW name of a SAP database view that is key compatible with the ACI_PACK_TABLE Z_MARM_TEST

Ein Bild, das Tisch enthält. Automatisch generierte Beschreibung

Execute the initial load

Warning

depending on the amount of data this can stress the SAP system servers immensely.

Please always consult with your basis team for the correct server group to use!

  • Transaction: /ASADEV/ACI
  • Select the Connection and hit enter
  • Select Upload Type: P
  • Select Replication Object
  • Select a Servergroup (this is mandatory)

Ein Bild, das Text enthält. Automatisch generierte Beschreibung

Scroll to Top
