Microsoft Fabric Connector

Overview

You can connect SAP systems with Microsoft Fabric.

Required components of ASAPIO Integration Add-ons:

Pre-requisites for Microsoft® Fabric® services

Note
The following settings are specific to the connector for Microsoft® Fabric®.

A Microsoft® Fabric® and Azure® account is required, with access to one of the following services:

• Lakehouse

Steps required to establish connectivity

To establish connectivity with the Microsoft Fabric platform, please proceed with the following activities and refer to the specific documentation articles please.

1. Create RFC destinations to Microsoft Fabric platform in SAP system settings
2. Set-up connection instance to Microsoft Fabric platform in ASAPIO Integration Add-on
3. Endpoint configuration (Lakehouse)
   Please see article “Authentication options” for an overview of supported authentication options for the different endpoints.
4. See article example outbound message for a simple example to test the connectivity

Predefined Content or Custom Data Products

You can either use predefined content from the data catalog or create your custom data products. The predefined content can either be used directly or as a template for further customization.

The chapters Create RFC Destination and Set-up Connection Instance are required for all approaches. After completing them, either go through the Predefined Content with Data Catalog or the Custom Data Products chapter.

Authentication options

The Fabric service offer OAuth via Entra ID as authorization

To learn how to configure the service, you can see in the specific article.

Create RFC destinations

Create RFC destination for messaging endpoints

Create a new RFC destination of type “G” (HTTP Connection to External Server).

• Transaction: SM59
• Create new destination of type “G”
• Specify Target Host: ‘’onelake.dfs.fabric.microsoft.com’’

Add the certificates for the created destinations to the certificate list selected in tab Logon & Security:

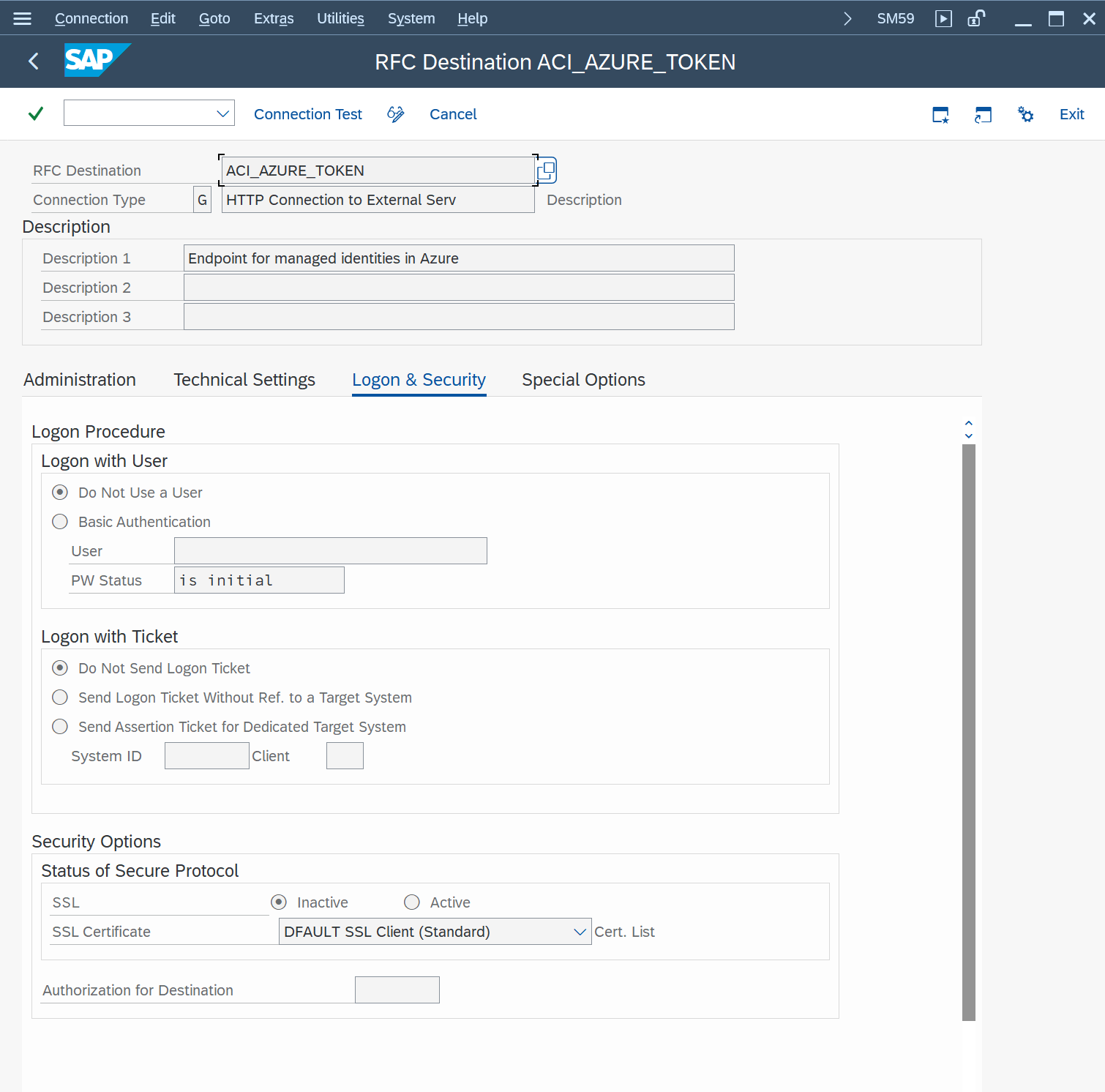

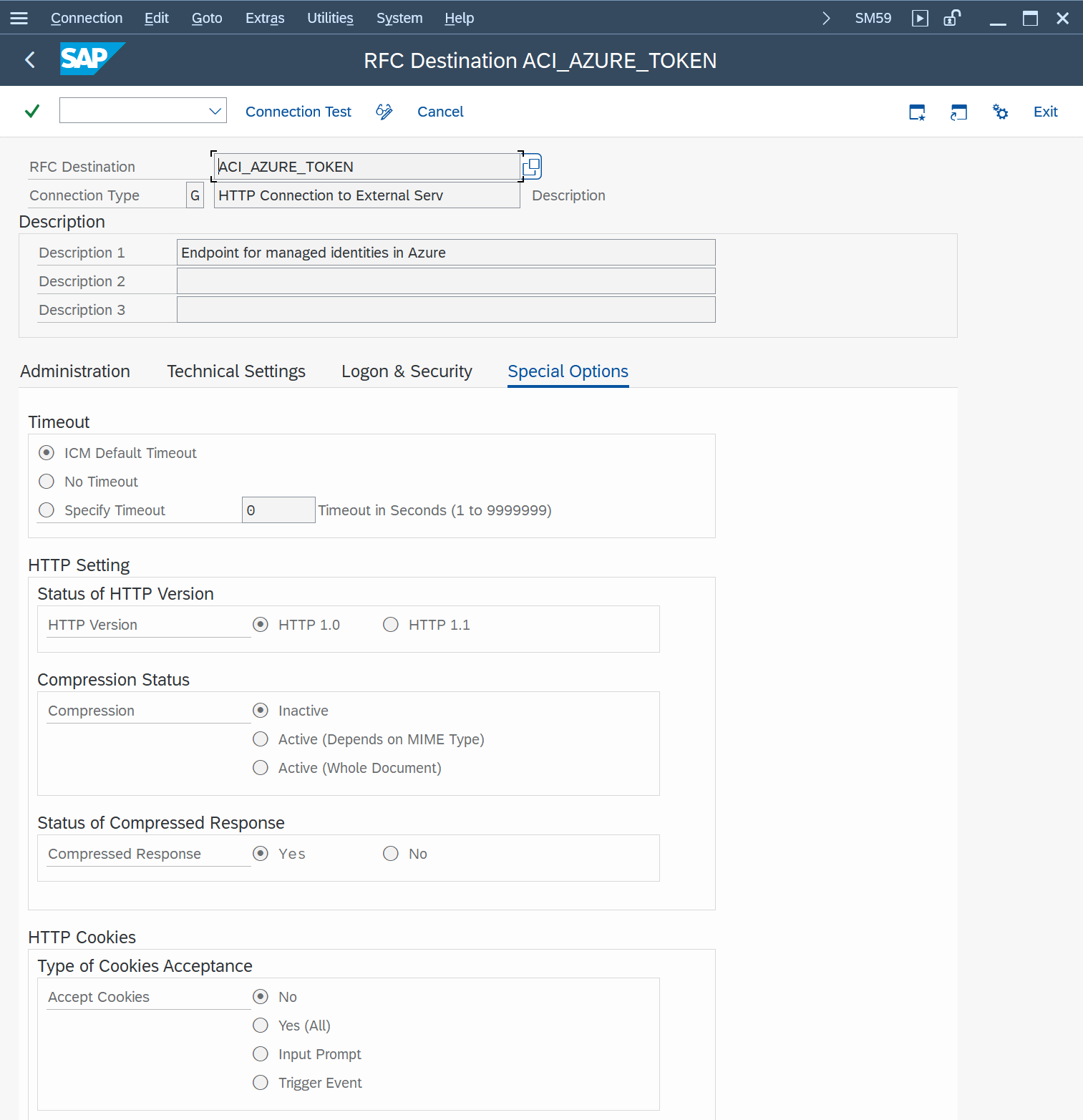

Create RFC destination for OAuth Authentication

To use OAuth authentication with Entra ID, please configure a RFC destination specifying the OAuth endpoint

• Transaction: SM59
• Create new destination of type “G”
• Specify Target Host: login.microsoftonline.com
• Specify Path Prefix: <tenantID>/oauth2/token

Add the certificates for the created destinations to the certificate list selected in tab Logon & Security:

Add Certificates to Trust Store

• Transaction: STRUST
• Select Certificate List as used in RFC destination created above
• Click button Import certificate (1)
• Click button Add to Certificate List (2)

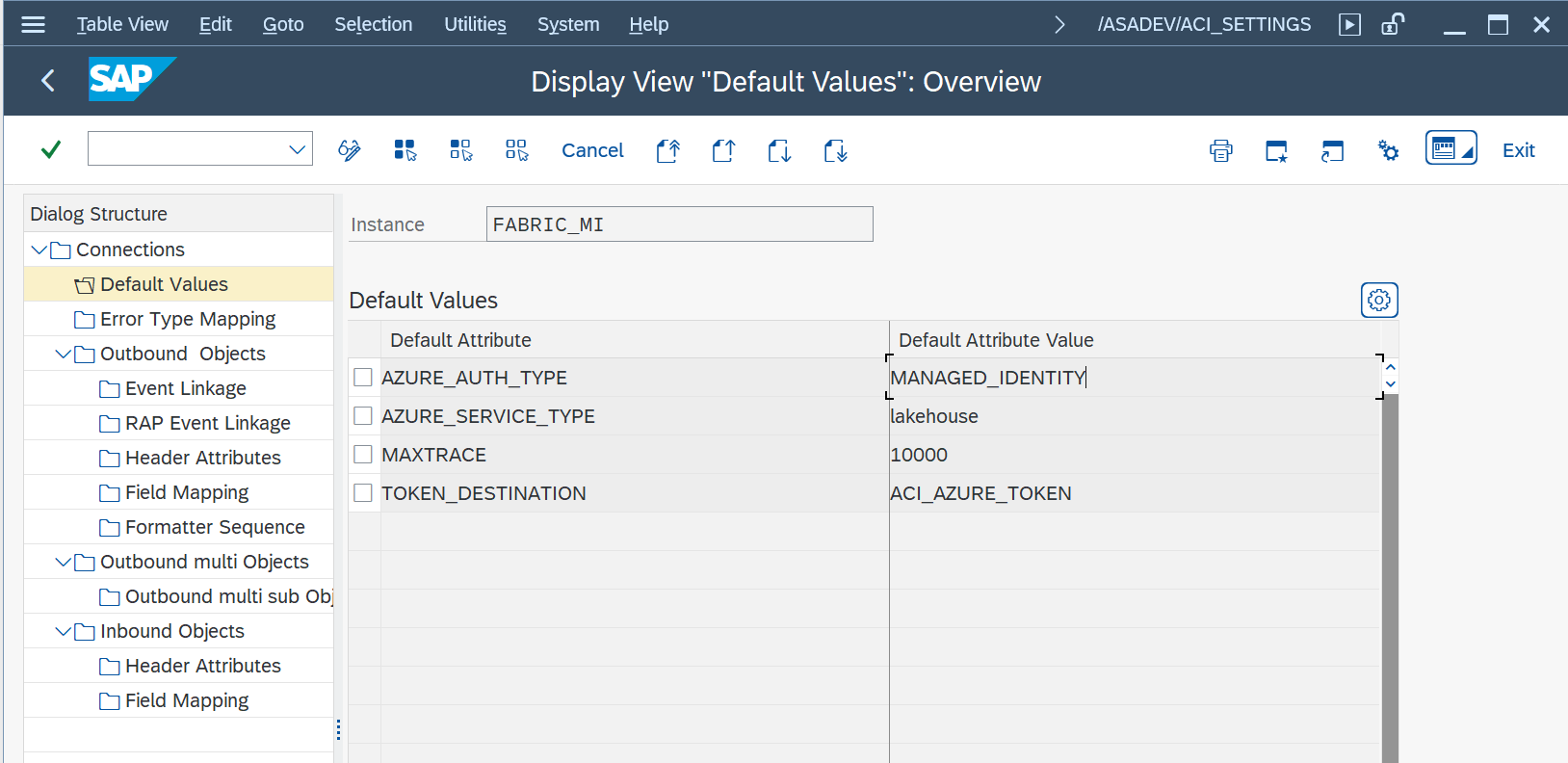

Set-up connection instance

Create the connection instance customizing that ties together the RFC destination created earlier and the cloud connector type:

• Transaction: SPRO
• Goto ASAPIO Cloud Integrator – Connection and Replication Object Customizing
• Or go directly to transaction: /ASADEV/68000202
• Add New Entry and specify:
  • Field Instance: a name for this connection in
  • Field RFC Dest. (Upload): the RFC destination create for the messaging endpoint (please see article Create RFC destinations)
  • Field ISO Code: the code page to use
  • Field Cloud Type: AZURE (or the name you chose when adding the connector)

Set-up Error Type Mapping

Create an entry in section Error Type Mapping and specify at least the following mapping:

Save Secret in SAP Secure Store

For OAuth authentication, a secret has to be stored in the systems’ SAP Secure Store.

• Client Secretfor OAuth

Enter the secret in the SAP Secure Store:

• Transaction: SPRO
• GotoASAPIO Cloud Integrator – Set the cloud connection password
• Or go directly to transaction:/ASADEV/SCI_TPW
• Select the createCloud Instance
• Enter the client secret in theCloud Shared Secret field and execute

Predefined Content with Data Catalog

The Data Catalog for Fabric provides a set of predefined message payloads based on SAP S/4HANA CDS views, as well as a preconfigured interfaces for Integration Add-on. This eliminates the need for users to perform significant configuration tasks, allowing for a rapid start and the execution of tests.

Predefined content

This overview details the predefined content included. It also provides an instance (FABRIC) comprising several replication objects and the corresponding payload designs.

Predefined interfaces (‘Objects’)

Predefined payloads

The following list of pre-defined objects is currently provided, for Fabric connector only, and subject to change / extension.
Payload design versions 2.0 and higher are based on CDS views and therefore require SAP S/4HANA.

The Payload Designs for SAP ECC:

Custom Data Products

Send outbound message

Create Message Type

Example: in the example below, we use the Material Change event. Please choose any other suitable example if required.

For each object to be sent via ACI you have to create a message type:

• Transaction: WE81
• Add New Entry and specify:
  • Message Type: unique name for the integration

Description: description of the purpose

Activate Message Type

The created message type has to be activated:

• Transaction: BD50
• Add New Entryand specify:
  • Message Type: the created message type
  • Active: tick the checkbox

Create Payload Design

Go to the ASAPIO Payload Designer with the transaction /asadev/design. There you can create a new payload using Create payload (Shift+F4).

• Now create a payload with the following criteria:

• • View: Payload name
  • Application: Data modell application
  • Version: Version of payload

Push the join builder button to add your table, DB view or CDS view:

Use the button Insert table (Shift+F1).

Go back and save.

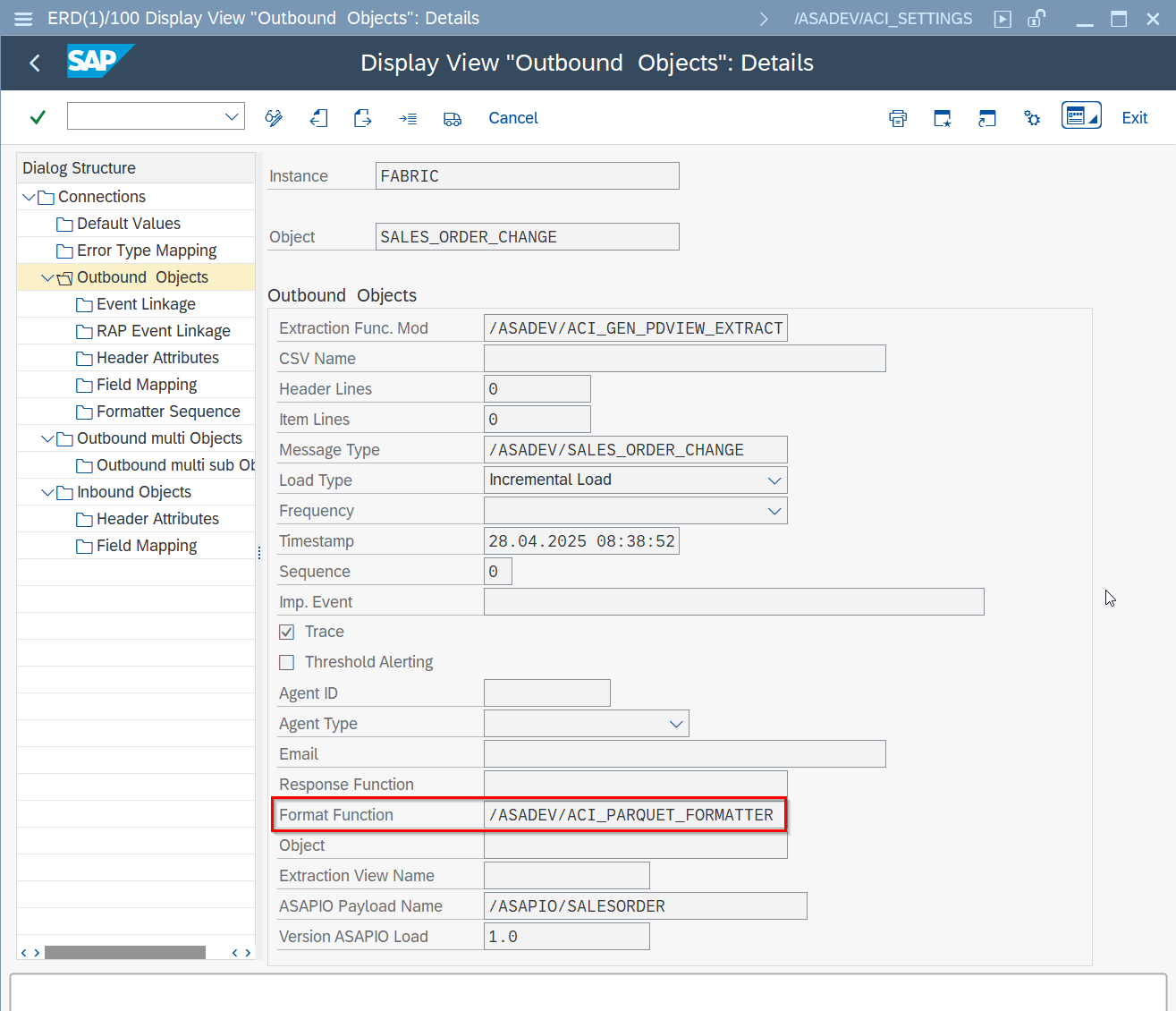

Create Outbound Object configuration

• Transaction: SPRO
• Goto ASAPIO Cloud Integrator – Connection and Replication Object Customizing
• Or go directly to transaction: /ASADEV/68000202
• Select the created Connection
• Go to section Outbound Objects
• Add New Entry and specify:
  • Object: name of the outbound configuration
  • Extraction Func. Module: /ASADEV/ACI_GEN_PDVIEW_EXTRACT
  • File Name: name with file format
  • Message Type: the created message type
  • Load Type: Incremental Load
  • Trace: activate for testing purposes
  • Payload View Name: name of payload design
  • Payload View Version: version of payload design

Set up ‘Business Object Event Linkage’

Link the configuration of the outbound object to a Business Object event:

• Transaction: SWE2 or got to Event Linkage on the left side
• Add New Entry and specify:
  • Object Category: BO BOR Object Type
  • Object Type: Business Object Type sending the event
  • Event: the event to react to
  • Receiver Type: the message type of the outbound object (this is the link to the Addon configuration)
  • Receiver Call: Function Module
  • Receiver Function Module: /ASADEV/ACI_EVENTS_TRIGGER
  • Linkage Activated: tick the checkbox

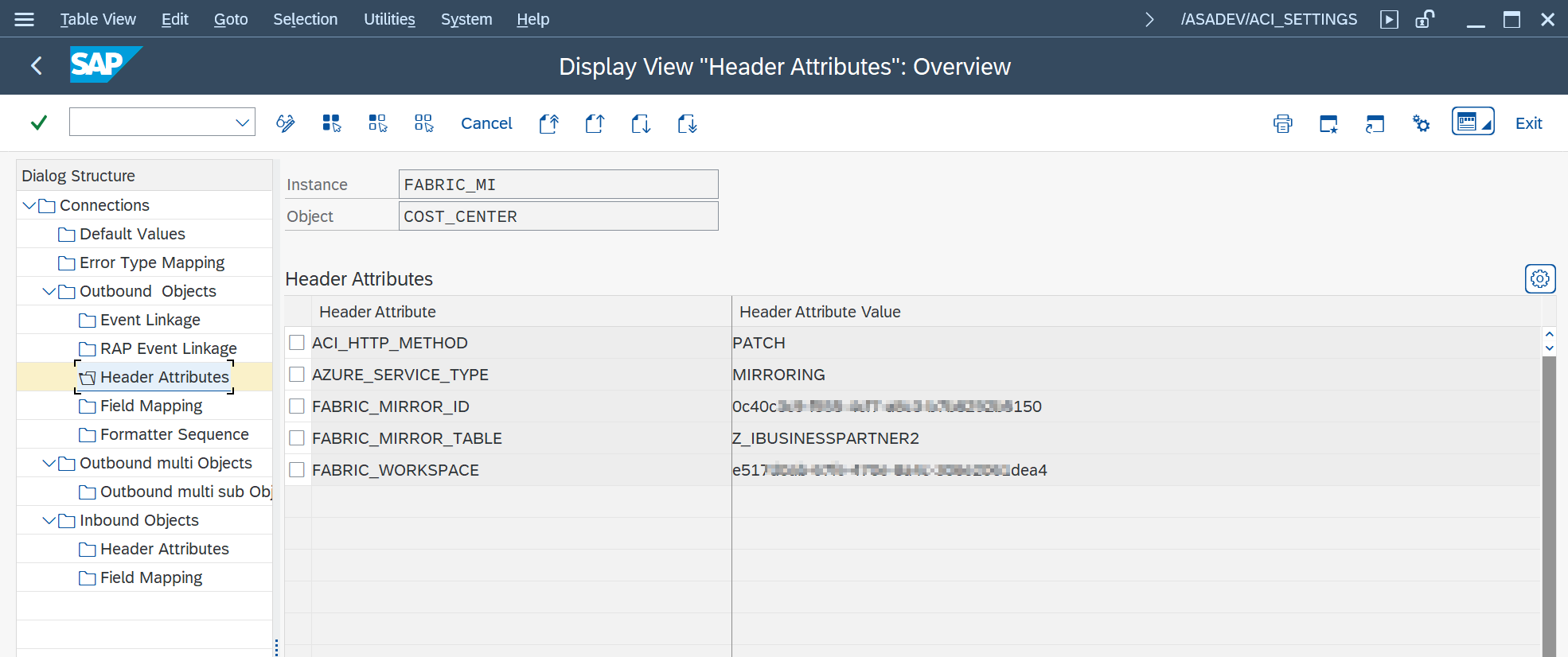

Set-up target endpoint in ‘Header Attributes’

Configure the Lakehouse endpoint:

• Go to section Header Attributes
• Add New Entry and specify:

Activating the change pointer information with header attribute (Optional)

Configure the change pointer info:

• Go to section Header Attributes
• Add New Entry and specify:

Information can be transferred from the change pointer to the payload.
The following information can be used:

Customize the change pointer information

Fields can be renamed or omitted:

• Go to section Field Mapping
• Add New Entry and specify:

Test the outbound event creation

In the example above, please pick any test sales order in transaction /nVA02 and force a change event, e.g. by changing the requested delivery date on header level.

Set-up Packed Load/Initial load (split large data)

Create payload

Note
E.g. Payload Design created in transaction /ASADEV/DESIGN

Create Outbound Object configuration

• Transaction: SPRO
• Goto ASAPIO Cloud Integrator – Connection and Replication Object Customizing
• Or go directly to transaction: /ASADEV/68000202
• Select the created Connection
• Go to section Outbound Objects
• Add New Entry and specify:
  • Object: name of the outbound configuration
  • Extraction Func. Module: /ASADEV/ACI_GEN_PDVIEW_EXTRACT
  • File Name: name with file format
  • Message Type: the created message type (optional)
  • Load Type: Packed Load
  • Trace: activate for testing purposes
  • Payload View Name: name of payload design
  • Payload View Version: version of payload design

Set-up ‘Header Attributes’

• Go to section Header Attributes of the outbound object created previously
• Add New Entry and specify the header attributes and values

Execute the initial load

Warning
depending on the amount of data this can stress the SAP system servers immensely.
Please always consult with your basis team for the correct server group to use!

• Transaction: /ASADEV/ACI
• Select the Connection and hit enter
• Select Upload Type: P
• Select Replication Object
• Select a Servergroup (this is mandatory)

Monitoring, traces and logs

ASAPIO Integration Add-on Monitor allows for monitoring all outbound and inbound messages of the Add-on, with the following features:

1. View statistical and graphical analysis of data volume, times, and errors
2. Logging of HTTP return codes and messages
3. Logging of requests (RAW data) can be switched on/off in application customizing (IMG)
4. Retransmission control through SAP change pointers (to ensure event delivery) if errors occur
5. Notification and/or escalation to system administrators (or through SAP Workflow) if errors occur

You can find detailed information here: Monitoring Documentation

Import CSV files into Lakehouse

A generic Fabric Notebook can be utilized to facilitate the automatic import of CSV files to a Lakehouse database.

Create a Fabric Notebook

Create a new notebook in your Lakehouse and use the example code from below.

• Go to your Fabric Workspace
• Use New and Import notebook
• Upload the ASAPIO Notebook file

Configure the Notebook

To utilize the notebook, it is first necessary to personalize the file name, the path to the files and the path to the database.

Schedule the Notebook as a job

You can schedule the notebook as a job, e.g. hourly.

• Go to tab Run and use Schedule
• Configure to your plan and use Apply

Example coding:

from pyspark.sql import SparkSession
from delta.tables import DeltaTable
import re

# Initialize a SparkSession with Hive support enabled.
spark = SparkSession.builder.appName("LakehouseUpdater").enableHiveSupport().getOrCreate()

# Specify the path to the CSV files.
path_to_csv_files = "abfss://AsapioDemoWorkspace@onelake.dfs.fabric.microsoft.com/AsapioDemoLakehouse.Lakehouse/Files/SalesOrder"

# Specify the path to the Delta table.
path_to_delta_table = "abfss://AsapioDemoWorkspace@onelake.dfs.fabric.microsoft.com/AsapioDemoLakehouse.Lakehouse/Tables/aci_sales_order"

# Compile a regex pattern to filter the file names.
pattern = re.compile(r'aci_sales_order_\d{8}_\d{6}_[a-f0-9]{6}\.csv')

# Define the pattern with groups for sorting based on date and time.
pattern_with_groups = re.compile(r'aci_sales_order_(\d{8})_(\d{6})_([a-f0-9]{6})\.csv')

# Retrieve a list of file names.
files = mssparkutils.fs.ls(path_to_csv_files)

# Initialize a list to hold filtered file names.
filtered_files = []

# Iterate through the file list and add names that match the pattern to the list.
for file in files:
if pattern.match(file.name):
filtered_files.append(file.name)

# Sort the file list based on the defined pattern.
filtered_files.sort(key=lambda x: pattern_with_groups.match(x).groups())

# Create a DeltaTable object for the specified Delta table.
delta_table = DeltaTable.forPath(spark, path_to_delta_table)

# Loop over each file in the filtered list.
for file in files:

# Load the content of the file into an RDD.
rdd = spark.sparkContext.textFile(file.path)
# Retrieve the first line which contains field names.
first_line = rdd.first()

# Extract field names from the first line.
_, field_names_str = first_line.split("=")
field_names = field_names_str.split(",")

# Construct a condition format for merging data based on field names.
condition_format = " AND ".join([f"old_data.{field} = new_data.{field}" for field in field_names])

# Create a new RDD without the first line.
rdd_without_first_line = rdd.filter(lambda line: line != first_line)

# Convert the RDD to a DataFrame, now that the non-CSV compliant first line is removed.
df = spark.read.csv(rdd_without_first_line, header=True, inferSchema=True)

# Perform a merge operation between the existing Delta table and the new data,
# updating existing records and inserting new ones as necessary.
(delta_table
.alias("old_data")
.merge(df.alias("new_data"), condition_format)
.whenMatchedUpdateAll()
.whenNotMatchedInsertAll()
.execute()
)

# Remove the processed file.
mssparkutils.fs.rm(file.path, True)
